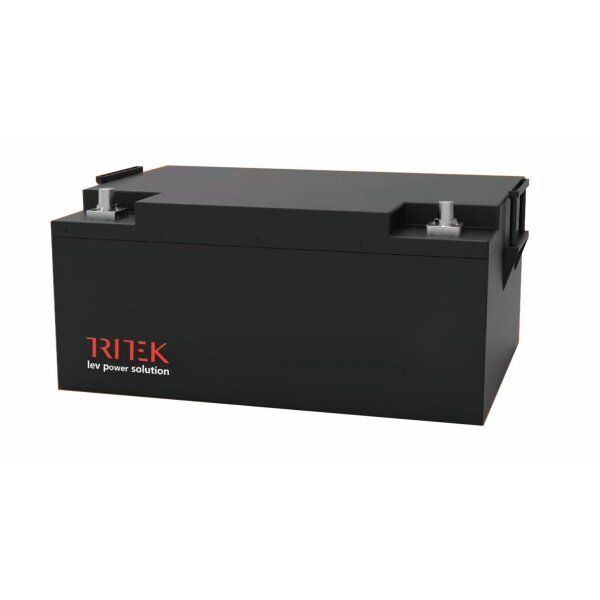

24V 5.2kWh Lithium Battery TP6130

Suitable for trucks, AGVs, golf carts, IP67, max cranking current 2000A

Additional information

Motor power range

Motor power range

Vehicle speed

25-45km/h

Battery Power

25.6V, 205Ah, 5248Wh

Cell configuration

8S1P

Standard charge current

100A

Peak charge current

150A

Standard discharge current

150A

Max continuous discharge current

205A

Peak discharge current

230~300A for 60S
300~800A for 5S
≥800A for 200mS

Case material

Cold-rolled steel

Size

510*345*220mm

Weight

42±0.5Kg

IP rating

IPX5

Discover more about 24V 5.2kWh Lithium Battery TP6130

Suitable for trucks, RVs, vans, campers, two-behind trailers, golf carts, marine, trolling motors, boats, AGVs, AMRs, off-grid, energy storage…

24v 7.2kwh lithium battery tp6131

📋Key Features

🚛2-in-1 dual-purpose use for both starting engines and deep-cycle applications: Serve as both starter battery and deep-cycle battery, delivers up to 1600A of cold cranking amps (CCA) for engine starts and supports 205A continuous discharge for running electronics, accessories, and daily operations.

🔌Power LED light, TV, fridge, microwave, air conditioner whole day

long lasting

❄️Automatic self-heating when the temperature is below 0℃, work temperature -40℃~60℃: All-season power perfect for RV owners, truck fleets, off-grid users, and marine applications operating in cold climates.

extreme temperature reliable power
📱GPS, Bluetooth, and 4G for real-time monitor & control via mobile App

🔗CAN & RS485 Communication

Aside from this product, we can provide customized battery packs according to the customer’s needs and specifications.

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>Customized Battery Pack<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<

4 good reasons

for choosing Tritek Battery for your electric mobility

选择我们的4大理由 定稿 06

An Intelligent battery with smart BMS, integrate with protocol applicable to the onboard applications, allowing you to communicate with the battery during riding.

选择我们的4大理由 定稿 03

A safe battery and full compliance with certificates in the lev industry, enabling you to use electric mobility worldwide with no restrictions.

选择我们的4大理由 定稿 18

We make every effort to supply sustainable power solutions. You can expect more than 500 cycles or 2.5 years shelf life.

选择我们的4大理由 定稿 21

We are your true battery partner because we care about efficient service. Our service center in Spain and future centers in Germany and the USA are on 24 hours standby for your convenience.
