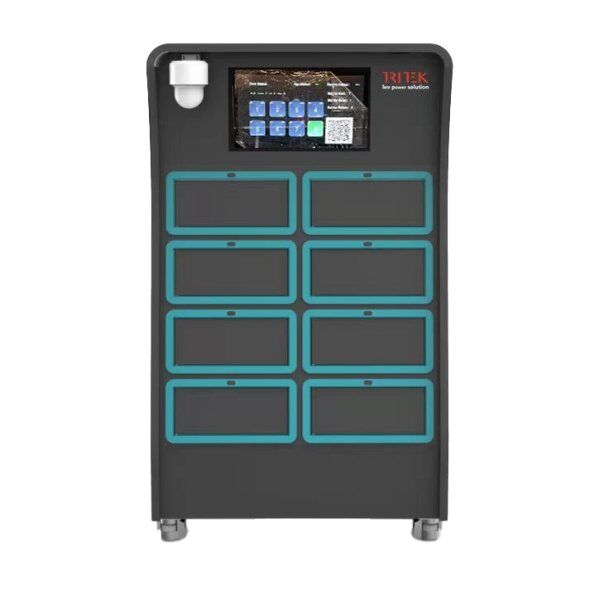

8 Slot Battery Swap Station

5s swapping, IP55 rating, OTA update, GPS&4G real-time tracking and management, automatically adjusts current &voltage.

Additional information

Number of slots

8

Rated input power

Rated input power

Input voltage range

Input voltage range

Output voltage

48V~54±0.3VDC

Output current

Output current

Communication

4G/GPS/Wifi

Communication with battery

Can-bus

Display screen

21 Inch

Single Slot empty size

W350mm*H125mm*D500mm

Cabinet size

W1060mm*H1800mm*D900mm

Operating ambient temperature

Operating ambient temperature

Weight

200KG

IP rating

IP55

Certification

Key device CE certification

Discover more about 8 Slot Battery Swap Station

❓Why choose Tritek’s battery swap station?

  • Independent Power Outputs – Each slot operates independently, ensuring no interference.
  • Superior Safety – Metal isolation and aerosol fire suppression meet New York fire standards.
  • Smart Charging – Automatically adjusts current & voltage to extend battery life.
  • Rapid Swapping – Fast APP response for quick battery swaps.
  • OTA Updates – Remote software updates for both station and batteries.
  • Real-Time Data – GPS & 4G transmission for real-time tracking and management.
  • Integrated Advertising – 21-inch screen for easy ad placement.
  • Outdoor Ready – IP55 rating for durable outdoor use.

🛡️Protection characteristics

  • Earth leakage protection
  • Over-current turn-off protection
  • Short-circuit turn-off protectin
  • Over-temperature turn-off protection
  • Emergency stop protection
  • Dust and waterproof
  • Lightning protection
  • Smoke feeling
  • Fire safety
  • Water flooding detection

🚀5s Battery-swap

  • Scan the QR code
  • Return the depleted battery
  • Retrieve the swappable fully-chargerd battery

battery swap station

Aside from this product, we can provide customized battery swap station according to the customer’s needs and specifications.

4 good reasons

for choosing Tritek Battery for your electric mobility

选择我们的4大理由 定稿 06

An Intelligent battery with smart BMS, integrate with protocol applicable to the onboard applications, allowing you to communicate with the battery during riding.

选择我们的4大理由 定稿 03

A safe battery and full compliance with certificates in the lev industry, enabling you to use electric mobility worldwide with no restrictions.

选择我们的4大理由 定稿 18

We make every effort to supply sustainable power solutions. You can expect more than 500 cycles or 2.5 years shelf life.

选择我们的4大理由 定稿 21

We are your true battery partner because we care about efficient service. Our service center in Spain and future centers in Germany and the USA are on 24 hours standby for your convenience.
