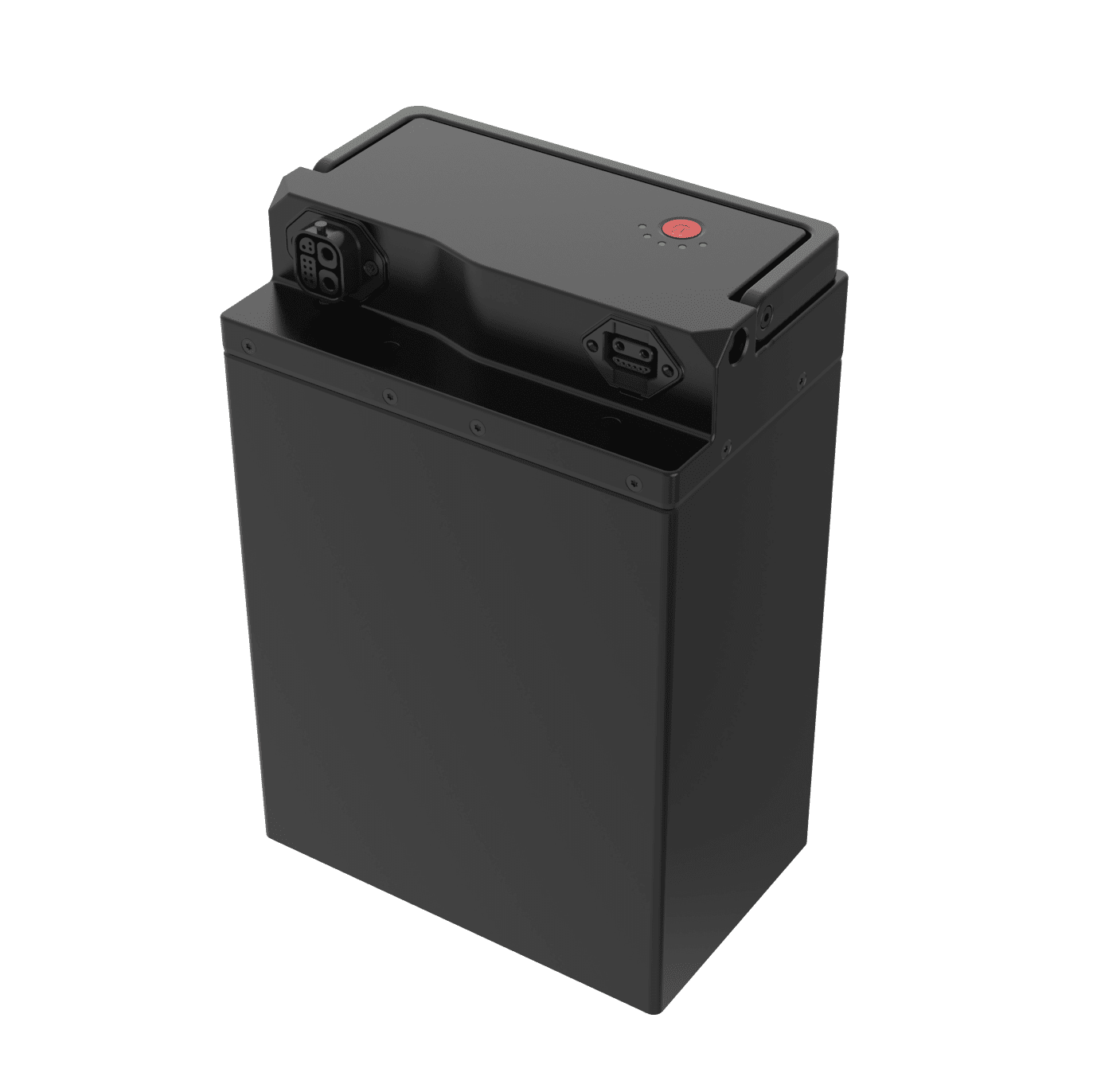

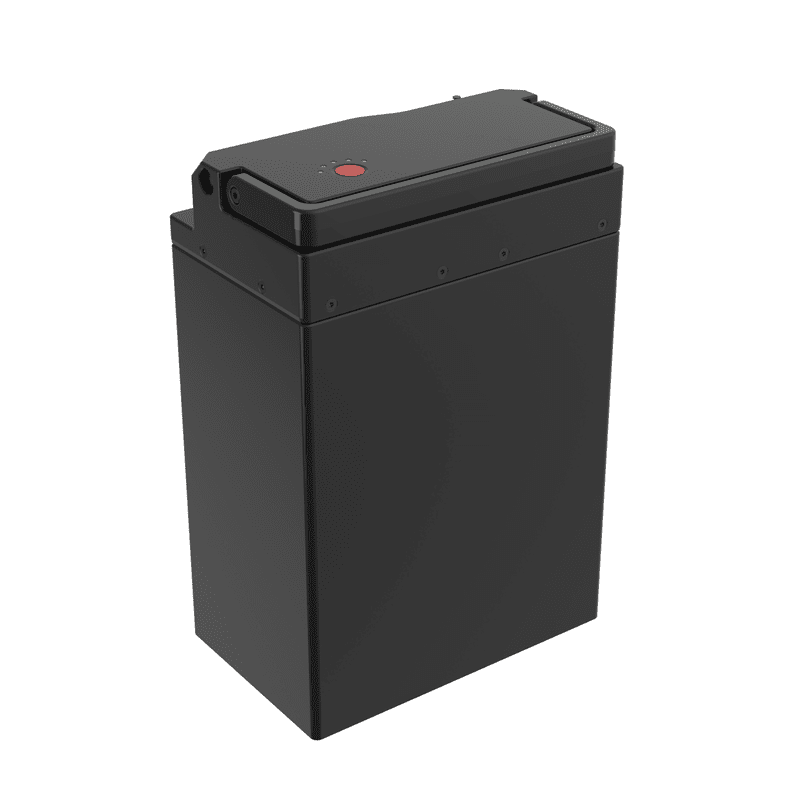

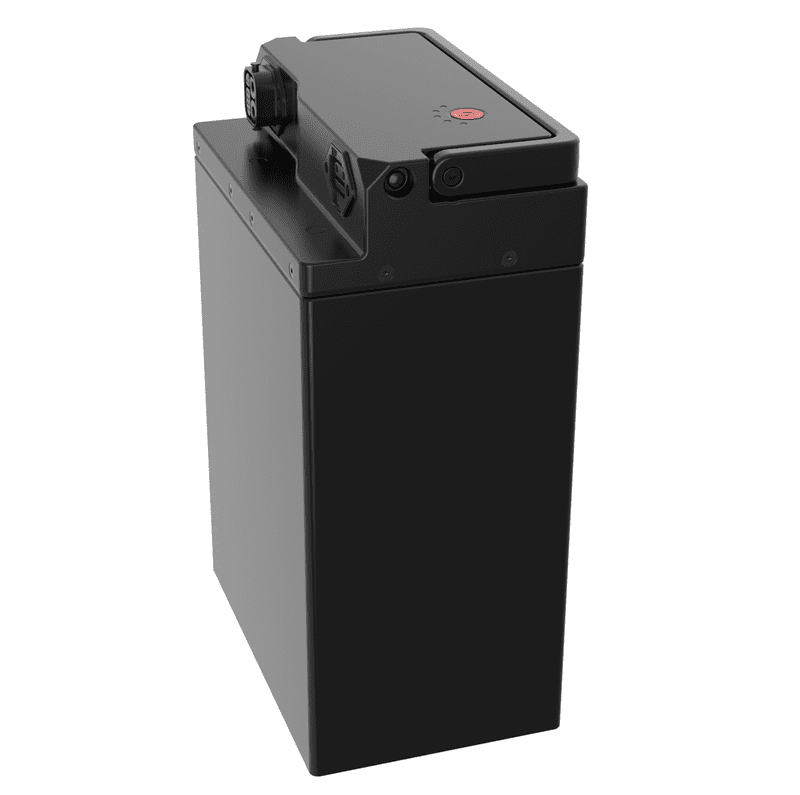

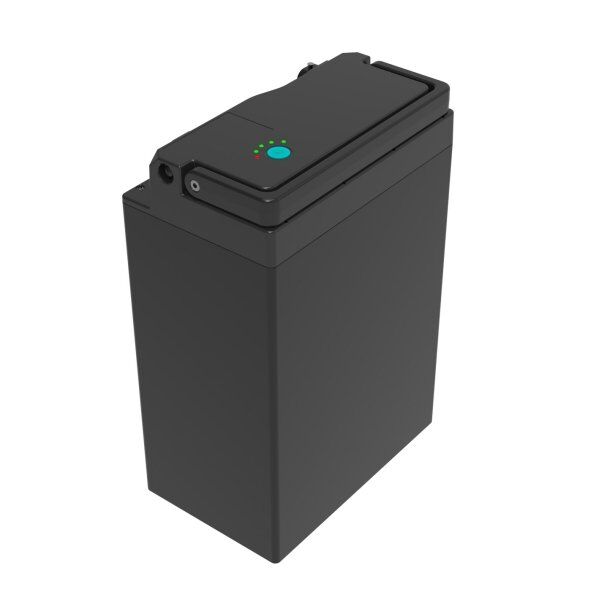

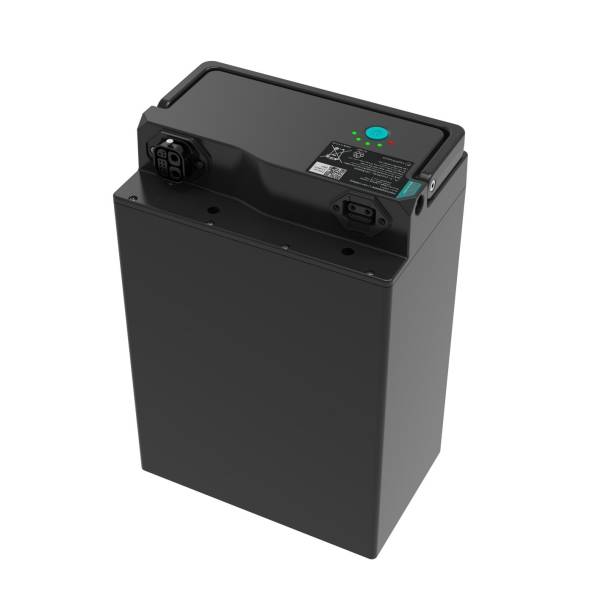

i Series 73.6V LFP Electric Motorcycle Battery TP6110
TP6110 is a production-ready electric motorcycle battery pack developed within Tritek’s Motorcycle Battery Solutions portfolio.
It is designed for OEMs and system integrators seeking a reliable, high-discharge lithium battery system for electric motorcycle applications.
The i Series 73.6V LFP Electric Motorcycle Battery TP6110 provides 3312Wh with a CBAK 32140FS (23S3P) cell configuration, designed for electric motorcycles equipped with 3000-5000W motors and speeds up to 120km/h. It offers 90A continuous discharge, 135A peak output, ensuring stable power delivery for high-load riding conditions. With energy recovery support and an IP67-rated enclosure, TP6110 provides enhanced efficiency, durability, and protection for real-world motorcycle applications.
It is compatible with most electric motorcycle platforms and structured for system-level integration.
| Product no. | TP6110 |
| ★ Motor power range | 3000-5000W |
| ★ Vehicle speed | 100~120km/h |
| ★ Battery voltage | 73.6V |
| ★ Battery capacity | 45Ah |
| ★ Battery power | 3312Wh |
| ★ Cell configuration | 23S3P |
| ★ Cell model | 32140FS-15Ah |
| ★ Battery sizes(mm) | 260*165*386mm |
| Battery holder sizes(mm) | NA |
| ★ Battery weight | 26kg |
| Swappable | Yes |
| Hot swappable | Yes |
| Parallel connection | 2-4 Pcs |
| Charge connector | 2+6 50A |
| Discharge connector | S1340 |
| DC auxiliary output-12V2A | Yes |
| DC auxiliary output-12V10A | Optional |
| ★ Standard discharge current | 45A |
| ★ Continuous discharge current | 90A |
| ★ Boost discharge current | 128A |
| ★ Peak discharge current | 135A |
| ★ Continuous energy recovery current | 22A |
| ★ Max energy recovery current | 95V/45A/10S |
| ★ 2nd protection | Yes |
| Smart BMS | CAN |
| Baud rate | 250K/500K |

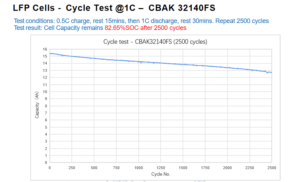

| ★ Cycle life | ≥77% @2500cycles |
| ★ IP rating | IP67 |
| Case material | Aluminum+PC |
| ★ Certification-standard | R136, UN38.3, ROHS, REACH |
| Certification-compliant | ECE R10 |
| Customized option 4G/Bluetooth module | Optional |
| Customized option Bluetooth module | Optional |
| Customized option USB-C (diagnose) | Optional |
| Customized option USB-C (software update) | Optional |
| Customized protocol | yes |
📋Key Features
🛡️Safety
✅Top Cell only: No fire, no explosion!
✅Pre-charge and pre-discharge protection: No spark, adjust current & voltage automatically, surge current protection!
✅Excellent thermal rise management: Longer lifespan, greater safety!

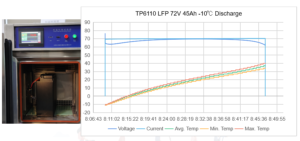

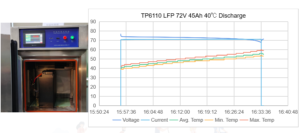

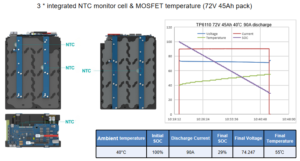

Thermal Performance Validation (Example Section)
TP6110 has been validated through controlled thermal discharge testing at −10 °C and 40 °C.
The battery maintains stable voltage output and exhibits uniform, controlled temperature rise under continuous discharge conditions.
Minimal temperature deviation across the pack confirms effective thermal design and consistent cell behavior, supporting safe and reliable operation in demanding motorcycle environments.
✅BMS and APP: Intelligent and safe BMS battery guard!
- Cutting-edge Innovation: Over 90% test coverage for accurate battery monitoring
- Dual Protection: Robust hardware and firmware dual safeguards
- Precise SOC Management: Accurate insights into battery capacity
- Comprehensive protection: Overcharge, over-discharge, over-temperature, short circuit, etc
- Communication Interface: CAN, CAN OPEN, UART, RS485…
- Multiple Functions: 4G, Bluetooth, E-lock, GPS, USB-C, DC Aux. modules…
✅Waterproof IP67: No concern in any environments!
✅Global recognition: ISO9001, IATF16949, UL, UN, IEC certified, meets market entry requirements globally

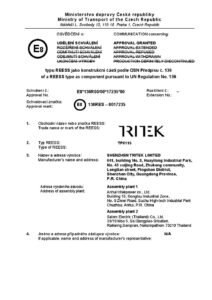

✅UN ECE R136 certified: Complies with global EV battery safety regulations, ensures safer operation and market access in Europe and beyond!

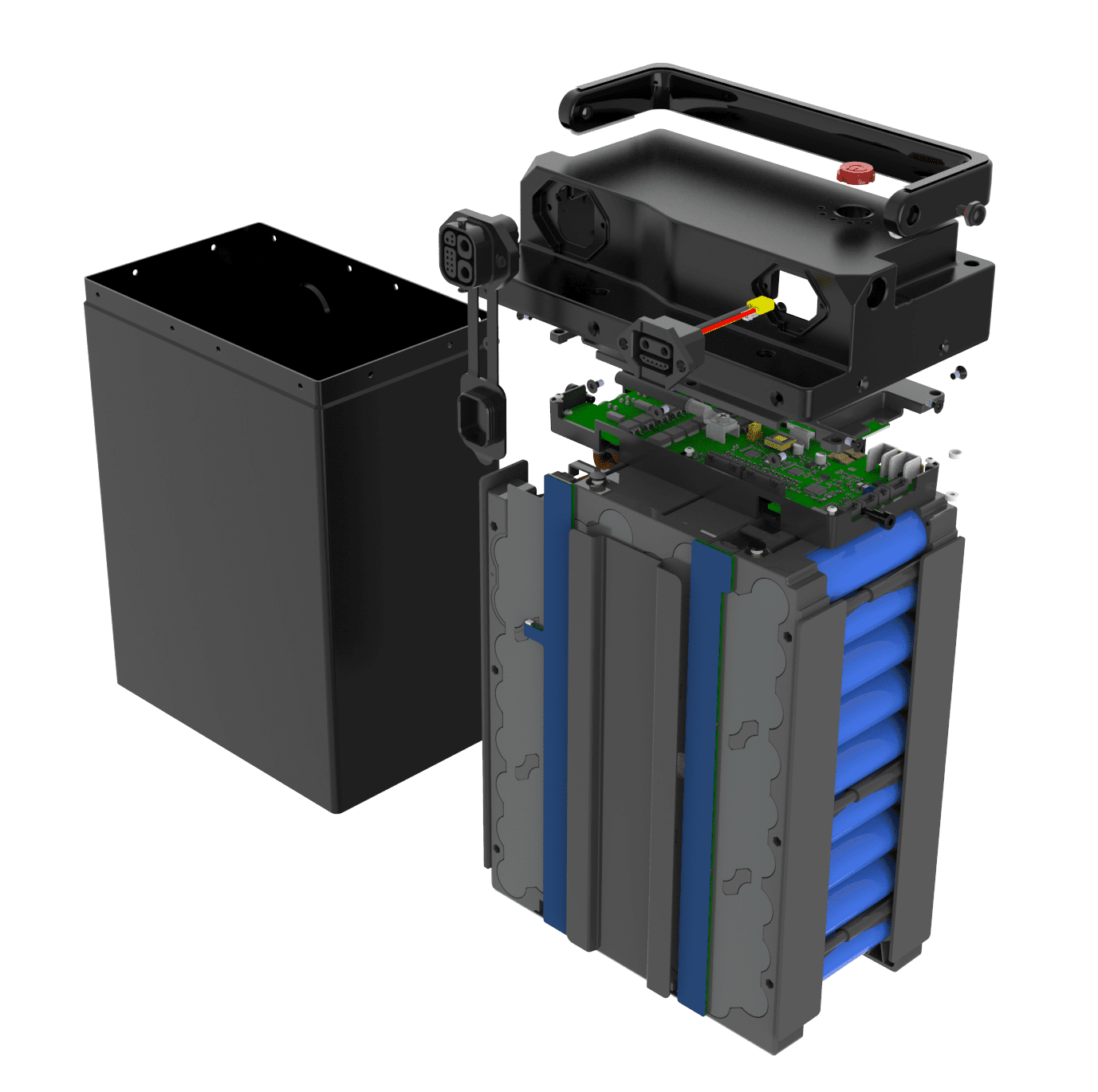

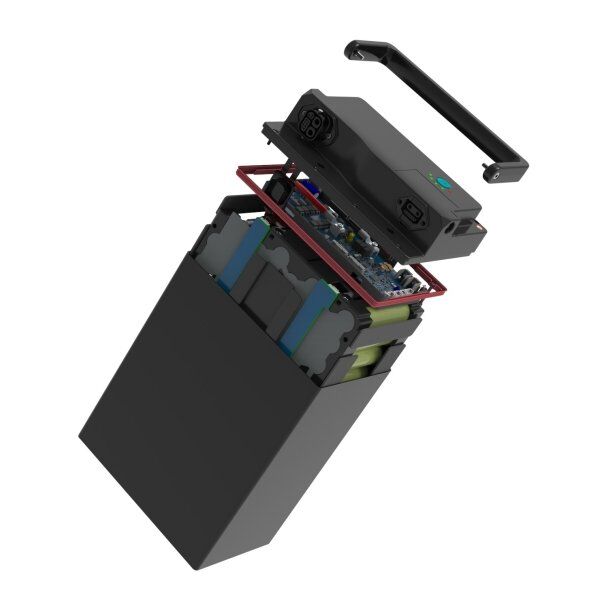

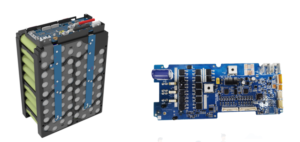

✅ Easy-maintain Design: Corepack features separate busbar + protection board structure with connector interfaces for easy maintenance.
🌐Intelligence
✅Low power consumption: Leads to long shelf life
- 6 months of charge-free storage at 5% SOC
- 2.5 years of charge-free storage at 20% SOC
✅4G module: Reserve space for 4G/Bluetooth module optional
🌡️Performance
- Charge temperature: 1-50℃
- Discharge temperature: -20-60℃

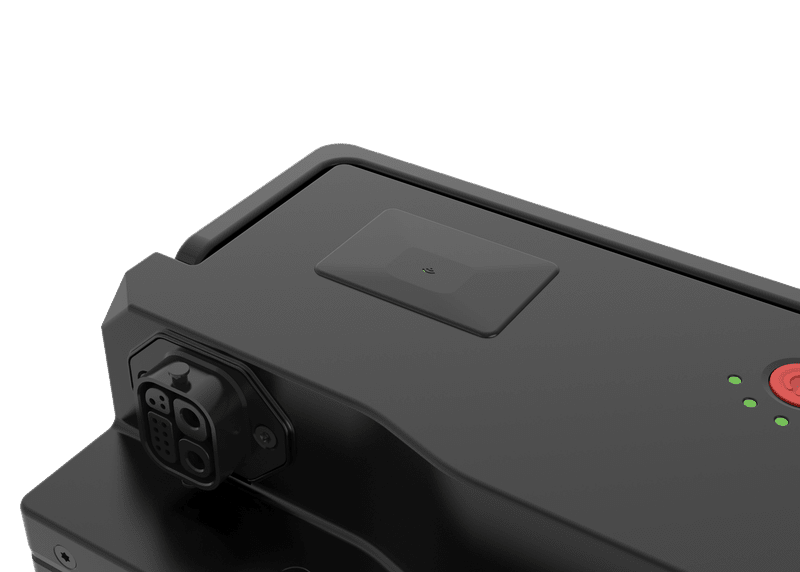

Connector Type of 73.6V NCM Electric Motorcycle Battery TP6110

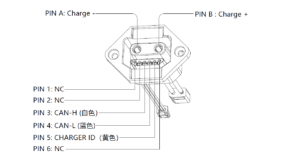

| | Charge | No. | Specification | ||||||
| PINA | Charge – | ||||||||
| PINB | Charge + | ||||||||
| PIN1 | NC | ||||||||
| PIN2 | NC | ||||||||
| PIN3 | Charger ID | ||||||||
| PIN4 | CAN H | ||||||||
| PIN5 | CAN L | ||||||||
| PIN6 | NC | ||||||||

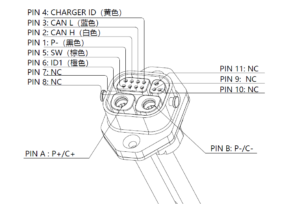

 | Discharge | No. | Specification | ||||||
| PINA | P+/C+ | ||||||||
| PINB | P-/C- | ||||||||
| PIN1 | P- | ||||||||
| PIN2 | CAN H | ||||||||
| PIN3 | CAN L | ||||||||
| PIN4 | Charger ID | ||||||||
| PIN5 | Switch | ||||||||
| PIN6 | ID1 | ||||||||
| PIN7 | NC | ||||||||
| PIN8 | NC | ||||||||
| PIN9 | NC | ||||||||
| PIN10 | NC | ||||||||
| PIN11 | NC | ||||||||
Cell Arrangement of 73.6V NCM Electric Motorcycle Battery TP6110
❓ FAQ – TP6110 Electric Motorcycle Battery
Is TP6110 suitable for different motorcycle models?
Yes. TP6110 serves as a reference solution and can be adapted for various electric motorcycle platforms.
Is TP6110 certified for international markets?
TP6110 is developed in alignment with international safety UN R136 and transportation standards UN 38.3.
