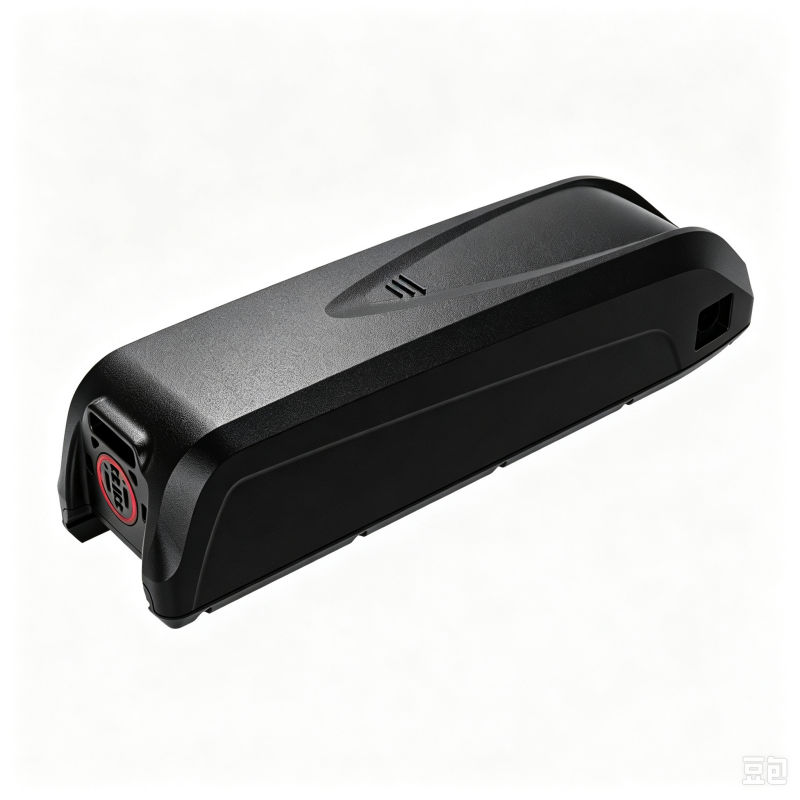

i Series 36V/48V eBike Down Tube Battery TP6176/TP6178
IP67, dual battery solution, powerful, durable, intelligent, safe, suitable for commuter bikes, mountain bikes, touring bikes, trekking bikes…
The i Series TP6176 and TP6178 eBike Batteries deliver 792Wh of high-capacity power in both 36V 22Ah and 48V 16.5Ah configurations, using reliable Samsung 21700-58E cells. With a compact 366.8 × 97 × 97mm design and a weight of just 3.8–3.9kg, they are well suited for trekking bikes, mountain e-bikes, and long-range e-bike applications. Featuring IP67 protection, smart CAN 2.0 BMS, hot-swappable design, parallel connection, and range extender integration, the TP6176/TP6178 platform provides flexible, scalable power for demanding e-bike applications. The batteries also support high continuous and boost discharge currents, delivering strong performance for climbing, extended rides, and varied terrain.
| Product No. | TP6176-02 | TP6178-02 |
| ★ Battery voltage | 36V | 48V |
| ★ Battery capacity | 22Ah | 16.5Ah |
| ★ Battery power | 792Wh | 792Wh |
| ★ Cell configuration | 10S4P | 13S3P |
| ★ Cell type | Samsung 21700-58E | Samsung 21700-58E |
| ★ Battery sizes (mm) | 366.8*97*97 | 366.8*97*97 |
| ★ Battery holder sizes (mm) | / | / |
| ★Battery weight | 3.9kg | 3.8kg |
| ★ Integration with range extender | yes | yes |
| ★ Hot swappable | yes | yes |
| ★ Parallel connection | yes | yes |
| DC auxiliary output-12V2A | / | / |
| ★ DC auxiliary output-12V4A | 12V 4A, 5V 4A | 12V 4A, 5V 4A |
| ★ Standard discharge current for cycling） | 22A | 16.5A |
| ★ Continuous discharge current | 35A | 29A |
| ★ Boost discharge current | 41A | 31A |
| ★ Peak discharge current | 44A/5s | 33A/5s |
| ★ Standard charge current | 5A | 5A |
| ★ Quick charge current | 11A | 8A |
| ★ Continuous energy recovery current | 11A | 9A |
| ★ Peak energy recovery current | 22A/5s | 16.5A/5s |
| ★ 2nd protection | yes | yes |
| Smart BMS | CAN 2.0 | CAN 2.0 |
| Baud rate | 250K/500K | 250K/500K |
| ★ Cycle life | ≥80% @ 500cycles | ≥80%@500cycles |
| ★ IP rating | IP67 | IP67 |
| Case material | ABS+PC | ABS+PC |
| ★ Certification – standard | CE, UN38.3, ROHS, REACH | CE, UN38.3, ROHS, REACH |
| Certification – compliant | EN50604, EU1542, FCC, UL2271 | EN50604, EU1542, FCC, UL2271 |
| USB-C | optional | optional |
| USB-C (output) | optional | optional |
| USB-C (input) | NA | NA |
| Customized protocol | optional | optional |
📋Key Features
🛡️Safety
✅Top Cell only: No fire, no explosion!
✅Pre-charge and pre-discharge protection: No spark, adjust current&voltage automatically, surge current protection!
✅Excellent thermal rise management: Longer lifespan, greater safety!
✅BMS and APP: Intelligent and safe BMS battery guard!
- Cutting-edge Innovation: Over 90% test coverage for accurate battery monitoring
- Dual Protection: Robust hardware and firmware dual safeguards
- Precise SOC Management: Accurate insights into battery capacity
- Comprehensive protection: Overcharge, over-discharge, over-temperature, short circuit, etc
- Communication Interface: CAN, CAN OPEN, UART, RS485…
- Multiple Functions: 4G, Bluetooth, E-lock, GPS, USB-C, DC Aux. modules…
✅Waterproof IP67: No concern in hasrh environments!
✅Global recognition: ISO9001, IATF16949, UL, UN, IEC/EN certified, meets market entry requirements globally
🌐Intelligence
✅Hot-swapping with automatic ID setting: No downtime, swap and go!
✅Dual battery solution: Increase power or range, whatever you want!
- Simultaneous discharge increases power
- Sequential discharge extends the range.
✅Low power consumption: Leads to long shelf life!
- 6 months of charge-free storage at 5% SOC
- 2.5 years of charge-free storage at 20% SOC
🌡️Performance
- Charge temperature: 1-45℃
- Discharge temperature: -20-60℃
Aside from this product, we can provide customized battery packs according to the customer’s needs and specifications.
