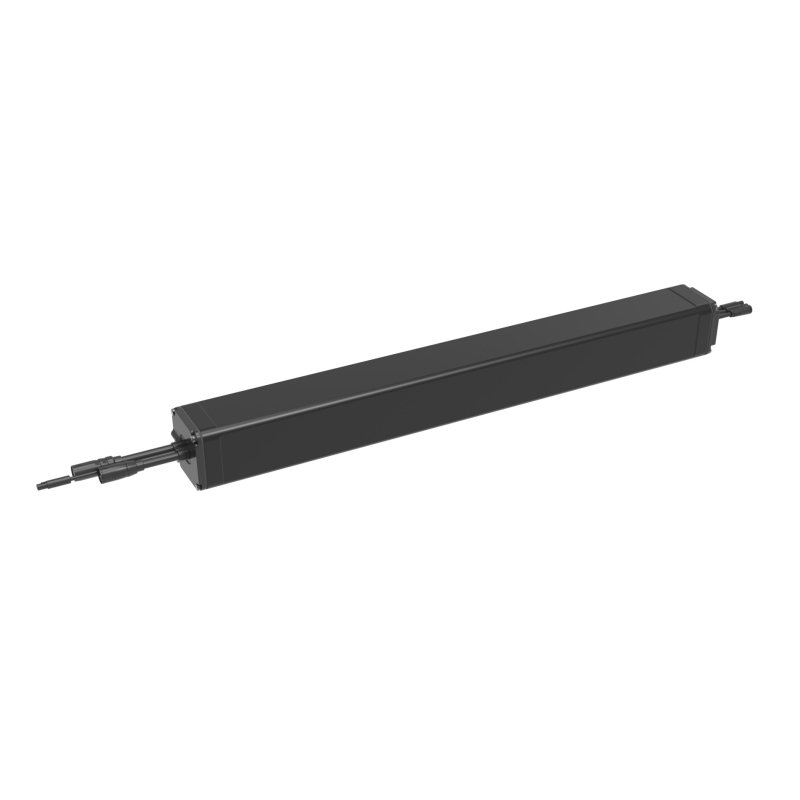

i Series 36V eBike Inner Tube Battery TP6172
IP67, dual battery solution, compact, slim, intelligent, safe, suitable for commuter bikes, road bike, city bike…
The i Series 36V eBike Battery TP6172 delivers 396Wh of reliable power with Samsung 21700-58E cells in a 10S2P configuration. Weighing just 2.2kg, its slim 477 × 50.7 × 50.7mm design is ideal for urban commuting and light off-road riding, providing compact, high-performance power for daily e-bike applications. With IP67 protection, a smart CAN 2.0 BMS, hot-swappable design, parallel connection, and range extender integration, TP6172 offers flexible and intelligent energy solutions for modern e-bike OEMs.
| Product No. | TP6172 |
| Tube cross section | / |

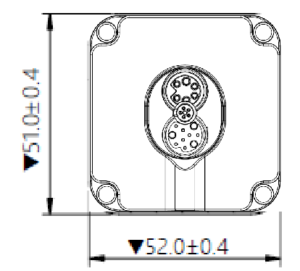

| Battery cross section |  |
| ★ Battery voltage | 36V |
| ★ Battery capacity | 11Ah |
| ★ Battery power | 396Wh |
| ★ Cell configuration | 10S2P |
| ★ Cell type | Samsung 21700-58E |
| ★ Battery sizes (mm) | 477*50.7*50.7 |
| ★ Battery holder sizes (mm) | / |
| ★Battery weight | 2.2kg |
| ★ Integration with range extender | yes |
| ★ Hot swappable | yes |
| ★ Parallel connection | yes |
| DC auxiliary output-12V2A | / |
| ★ DC auxiliary output-12V4A | 12V 4A, 6V 4A |
| ★ Standard discharge current for cycling） | 11A |
| ★ Continuous discharge current | 20A |
| ★ Boost discharge current | NA |
| ★ Peak discharge current | 22A/5s |
| ★ Standard charge current | 4A |
| ★ Quick charge current | 6A |
| ★ Continuous energy recovery current | 6A |
| ★ Peak energy recovery current | 11A/5s |
| ★ 2nd protection | yes |
| Smart BMS | CAN 2.0 |
| Baud rate | 250K/500K |
| ★ Cycle life | ≥80% @ 500cycles |
| ★ IP rating | IP67 |
| Case material | Aluminum+PC |
| ★ Certification – standard | CE, UN38.3, ROHS, REACH |
| Certification – compliant | FCC, UL2271, EN50604, EU1542 |
| USB-C | optional |
| USB-C (output) | optional |
| USB-C (input) | NA |
| Customized protocol | optional |
📋Key Features
🛡️Safety
✅Top Cell only: No fire, no explosion!
✅Pre-charge and pre-discharge protection: No spark, adjust current&voltage automatically, surge current protection!
✅Excellent thermal rise management: Longer lifespan, greater safety!
✅BMS and APP: Intelligent and safe BMS battery guard!
- Cutting-edge Innovation: Over 90% test coverage for accurate battery monitoring
- Dual Protection: Robust hardware and firmware dual safeguards
- Precise SOC Management: Accurate insights into battery capacity
- Comprehensive protection: Overcharge, over-discharge, over-temperature, short circuit, etc
- Communication Interface: CAN, CAN OPEN, UART, RS485…
- Multiple Functions: 4G, Bluetooth, E-lock, GPS, USB-C, DC Aux. modules…
✅Waterproof IP67: No concern in hasrh environments!
✅Global recognition: ISO9001, IATF16949, UL, UN, IEC/EN certified, meets market entry requirements globally
🌐Intelligence
✅Hot-swapping with automatic ID setting: No downtime, swap and go!
✅Dual battery solution: Increase power or range, whatever you want!
- Simultaneous discharge increases power
- Sequential discharge extends the range.
✅Low power consumption: Leads to long shelf life!
- 6 months of charge-free storage at 5% SOC
- 2.5 years of charge-free storage at 20% SOC
🌡️Performance
- Charge temperature: 1-45℃
- Discharge temperature: -20-60℃
Aside from this product, we can provide customized battery packs according to the customer’s needs and specifications.
