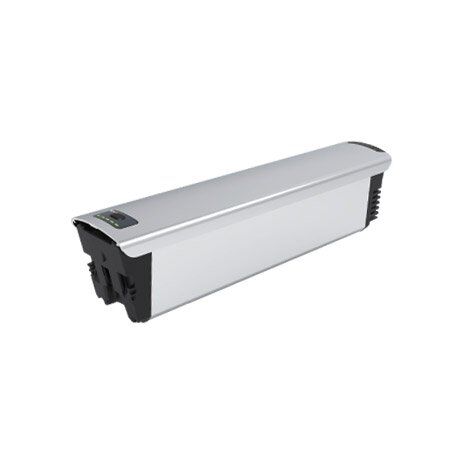

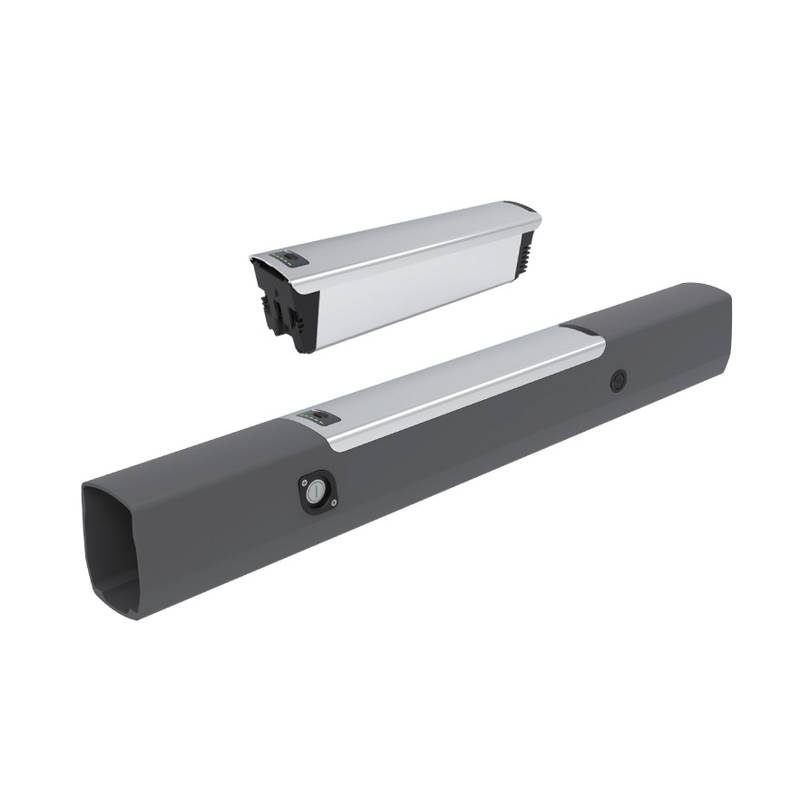

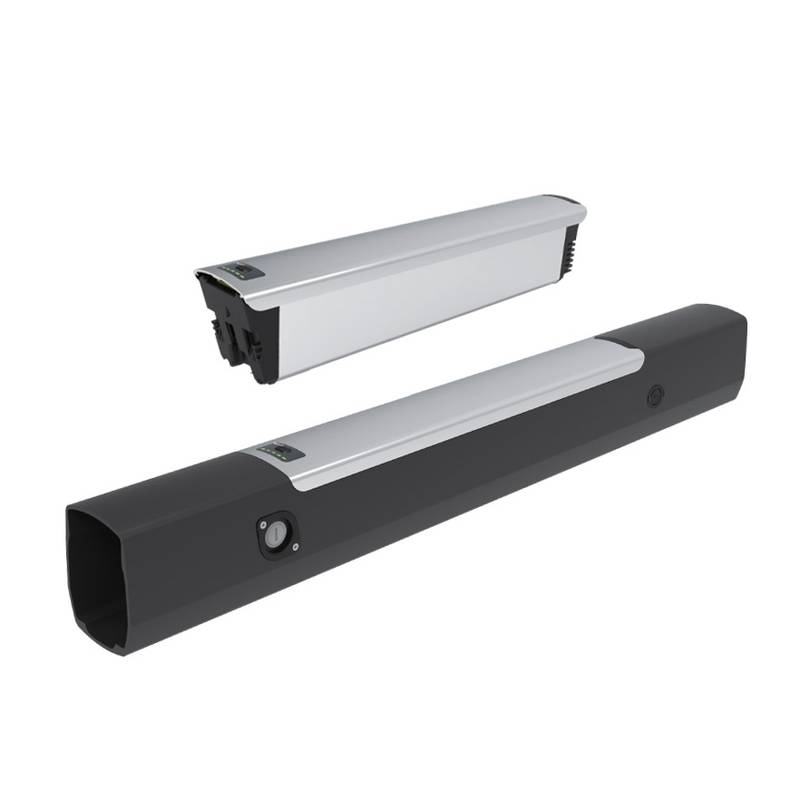

i Series 36V/48V eBike Intube Battery TK0161-162

Compact and high power, intelligent, safe, suitable for mountain bike, road bike, city bike…



Additional information

Voltage

36V, 48V

Capacity

10.5Ah, 14Ah, 17.5Ah

Discharge rate

1C continuous, 2C max

Smart BMS

CAN

Cycle Life

minimum 500 cycles

Case material

Aluminum, PC

Case Type

In Tube

Application

electric city bike

Cell Structure

10S4P, 10S5P, 13S3P

Cell Type

18650, NCM

Discover more about 36V/48V eBike Intube Battery TK0161-162

Model Picture Voltage Capacity Dimensions Cell Structure Cell Type
TK0161-3618 161++ 36V 17.5Ah 435X60X83mm 10S5P 18650
TK0161-4818 161++ 48V 17.5Ah 435X60X83mm 13S4P 18650
TK0162-3614 162++ 36V 14Ah 357X60X83mm 10S4P 18650
TK0162-4814 162++ 48V 14Ah 357X60X83mm 13S3P 18650

📋Key Features

🛡️Safety

✅Top Cell only: No fire, no explosion!

✅Pre-charge and pre-discharge protection: No spark, adjust current&voltage automatically, surge current protection!

✅Excellent thermal rise mangement: Longer lifespan, greater safety!

Thermal rise management

✅BMS and APP: Intelligent and safe BMS battery guard!

  • Cutting-edge Innovation: Over 90% test coverage for accurate battery monitoring
  • Dual Protection: Robust hardware and firmware dual safeguards
  • Precise SOC Management: Accurate insights into battery capacity
  • Comprehensive protection: Overcharge, over-discharge, over-temperature, short circuit, etc
  • Smart Monitoring and Communication Interface: Real-time battery status monitoring, calendar information, short circuit protection, CAN bus communication and HMI display

triteks smart bms monitoring and management

✅Waterproof IP67: No concern in any environments!

IP67

Global recognizition: ISO9001, IATF16949, UL, UN, IEC certified, meets market entry requirements globally

Certification



🌐Intelligence

✅Hot-swapping with automatic ID setting: No downtime, swap and go!

✅Dual battery solution: Increasea power or range, whatever you want!

  • Simultaneous discharge increases power
  • Sequential discharge extends the range.

✅Low power consumption: Lead to 3 years free of charge maintenance free!

  • ≤50uA in deep sleep mode while keep battery log
  • ≤13mA in run mode

Lower power consumption

🌡️Performance

  • Charge temperature: 1-45℃
  • Discharge temperature: -20-60℃

ebike battery

intube battery



down tube battery

Aside from this product, we can provide customized battery packs according to the customer’s needs and specifications.

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>Customized Battery Pack<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<

4 good reasons

for choosing Tritek Battery for your electric mobility

选择我们的4大理由 定稿 06

An Intelligent battery with smart BMS, integrate with protocol applicable to the onboard applications, allowing you to communicate with the battery during riding.

选择我们的4大理由 定稿 03

A safe battery and full compliance with certificates in the lev industry, enabling you to use electric mobility worldwide with no restrictions.

选择我们的4大理由 定稿 18

We make every effort to supply sustainable power solutions. You can expect more than 500 cycles or 2.5 years shelf life.

选择我们的4大理由 定稿 21

We are your true battery partner because we care about efficient service. Our service center in Spain and future centers in Germany and the USA are on 24 hours standby for your convenience.
