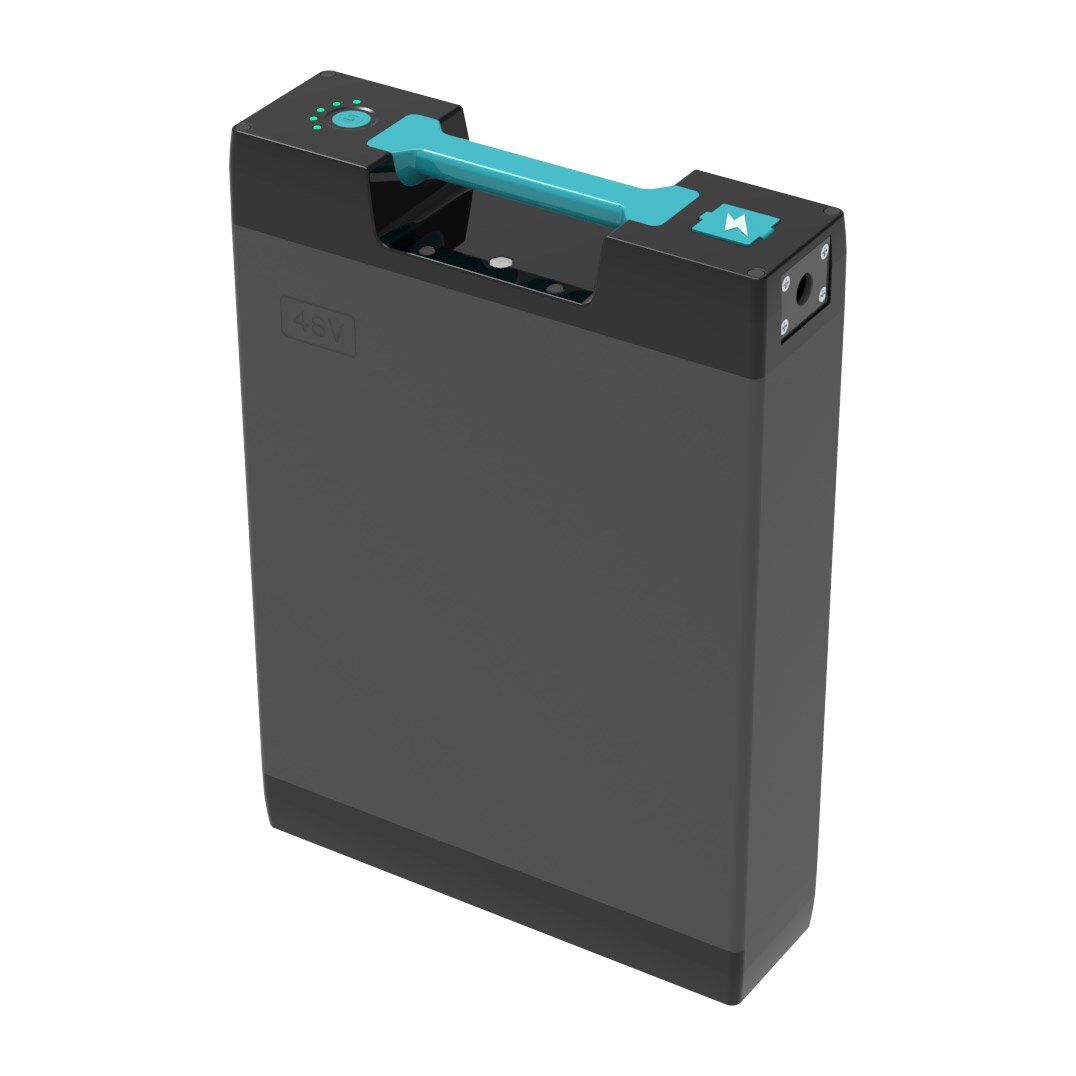

NCM eCargo Bike Battery TP6094

IP67, NCM chemistry with ultra-compact design and small size, support hot swap connection, 2-7 batteries in parallel, support regenerative braking.

Additional information

Cell type

NCM

Motor power range

1000-2000W

Vehicle speed

45-65km/h

Battery power

50.4V, 30Ah, 1512Wh

Battery size

358*297*87mm

Battery weight

8.84kg

Cell model and configuration

Samsung INR 21700-50GB, 14S6P

Standard discharge current

30A

Max continuous discharge current

60A

Continuous energy recovery current

28A

Max energy recovery current

65V/45A/5S

DCDC Auxiliary power

12V, 2A/10A

Cycle Life

≥80% @500cycles

Certification

UN38.3, CE, FCC, IEC62133, EN15194, EN50604, UL2271, RoHS, REACH

Hot swapping

2-7 pcs

IP rating

IP67

Discover more about 50.4V NCM eCargo Bike Battery TP6094

The NCM eCargo Bike Battery TP6094 is a compact and versatile power solution for e-cargo bikes, featuring a 50.4V, 30Ah capacity with an ultra-compact design and IP67 protection, supporting hot swap connections with 2-7 batteries in parallel. It offers a motor power range of 1000-2000W, vehicle speeds of 45-65km/h, and regenerative braking for efficient energy recovery, with robust certifications for safety and reliability, making it an ideal choice for cargo and heavy-duty e-bike applications.c







50.4v ncm ecargo bike battery tp6094

🔌Connector Type of 50.4V NCM eCargo Bike Battery TP6094

  • Anti-spark during vibration and while charger plug-in
  • Support reverse insertion
  • Switch on or wake up the battery before power output
TP6094 charge connector Charge No. Specification
PIN1 /
PIN2 C-
PIN3 CAN H
PIN4 CAN L
PIN5 ID
PIN6 /
PIN7 C+
PIN8 /
TP6094 discharge connector Discharge No. Specification
PIN1 ID3
PIN2 ID2
PIN3 ID1
PIN4 Switch
PIN5 CAN H
PIN6 CAN L
PIN7 12V
PIN8 P-/C-
PIN9 P+/C+
PIN10 P+/C+

tk 4830 ecargo bike battery

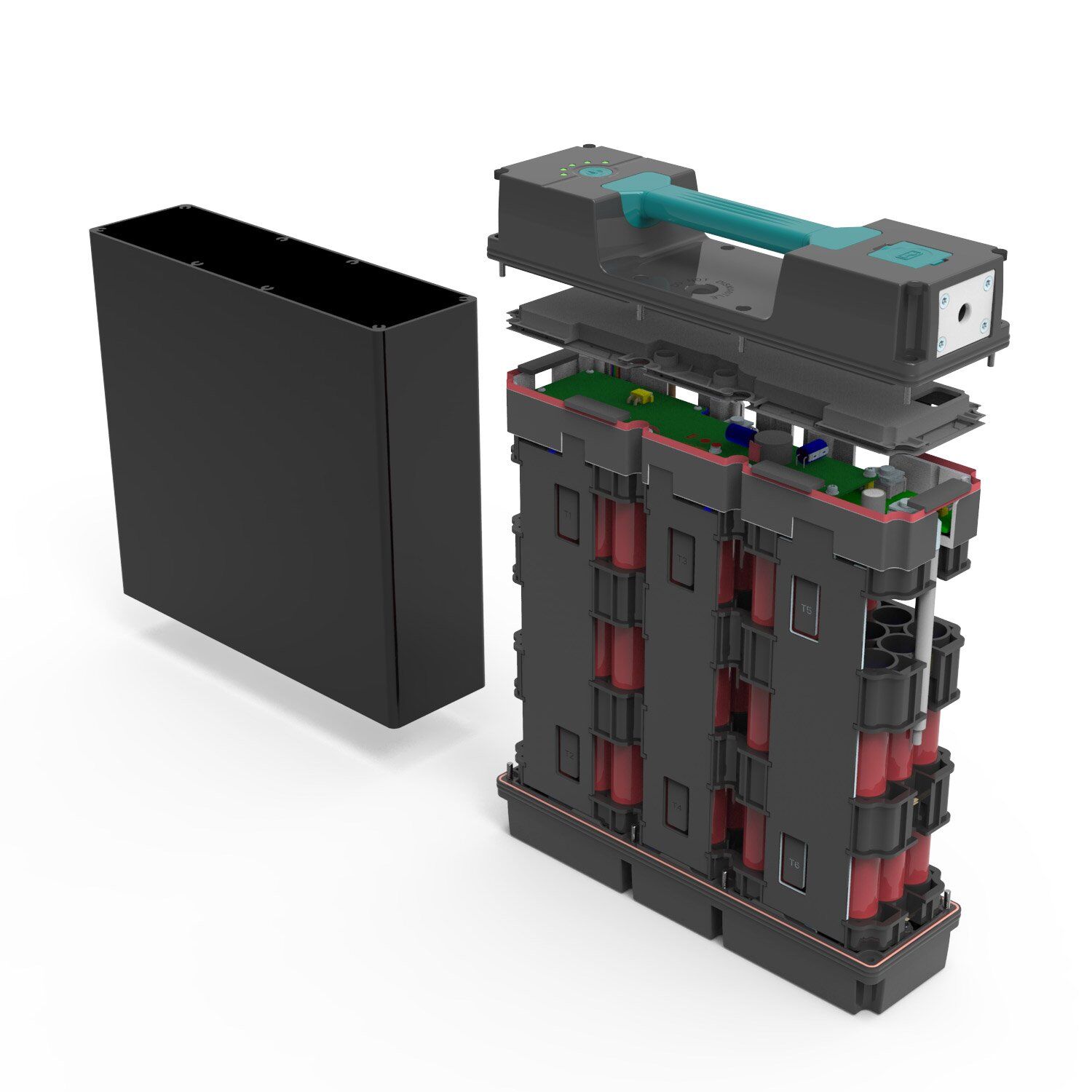

🔋Cell Arrangement of 50.4V NCM eCargo Bike Battery TP6094

50.4v ncm ecargo bike battery tp6094

📋Key Features

  • Maintenance-free: 3 years free of charge
  • Smart: GPS, smart BMS and APP
  • Compatible with most VCU in the industry
  • Hot swapping: support 2-7 batteries in parallel charge and discharge
  • High safety level
  • Compact design
  • Low standby power consumption of BMS: ≤50uA in deep sleep mode, ≤12mA in run mode
  • 3 lvl protection for current, voltage, temperature, etc.
  • LED power display

🌡️Performance

  • Charge temperature: 1-45℃
  • Discharge temperature: -20-60℃

🔋🔋Multi-battery solution: Hot-swapping 2-7 batteries in parallel

support 2 7 batteries parallel

  • The electric cargo bike battery is integrated with smart BMS, which supports multi-battery connection in parallel. The hot-swap solution in the BMS allows the power switch between battery #1 and #2, without limiting the current or delay.

🏢Application:

For high-power applications: cargo bikes, motorcycles, energy storage systems, industrial, AGV, etc.

Aside from this product, we can provide customized battery packs according to the customer’s needs and specifications.
