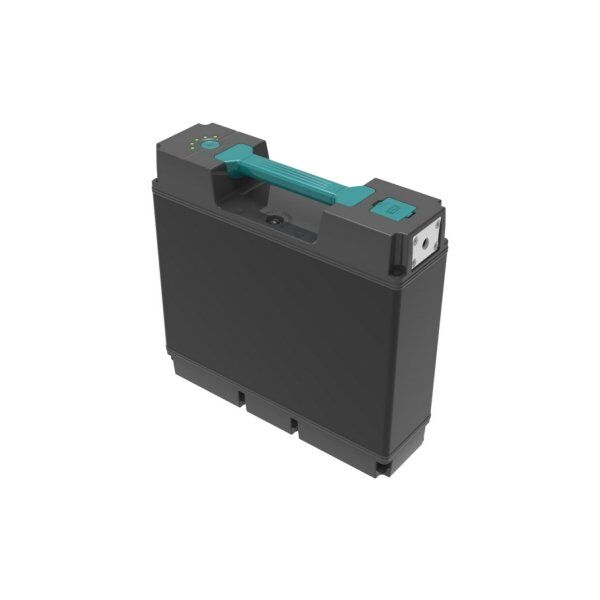

i Series 46.8V NCM eCargo Bike Battery TP6088

IP67, NCM chemistry with ultra-compact design and small size, support hot swap connection, 2-11 batteries in parallel, support regenerative braking.

Additional information

Motor power range

≤1500W

Vehicle speed

25-50km/h

Battery Power

46.8V, 19.6Ah, 917.28Wh

Cell model and configuration

Samsung INR21700-50GB-13S4P

Standard charge current

10A

Peak charge current

10~12A for 5S

Continuous energy recovery current

18A

Max energy recovery current

65V/30A/5S
(Support energy recovery)

Standard discharge current

20A

Max continuous discharge current

40A

Peak discharge current

41~54A for 15S
54~60A for 5S
61~66A for 2S

Size

297*87*279mm

Weight

5.64kg

DC auxiliary output

DC auxiliary output

IP rating

IP67

Cycle life

≥80% @500cycles

Certification

CE, FCC, UN38.3, EN15194:2017, EN50604, IEC62133, ROHS, REACH, UL2271, etc.

Discover more about 46.8V NCM eCargo Bike Battery TP6088

The i Series 46.8V NCM eCargo Bike Battery TP6088 delivers 917.28Wh with a Samsung 13S4P configuration, ideal for motors up to 1500W and speeds of 25-50km/h. Its ultra-compact design, IP67 rating, and hot-swap capability make it perfect for versatile eCargo applications. It supports parallel connection (2-11 batteries) and regenerative braking for enhanced efficiency.TP6088 Dimension

📋Key Features

🛡️Safety

✅Top Cell only: No fire, no explosion!

✅Pre-charge and pre-discharge protection: No spark, adjust current&voltage automatically, surge current protection!

✅Excellent thermal rise mangement: Longer lifespan, greater safety!

  • We optimize the busbar, nickel pins, and cell layout to manage the thermal rise of cell, critical components, and pack.
  • 5 integrated NTC to monitor cell and MOSFET temperature

Optimized layout 5 integrated NTC

Thermal rise management

✅BMS and APP: Intelligent and safe BMS battery guard!

  • Cutting-edge Innovation: Over 90% test coverage for accurate battery monitoring
  • Dual Protection: Robust hardware and firmware dual safeguards
  • Precise SOC Management: Accurate insights into battery capacity
  • Comprehensive protection: Overcharge, over-discharge, over-temperature, short circuit, etc
  • Smart Monitoring and Communication Interface: Real-time battery status monitoring, calendar information, short circuit protection, CAN bus communication and HMI display

ICT and FCT on PCBA

triteks smart bms monitoring and management

✅Waterproof IP67: No concern in any environments!

IP67

Global recognizition: ISO9001, IATF16949, UL, UN, IEC certified, meets market entry requirements globallyCertification

🌐Intelligence

✅Hot-swapping with automatic ID setting: No downtime, swap and Go!

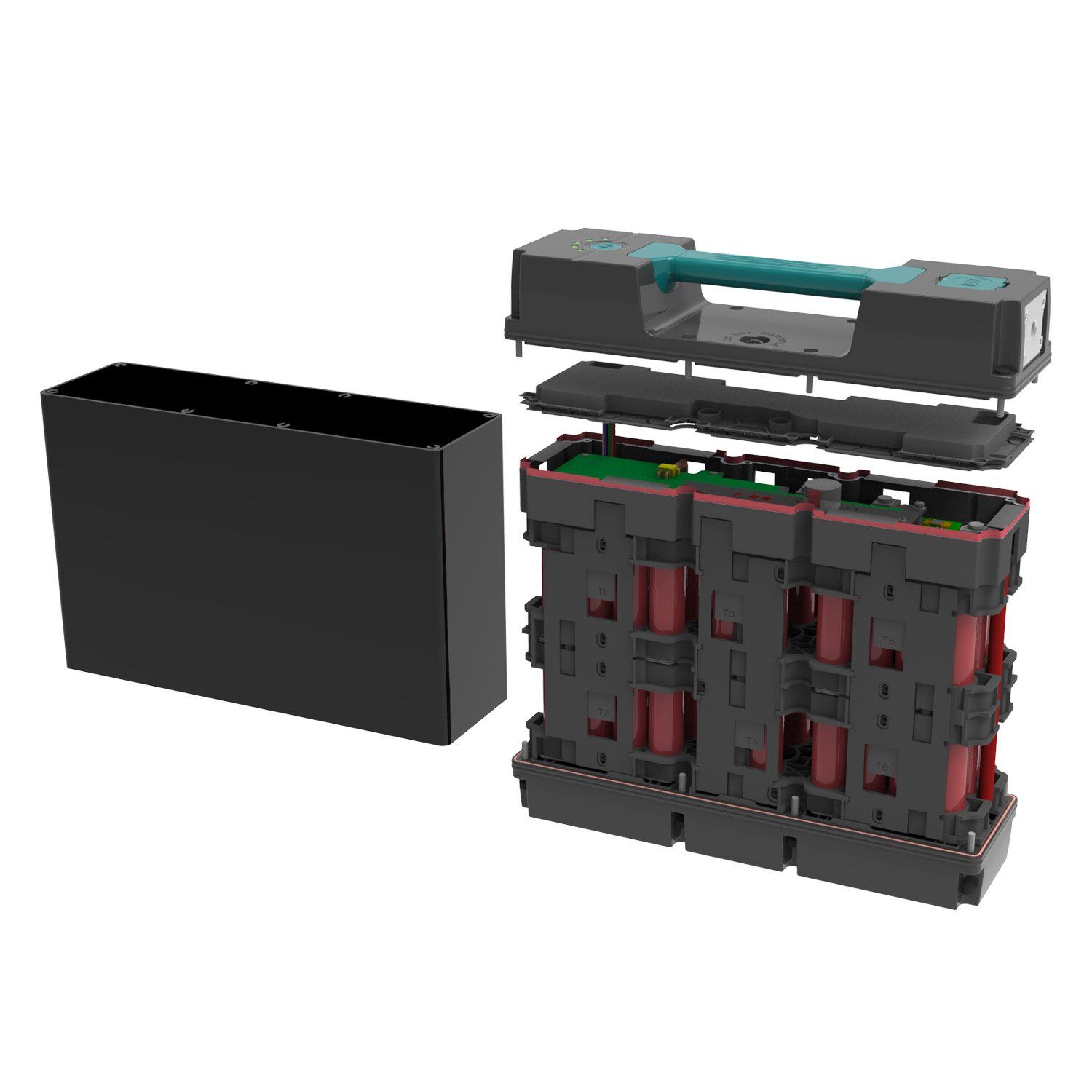

✅Modular design: No wire soldering, compliant to new regulation EN 50604!

Modular design seperate busbar

B+ wire connection



✅Multi battery solution: Up to 11 batteries in parallel, no range anxiety!

Parallel-solution-11pcs

Parallel and Horizontal

how to achieve 2-11 parallel
how to achieve 2-11 parallel

✅Flexible slip-in cage: Flexibility to mix and match without additional drilling, etc.

Slip-in cage

✅Two option cable: 2A affordable, 10A supply multi equip light, HMI, windscreen wiper, etc

cable

✅Low power consumption: Lead to 3 years free of charge maintenance free!

  • ≤50uA in deep sleep mode while keep battery log
  • ≤13mA in run mode

Lower power consumption

🌡️Performance

  • Charge temperature: 1-45℃
  • Discharge temperature: -20-60℃

🔌Connector Type of 46.8V NCM eCargo Bike Battery TP6088

  • Anti-spark during vibration and while charger plug-in
  • Supports reverse insertion
  • Switch-on or wake-up function before power output
  • Durable, capable of withstanding over 10,000 connection cycles.
TP6088 Charge connector Charge No. Specification
PIN1 /
PIN2 C-
PIN3 CAN H
PIN4 CAN L
PIN5 ID
PIN6 /
PIN7 C+
PIN8 /



TP6088 Discharge connector Discharge No. Specification
PIN1 ID3
PIN2 ID2
PIN3 ID1
PIN4 Switch
PIN5 CAN H
PIN6 CAN L
PIN7 12V
PIN8 P-/C-
PIN9 P+/C+
PIN10 P+/C+



tk 4830 ecargo bike battery

🔋Cell Arrangement of 46.8V NCM eCargo Bike Battery TP6088

TP6088 Cell Arrangement



🏢Application:

For high-power applications: cargo bikes, motorcycles, energy storage systems, industrial, AGV, marine, agricultural, etc.

Aside from this product, we can provide customized battery packs according to the customer’s needs and specifications.
