i Series 72V LMFP Electric Motorcycle Battery TP6099

IP67, supports hot swap connection, 2-11 batteries in parallel, regenerative braking, GPS module, support high-speed electric motorcycle

Additional information

Motor power range

3000-4000W

Vehicle speed

80-100km/h

Battery power

72V, 25Ah, 1800Wh

Cell model and configuration

26700-5000mA 20S5P

Standard charge current

10A

Peak charge current

20A/10S

Continuous energy recovery current

12.5A

Max energy recovery current

100V/25A/5S

Standard discharge current

25A

Max continuous discharge current

70A

Peak discharge current

75A/5S

Battery size

180*150*360mm

Battery weight

14.7kg

DCDC Auxiliary power

12V, 10A

IP rating

IP67

GPS module

Yes

Cycle Life

≥80% @500cycles

Certification

CE, FCC, UN38.3, EN15194:2017, EN50604, IEC62133, ROHS, REACH, UL2271, etc.

Discover more about 72V LMFP Electric Motorcycle Battery TP6099

The i Series 72V LMFP Electric Motorcycle Battery TP6099 delivers 1800Wh with a 20S5P configuration, ideal for 3000-4000W motors and speeds up to 100km/h. It supports 70A continuous discharge, 75A peak, and features advanced energy recovery for enhanced efficiency.

TP6099 Dimension

📋Key Features

🛡️Safety

✅Top Cell only: No fire, no explosion!

✅Pre-charge and pre-discharge protection: No spark, adjust current&voltage automatically, surge current protection!

✅Excellent thermal rise mangement: Longer lifespan, greater safety!

Thermal rise management

✅BMS and APP: Intelligent and safe BMS battery guard!

  • Cutting-edge Innovation: Over 90% test coverage for accurate battery monitoring
  • Dual Protection: Robust hardware and firmware dual safeguards
  • Precise SOC Management: Accurate insights into battery capacity
  • Comprehensive protection: Overcharge, over-discharge, over-temperature, short circuit, etc
  • Smart Monitoring and Communication Interface: Real-time battery status monitoring, calendar information, short circuit protection, CAN bus communication and HMI display

triteks smart bms monitoring and management

✅Waterproof IP67: No concern in any environments!

IP67

Global recognizition: ISO9001, IATF16949, UL, UN, IEC certified, meets market entry requirements globallyCertification

🌐Intelligence

✅Multi battery solution: Up to 11 batteries in parallel, no range anxiety!

✅Hot-swapping with automatic ID setting: No downtime, swap and Go!

motorcycle hot-swap solution

✅Low power consumption: Lead to 3 years free of charge maintenance free!

  • ≤50uA in deep sleep mode while keep battery log
  • ≤13mA in run mode

Lower power consumption

🌡️Performance

  • Charge temperature: 1-45℃
  • Discharge temperature: -20-60℃

🔌Connector Type of 72V LMFP Electric Motorcycle Battery TP6099

TP6099 Charge and Discharge Connector No. Specification
PIN1 LOAD-DET
PIN2 SYS
PIN3 485A
PIN4 485B
PIN5 CH-DET
PIN6 NC
PIN7 NC
PINA P+/C+
PINB P-/C-

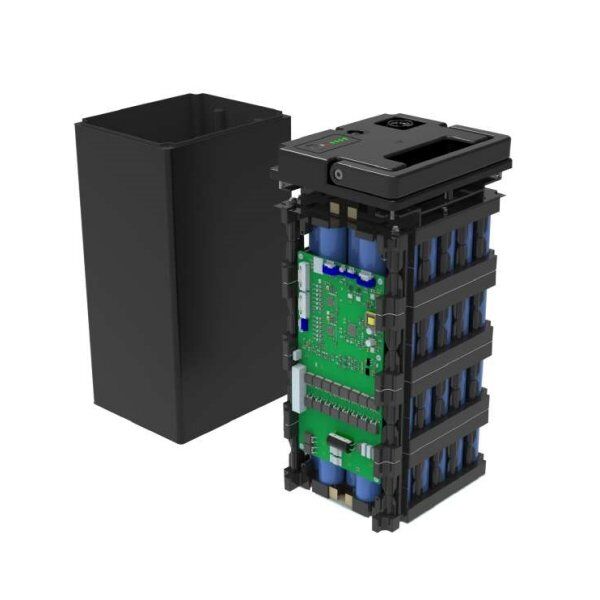

🔋Cell Arrangement of 72V LMFP Electric Motorcycle Battery TP6099

TP6099 Cell Arrangement



Aside from this product, we can provide customized battery packs according to the customer’s needs and specifications.
