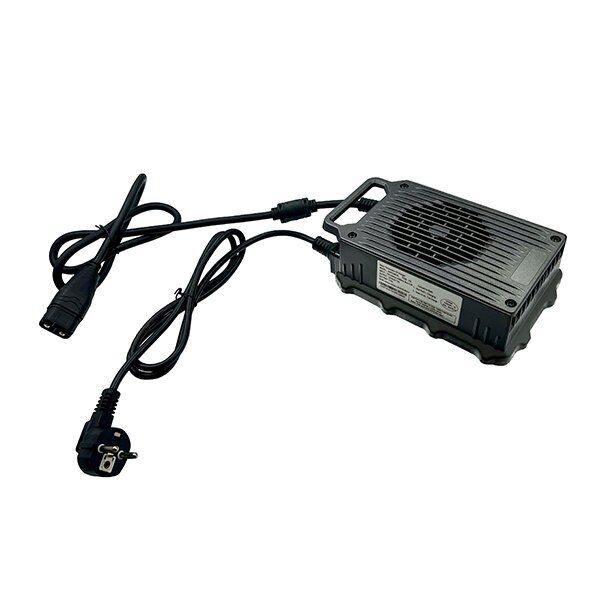

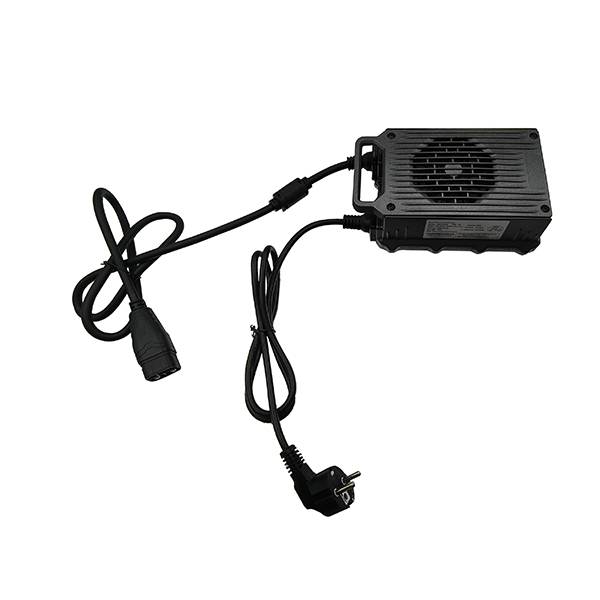

48-58.6V Li-ion Battery Charger TC1028
Fit for battery of 12-14S NCM and 14-16S LFP battery

Additional information

Input voltage

100-240Vac

Output voltage

48-58.6Vdc

Charge current

15A

Rated output power

840W

Fit for battery of

12-14S NCM and 14-16S LFP battery

Input voltage range

90-264Vac

Power consumption (no load)

≤5W (average)

Input current (full load)

≤5A

Efficiency

≥90%

Material housing

Aluminum shell

Cooling mode

Full closed with fan

Dimension

195*142*62mm

IP rating

IP67

Certification

UL, CB, CE

Discover more about 48-58.6V Li-ion Battery Charger TC1028

The 48-58.6V Li-ion Battery Charger TC1028 is designed for 12-14S NCM and 14-16S LFP batteries, delivering a robust charge current of 15A and a rated output power of 840W. It features an input voltage range of 90-264VAC and maintains an efficiency of ≥90%. Housed in a durable aluminum shell and equipped with a full closed cooling system with a fan, it measures 195x142x62mm and has a no-load power consumption of ≤5W. Certified with UL, CB, and CE, this charger provides a reliable and efficient solution for various Li-ion battery applications.

🛡️Protection Characteristics of 48-58.6V Li-ion Battery Charger TC1028

  • Over-voltage turn-off protection
  • Over-current turn-off protection
  • Short-circuit turn-off protection
  • Reverse polarity turn-off protection
  • Timing turn-off protection
  • Charger over-temperature turn-off protection
  • Battery reverse current
  • Inrush current of output
  • CAN communication function

🌡️Performance

  • Operating ambient temperature: -35℃ ~ 65℃
  • Storage ambient temperature: -40℃ ~ 95℃
  • Operating/storage ambient humidity: ≤85%

TC1028 Dimension

TC1028 DC line pins
