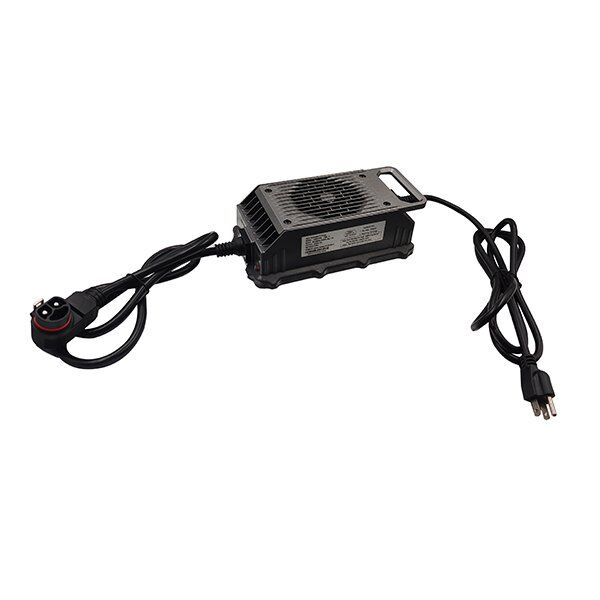

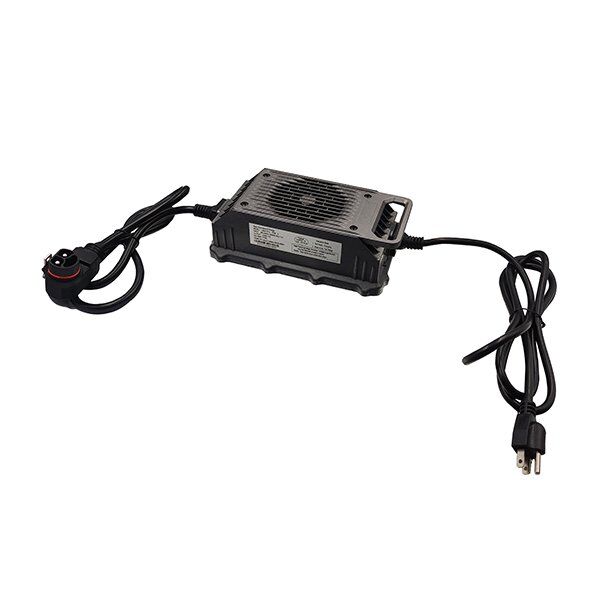

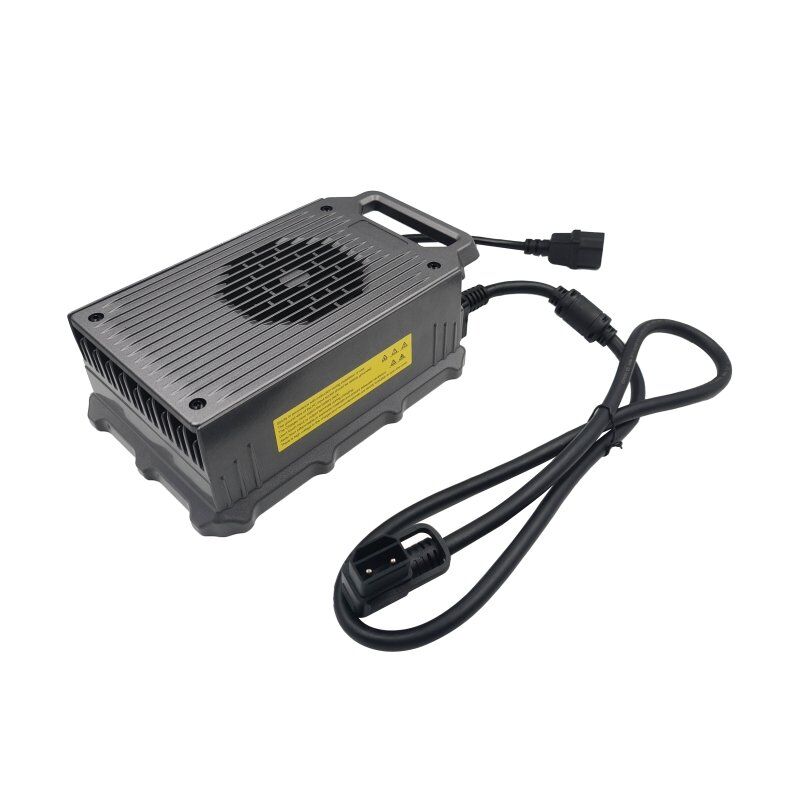

72-84.6V Li-ion Battery Charger TC1030

Fit for battery of 17-20S NCM and 20-23S LFP battery

Additional information

Input voltage

100-240Vac

Output voltage

72-84.6V

Charge current

15A

Rated output power

1350W

Fit for battery of

17-20S NCM and 20-23S LFP battery

Input voltage range

90-264Vac

Power consumption (no load)

≤5W (average)

Input current (full load)

≤8A

Efficiency

≥90%

CAN matching resistor

120Ω

Material housing

Metal shell

Cooling mode

Full closed with fan

Dimension

197*107*70.5mm

IP rating

IP65

Certification

CE

Discover more about 72-84.6V Li-ion Battery Charger TC1030

The 72-84.6V Li-ion Battery Charger TC1030 is designed for 17-20S NCM and 20-23S LFP batteries, delivering a powerful charge current of 15A and a rated output power of 1350W. With an input voltage range of 90-264VAC, it maintains an efficiency of ≥90%. Constructed with a durable metal shell, it features a full closed cooling system with a fan and measures 197x107x70.5mm. Rated IP65 for protection against dust and water, and operating with a no-load power consumption of ≤5W, this charger is CE certified, making it a reliable choice for various Li-ion battery applications.

🛡️Protection Characteristics of Li-ion Battery Charger TC1030

  • Output overvoltage protection
  • Output overcurrent protection
  • Input undervoltage protection
  • Temperature protection
  • No-load protection
  • Output voltage limit protection
  • Communication error protection
  • Battery reverse connection protection
  • Fault status indication
  • Automatically shut down when the battery is full
  • Temperature controlled air-cooling

🌡️Performance

  • Operating ambient temperature: -35℃ ~ 65℃
  • Storage ambient temperature: -40℃ ~ 95℃
  • Operating/storage ambient humidity: ≤85%

TC1030 Dimension

Aside from those products, we can provide customized chargers according to the customer’s needs and specifications.
