Have you ever heard of E-bike Range Extenders?
E-bikes have revolutionized the way we commute and explore, offering an eco-friendly, efficient, and versatile alternative to traditional bicycles and motorized vehicles. Their popularity has soared in recent years, driven by advancements in battery technology, design innovation, and a growing focus on sustainable transportation.
However, as versatile as e-bikes are, one common challenge for riders is range anxiety — the fear of running out of battery mid-journey. This is where e-bike range extenders come into play. These devices provide an additional power source, allowing riders to travel farther and tackle longer journeys without worry.
In this comprehensive guide, we will examine the role of e-bike range extenders in enhancing battery capacity and enabling extended travel distances. We will analyze their technical benefits and limitations, compare solutions from leading brands like Bosch, Mahle, Specialized, and Tritek, and provide insights into their integration with existing e-bike systems. Additionally, we will cover key considerations for mounting and maintaining range extenders, offering valuable information for businesses seeking to develop or supply the best range extender solutions.

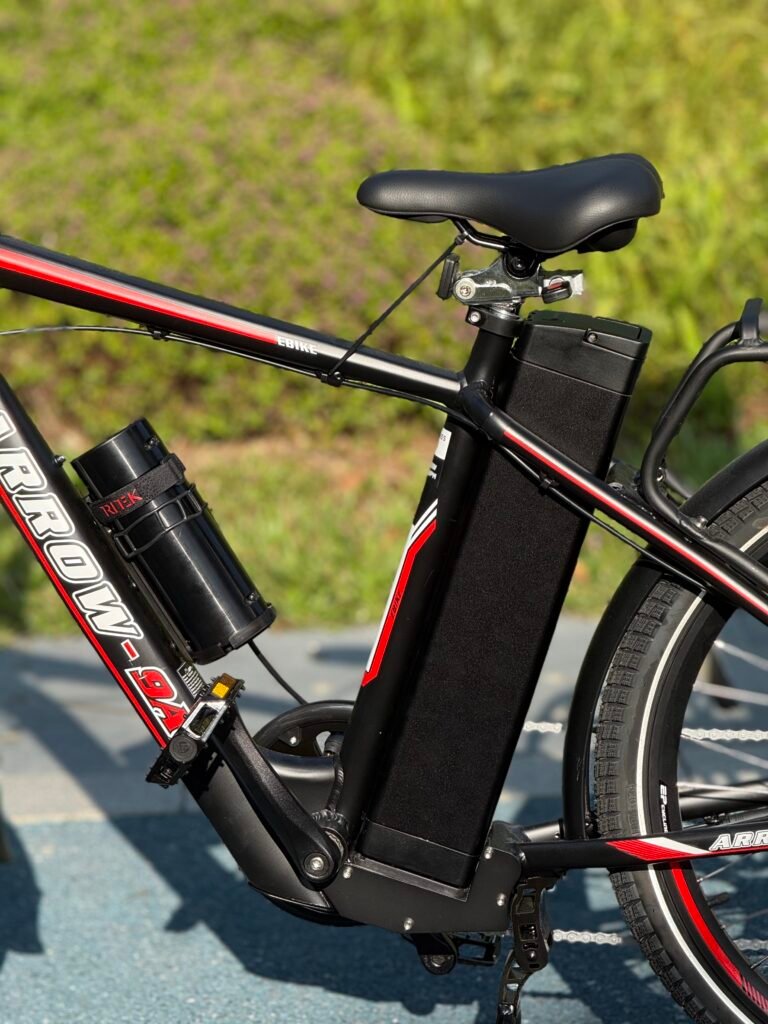

What is an E-bike Range Extender?
An electric bike range extender is an auxiliary battery pack designed to supplement the main e-bike battery, extending the bike’s overall range and enabling longer rides without the need for frequent recharging.
It is a practical solution for addressing range limitations, particularly for long-distance travel or challenging terrains.
How Range Extenders Work
E-bike range extenders connect to the main battery system in multiple ways, offering enhanced versatility:
- As a Charger: They supply power to recharge the main battery during a ride.
- As a Spare Battery: They automatically activate to provide energy once the main battery is depleted.
Common Types and Designs

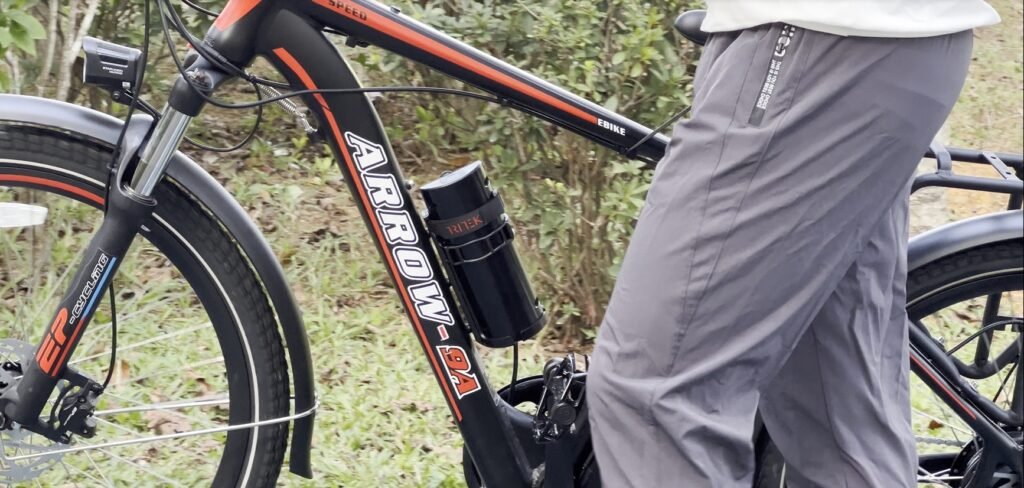

Most e-bike range extenders are external battery packs designed in a compact, water bottle-sized form. These portable units are typically mounted on the bike’s frame, such as the bottle cage or a dedicated bracket. They are easy to attach and remove, providing flexibility for riders who need additional range without permanently altering their e-bike setup.
Pros and Cons of E-bike Range Extenders
Pros
1. Increased Travel Range: Extends the e-bike’s overall distance capabilities, making it ideal for long rides or commutes.
2. Flexibility for Long-Distance Riders: Offers a practical solution for riders tackling variable terrains or multi-day trips without access to charging facilities.
3. Portable and Easy to Attach/Detach: Most range extenders are compact and designed for quick installation or removal, allowing users to adapt based on specific journey needs.
4. Dual Functionality: Can serve as a charger for the main battery or act as a spare battery, adding versatility to its usage.
Cons
1. Additional Weight and Bulk: Adds extra weight to the bike, which can affect handling and convenience, especially for riders prioritizing a lightweight setup.
2. Cost Considerations: Represents an additional expense, which might deter price-sensitive buyers or businesses.
3. Compatibility and Integration Challenges: Not all range extenders are universally compatible, requiring careful matching with the e-bike’s battery system and mount design.
Comparison of Range Extenders: Bosch, Mahle, Specialized, Tritek
| Item | Photo | Nominal battery voltage | Power | Weight | Energy density | Size | IP rating |
| Bosch PowerMore 250 |  | 36V | 241.2Wh | 1.5kg | 160.8Wh/kg | 200*88*75 mm | / |
| Tritek TP6080 |  | 36V | 176.4Wh | 1.25kg | 141.12Wh/kg | D78.5*210mm | IP67 |
| Tritek TP6125 |  | 48V | 235.2Wh | 1.6kg | 147Wh/kg | D78.5*210mm | IP67 |
| Mahle Range Extender SP1 |  | 36V | 208.8Wh | 1.6kg | 130.5Wh/kg | / | IP57 |
| Mahle Range Extender eX1 |  | 36V | 171Wh | 1.1kg | 155.45Wh/kg | / | IP57 |
| Specialized SL Range-Extender |  | 36V | 160Wh | 1.1kg | 149.45Wh/kg | D74*203mm | / |
How to Mount an E-bike Range Extender
Step-by-Step Guide to Installation
1. Identify the Mounting Location: Most range extenders are mounted on the bike’s bottle cage holder or a designated bracket on the frame. Ensure the location is compatible with the extender’s design.
2. Attach the Mounting Bracket:
- Secure the extender’s bracket or holder to the frame using screws. Many extenders use standard bottle cage mounts for easy installation.
- Tighten screws firmly but avoid over-tightening to prevent damage.
3. Connect the Extender to the Main Battery System
- Plug in the connector cable to link the range extender with the e-bike’s power system.
- Ensure the connection is secure and matches the polarity requirements to avoid electrical issues.
4. Secure the Range Extender: Slide the range extender into the bracket until it locks securely. Check for a snug fit to prevent movement during rides.
Safety Tips:
- Turn off the e-bike system before installation to prevent electrical mishaps.
- Ensure connectors and cables are free from dirt or moisture for a stable connection.
- Regularly inspect mounting hardware to ensure it remains tight and secure.
Troubleshooting Common Issues
1. Loose Connections: Double-check all cables and connectors if the extender fails to work.
2. Mounting Stability: Tighten screws or adjust the bracket if the extender shifts during rides.
3. Power Issues: Ensure the extender is charged and properly connected to the e-bike’s power system.
4. Integration Problems: Update e-bike firmware or consult the manufacturer for specific compatibility settings.
Factors to Consider When Choosing a Range Extender
1. Compatibility with Existing E-bike Models
- Ensure the range extender is compatible with the e-bike’s main battery system, mount design, and software.
- Check for matching voltage, connector types, and Battery Management System (BMS) integration.
2. Battery Capacity and Weight
- Evaluate the extender’s capacity (measured in watt-hours) based on the range requirements. Higher capacity extenders offer more range but may add significant weight.
- Consider the balance between extended range and the impact of additional weight on handling and portability.
3. Ease of Mounting and Detaching
- Look for designs that are straightforward to install and remove, especially if the extender is not permanently needed.
- Systems compatible with standard bottle cage mounts often provide the most convenient setup.
4. Brand Reputation and After-Sales Support
- Opt for extenders from reputable brands with a proven track record in the e-bike industry.
- Reliable after-sales support is crucial for troubleshooting, maintenance, and ensuring long-term performance.
5. Certification Consideration
When choosing a range extender, ensure it has the necessary certifications to guarantee safety and compliance with international standards. Key certifications to look for include:
- UN38.3: Ensures the battery has passed safety tests for transport, confirming that it is safe for shipping and usage.
- UL (Underwriters Laboratories): Certifies that the product has been tested for electrical safety and meets high safety standards. (e.g UL2271)
- CE (Conformité Européenne): Indicates compliance with European safety, health, and environmental protection regulations. (e.g EN15194, EN50604)
- IEC (International Electrotechnical Commission): Validates that the product adheres to international electrical and electronic standards, ensuring quality and safety. (e.g IEC 62133, IEC 60364)
Factors Affecting E-bike’s Range
Understanding the factors that influence your e-bike’s range is crucial for maximizing its performance and ensuring you get the most out of every ride. Here are some key elements that can impact how far you can travel on a single charge:
- Terrain: Riding uphill or on uneven terrain requires more battery power, which can significantly reduce your e-bike’s range. Flat, smooth surfaces are ideal for conserving energy.
- Riding Style: Aggressive riding, such as rapid acceleration and frequent braking, can drain the battery faster. Maintaining a steady pace and smooth riding style can help extend your e-bike’s range.
- Battery Capacity: The size and type of your e-bike battery play a major role in determining how far you can go. Higher capacity batteries offer more range but may add weight to your bike.
- Age of the Battery: E-bike batteries can lose their capacity over time, reducing the overall range. Regular maintenance and proper charging habits can help prolong battery life.
- Weight of the Rider and Cargo: The more weight your e-bike is carrying, the more battery power it will need. This includes the rider’s weight and any additional cargo, such as bags or groceries.
- Tire Pressure and Type: Properly inflated tires with the right tread can improve your e-bike’s efficiency. Under-inflated or inappropriate tires can increase rolling resistance and reduce range.
By being mindful of these factors, you can better manage your e-bike’s battery life and enjoy longer, more efficient rides.
Future Trends in E-bike Range Extenders
Higher Capacities: As e-bike usage increases, there will be a growing demand for range extenders with higher energy capacities, enabling longer rides without the need for frequent recharging. Future extenders may feature next-gen battery cells like solid-state or higher energy density lithium-ion, significantly improving range.
Lighter Designs: To counter the added weight that extenders bring to bikes, advancements in lightweight materials (such as carbon fiber or aluminum alloys) will be incorporated into future designs. This will help maintain the e-bike’s balance and handling while still offering extended range.
Advanced Battery Management: Future range extenders will likely integrate more sophisticated Battery Management Systems (BMS) for better power distribution, faster charging, and enhanced cycle life. Integration with smart systems could allow riders to track power usage and optimize battery performance in real-time.
Conclusion
E-bike range extenders offer an effective solution for enhancing the distance you can travel on an e-bike. Whether used as a spare battery or a charger for the main battery, these extenders increase flexibility and reliability for long-distance riders. Considerations such as compatibility, battery capacity, weight, cost, and certifications like UL and CE are essential in choosing the right solution.
