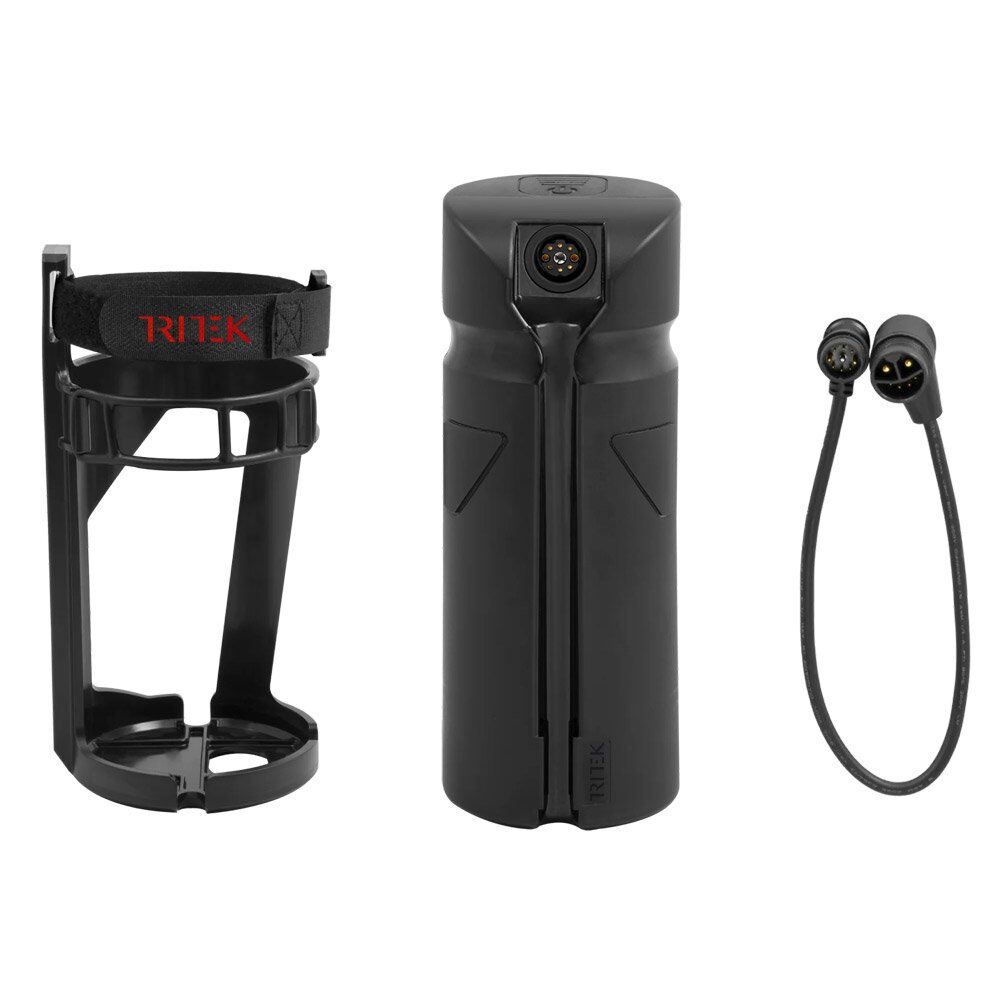

36V E-bike Range Extender TP6033 / TP6080

Smart, light, range extender, high-efficiency charger

Compatible with most bike frames. It can work as a portable charger or battery. Both use cases support dual battery connections. The sealing applied with IP67 is a plus.

Additional information

Cell Type

NCA 21700, Samsung INR21700-50GB

Cell Structure

10S1P

Voltage

36V

Capacity

4.9Ah

Standard Charge Current

2A

Discharge rate

3.3A continuous as a charger, 8A continuous as a battery

Cycle Life

≥70%@500 cycles

IP rating

IP67

Weight of battery

1.3kg

Smart BMS

CAN, CAN Open

Case material

Aluminum + PC

Case Type

Range extender

Certification

CE, EN 15194:2017, FCC, ROHS, UN-Package, UN38.3

Operating Temperature(Charge)

0°C~45°C

Operating Temperature(Discharge)

-20°C~60°C

Discover more about 36V E-bike Range Extender TP6033 / TP6080

🔖Reference

The range extender is one of our best sellers. This model is designed to be the charger for the main battery, supporting 3-6A continuous output current.

Its key features are high efficiency, small size, and flexibility.

🔋🔌Two Uses

Item External Charger 36V (TP6033) External Battery 36V (TP6080)
Power 36V, 4.9Ah, 176.4Wh 36V, 4.9Ah, 176.4Wh
Cell model and configuration Samsung INR21700-50GB-10S1P Samsung INR21700-50GB-10S1P
Charge current / input 2A standard 2A standard, 4.0A max
Peak charge current / input 3A max 4.9A
Discharge current / output 2.5-3A@42V /
Max continuous discharge current 3.3A 8A
Peak discharge current N/A 15A
Pre-charge Applicable with Tritek charger
(anti-spark while connected with charger)
Applicable with Tritek charger
(anti-spark while connected with charger)
Pre-discharge Yes (anti-spark while connected with main battery) Yes (anti-spark while connected with controller)

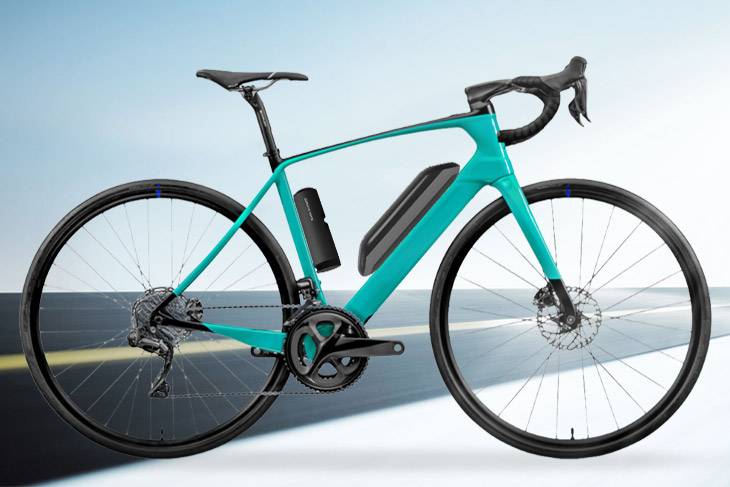

Hot swapping / Support 2 batteries in parallel
Communication protocol Tritek CAN protocol Tritek CAN protocol
Size D78.5*210mm D78.5*210mm
Weight 1.30kg 1.25kg
Sealing IP67 IP67
BMS Model TP6033 TP6080
DC auxiliary output 3-3.3A@42V 5V/2A
2nd protection – UL2271 Yes Yes
Power consumption – deep sleep mode ≤50uA ≤50uA
Power consumption – run mode ≤10mA ≤10mA
Cycle life ≥70%@500 cycles ≥70%@500 cycles
Certification UN38.3, EN15194, CE, FCC, UL2271, ROHS, REACH…etc

e bike range extender tk0005

e bike range extender tk0005

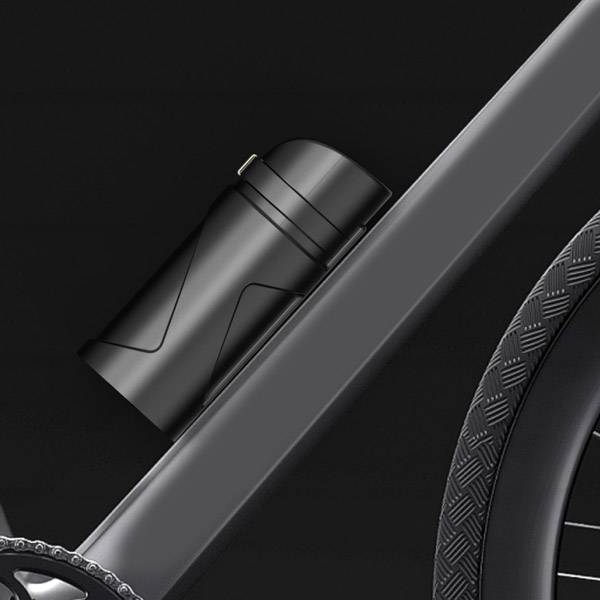

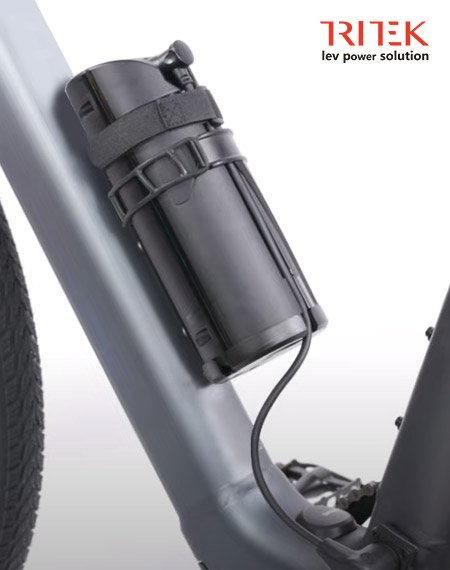

📚How to mount an e-bike range extender on the frame?

Enjoy the most accessible and most convenient mounting on the bike frame. The assembly of the battery holder is the same as a water bottle holder. That is why it can match many bike racks and you can save your budget and time.

📋Product details show

e bike range extender tk0005📋Features

  • Compatible with the most bike frame
  • Lightweight – only 1.3kg
  • LED power display
  • Good consistency: free of charge for 6 months
  • Low self-discharge: deep sleep mode for storage
  • Waterproof IP67

🌡️Performance

  • Charge temperature: 0-45℃
  • Discharge temperature: -20-60℃
  • Battery life: minimum 500 cycles

🛡️Protection Functions

  • Overcharge voltage
  • Over discharge voltage
  • Over temperature protection
  • Cell balance
  • Provides the current status of the battery
  • Provides calendar information
  • Short Circuit Protection
  • CAN bus communication interface

🔌Connector Type

e bike range extender tp6033 / tp6080 No. Specification Remark
PIN1 P+/C+
PIN2 P-/C-
PIN3 CAN H
PIN4 /
PIN5 CAN L
PIN6 COM
PIN7 / Detection port, normal output 3.3V,
0V output if with loading.
PIN8 /

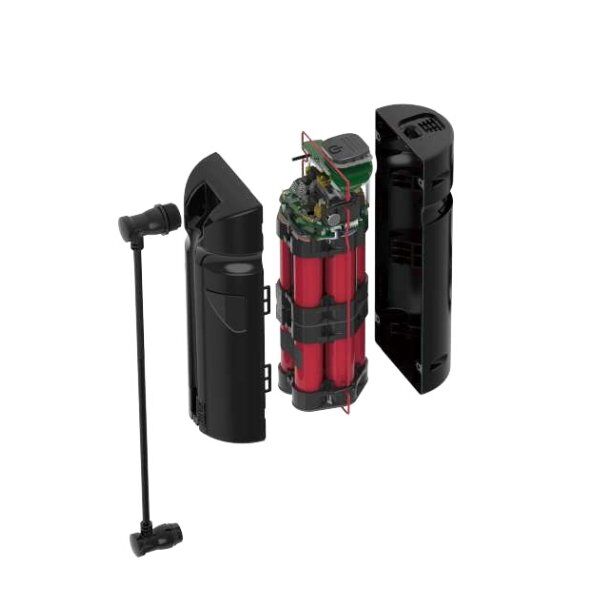

🔋Cell arrangement

e bike range extender tp6033 / tp6080





e bike range extender



e bike range extender 1

e bike range extender 2

Aside from those products, we can provide customized packs according to the customer’s needs and specifications.

🔋 E-bike Range Extender: Smart, Light, and Efficient Charger

  • 🚴 Versatile Compatibility: Fits most bike frames, serving as a portable charger or battery. Supports dual battery connections. IP67 sealing for added durability.
  • 🔌 High-Efficiency Charging: Designed as a charger for the main battery, providing 3-6A continuous output current.
  • 📏 Compact and Flexible: Compact size, high efficiency, and flexible usage options make it a versatile choice.
  • 🔧 Easy Mounting: Attaches to the bike frame like a water bottle holder, compatible with various bike racks, saving you both budget and time.
  • 📊 LED Power Display: Keep track of your battery’s power status at a glance.
  • 🔋 Long Battery Life: Minimum 500 cycles, ensuring lasting use.
  • 🛡️ Protection Functions: Features various protections including overcharge voltage, over discharge voltage, over-temperature protection, cell balance, and short circuit protection.
  • 📆 Battery Status Information: Provides real-time battery status and calendar information.
  • 🔌 CAN Bus Communication Interface: Equipped with a CAN bus communication interface.
  • 🔌 Connector Type: Model Cusmade2+6PIN, offering versatile pin connections for easy setup.
  • 🌡️ Temperature Tolerant: Operates in temperatures ranging from 0°C to 45°C for charging and -20°C to 60°C for discharging.
  • ⚖️ Lightweight: Weighs only 1.3kg for minimal added weight to your e-bike.
  • Low Self-Discharge: Deep sleep mode for storage ensures your battery is always ready when you are.

Experience the convenience and flexibility of our E-bike Range Extender. Elevate your e-bike’s range with ease.
