Phase 1: BMS (Battery Management System) Manufacturing Process
The BMS is the “brain” of a lithium-ion battery pack. It monitors voltage, temperature, and current while preventing overcharging, overheating, and short circuits. Here’s how it’s made:
1.1 Material Loading
- The process begins with a bare Printed Circuit Board (PCB).
- Components like resistors, capacitors, microcontrollers, and MOSFETs are prepared for placement.
1.2 Tin Solder Paste Application
- A solder paste stencil is aligned over the PCB.
- A squeegee spreads tin-based solder paste onto the board, leaving deposits only where components will attach.
- This paste acts as both an adhesive and conductive material.
1.3 Online SPI (Solder Paste Inspection)
After the solder paste is applied, an Online SPI system inspects the paste layer. This automated process checks for issues like inadequate paste application, uneven distribution, or potential short circuits. By detecting flaws early, this step prevents future problems during assembly.

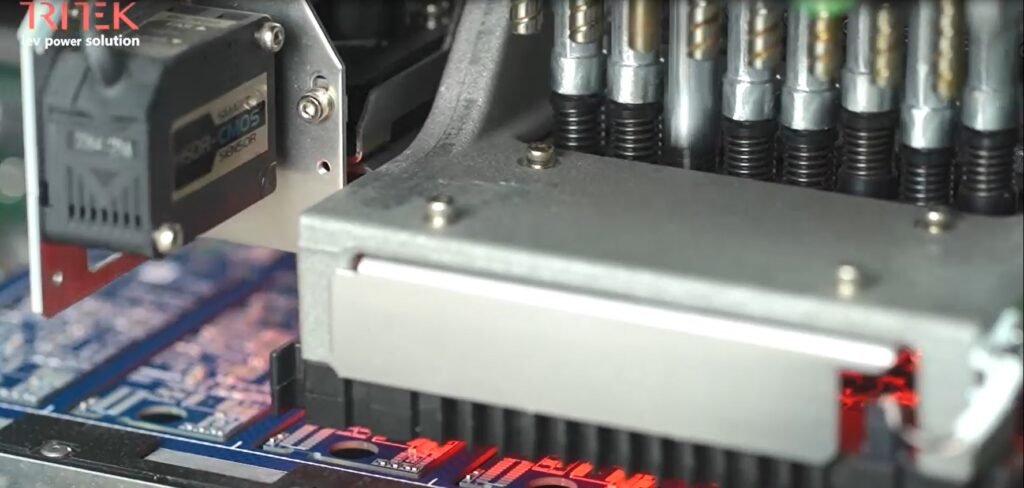

1.4 Electronic Component Soldering
With the paste in place, tiny electronic components like microchips, capacitors, resistors, and connectors are precisely positioned onto the board by robotic arms. This step requires incredible accuracy, as these parts are often smaller than a grain of rice.
1.5 AOI (Automated Optical Inspection) Test
A high-resolution camera scans the board to check:
- Correct component placement
- Misaligned or missing parts
- Solder paste spread
Early detection prevents costly rework later.
1.6 Reflow Soldering
The board then enters a reflow oven, where it’s heated to melt the solder paste. This fuses the components to the board, creating strong electrical connections. The temperature is carefully controlled to avoid damaging delicate parts.
1.7 AOI Test (Post-Reflow)
After the reflow process, another round of AOI inspection occurs to detect any defects that might have occurred during the heating process.
1.8 Material Unloading
Once the BMS passes inspection, it’s unloaded from the production line, ready to be integrated into the battery pack.
Phase 2: PACK Assembly Process
With the BMS ready, it’s time to build the battery pack itself. This phase combines the cells, BMS, and casing into a finished product. Here’s how it happens:
2.1 BMS Testing
Before integration, the BMS is tested for functionality. Engineers check its ability to monitor voltage, balance cell charges, and detect issues, ensuring it’s up to the task.
2.2 Cell Sorting
Lithium-ion cells aren’t identical straight off the production line. They’re sorted by capacity and voltage to ensure consistency within the pack. Mismatched cells could lead to uneven performance or safety risks.
2.3 Cell Mounting
Sorted cells are arranged into modules or directly into the pack’s layout. This step often involves placing them in holders or frames to keep them secure and aligned.
Proper cell arrangement prevents overheating and enhances overall battery efficiency.
2.4 Battery Module Resistance Welding
At this stage, resistance welding is used to join the cells together within the module. This welding process generates heat to create strong, durable connections between the cells. Resistance welding is crucial for ensuring the structural integrity of the battery pack.
2.5 Laser Welding
Laser welding is then used for precision welding, particularly for the connections between the battery cells and their terminals. This method offers high accuracy, ensuring clean, reliable, and safe connections that won’t degrade over time.
2.6 Battery Pack Function Test
After the cells are connected, the battery pack undergoes a comprehensive function test. This test checks the pack’s electrical functionality, including charge and discharge cycles, safety features, and overall system integration with the BMS. The function test is essential for identifying any issues before the pack is sent for further processing.
2.7 Shell Gluing
The pack is then encased in a protective shell, often made of plastic or metal. Adhesives are applied to seal the shell, safeguarding the internals from dust, moisture, and physical damage.
2.8 Battery Aging
Before shipping, the pack is “aged” under controlled conditions, charged and discharged multiple cycles. This stabilizes the cells’ chemistry and reveals any early defects.
2.9 Air Tightness Testing
To confirm the shell is sealed properly, air tightness testing is conducted. The pack is pressurized or placed in a vacuum chamber to detect leaks that could compromise longevity.
2.10 PACK Finished Product Testing
Finally, the completed pack is put through a rigorous final test. This checks everything from electrical output to safety features, ensuring it’s ready for real-world use.
Quality Control in the Manufacturing Process
Throughout the entire manufacturing process, quality control is a key component in ensuring the final product is safe and reliable. Each stage, from the BMS soldering to the final pack testing, includes several rounds of inspection. Automated Optical Inspection (AOI), function testing, and environmental tests are just a few of the methods used to maintain high standards.
Additionally, battery packs are subjected to stringent global certification (like UL, CE, and IEC) to meet global market entry compliance
