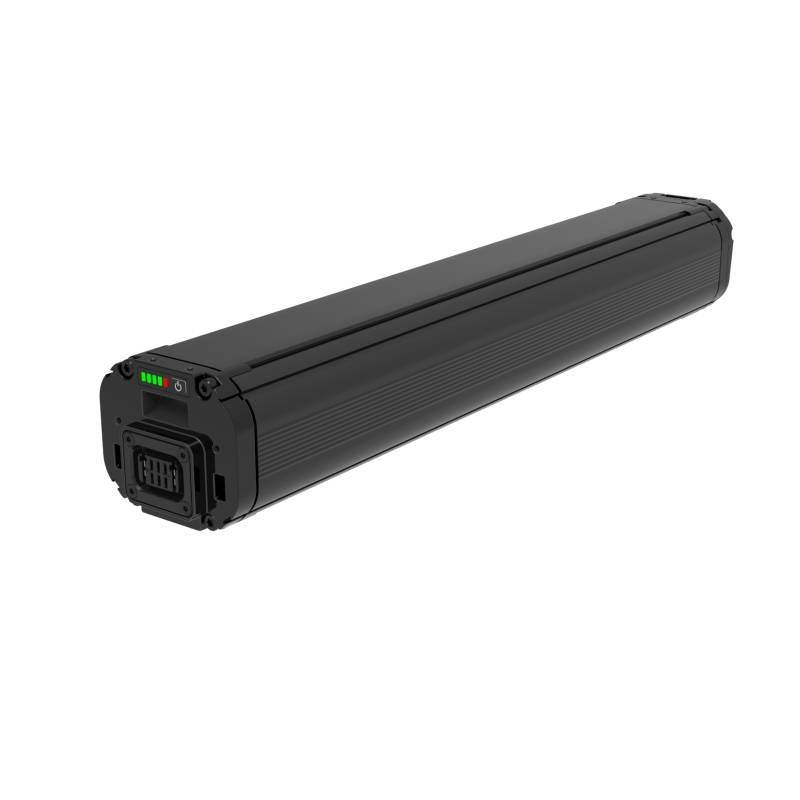

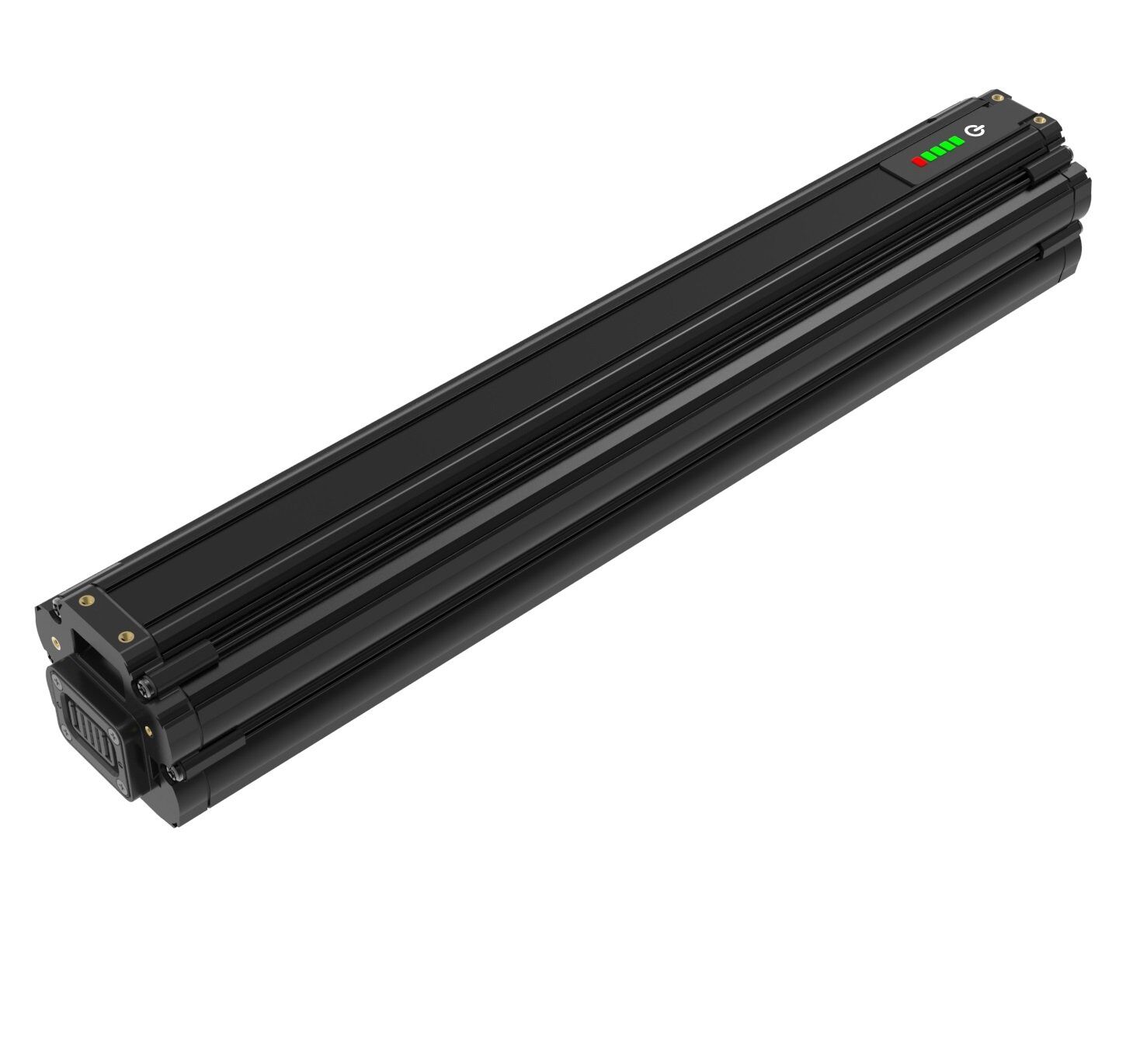

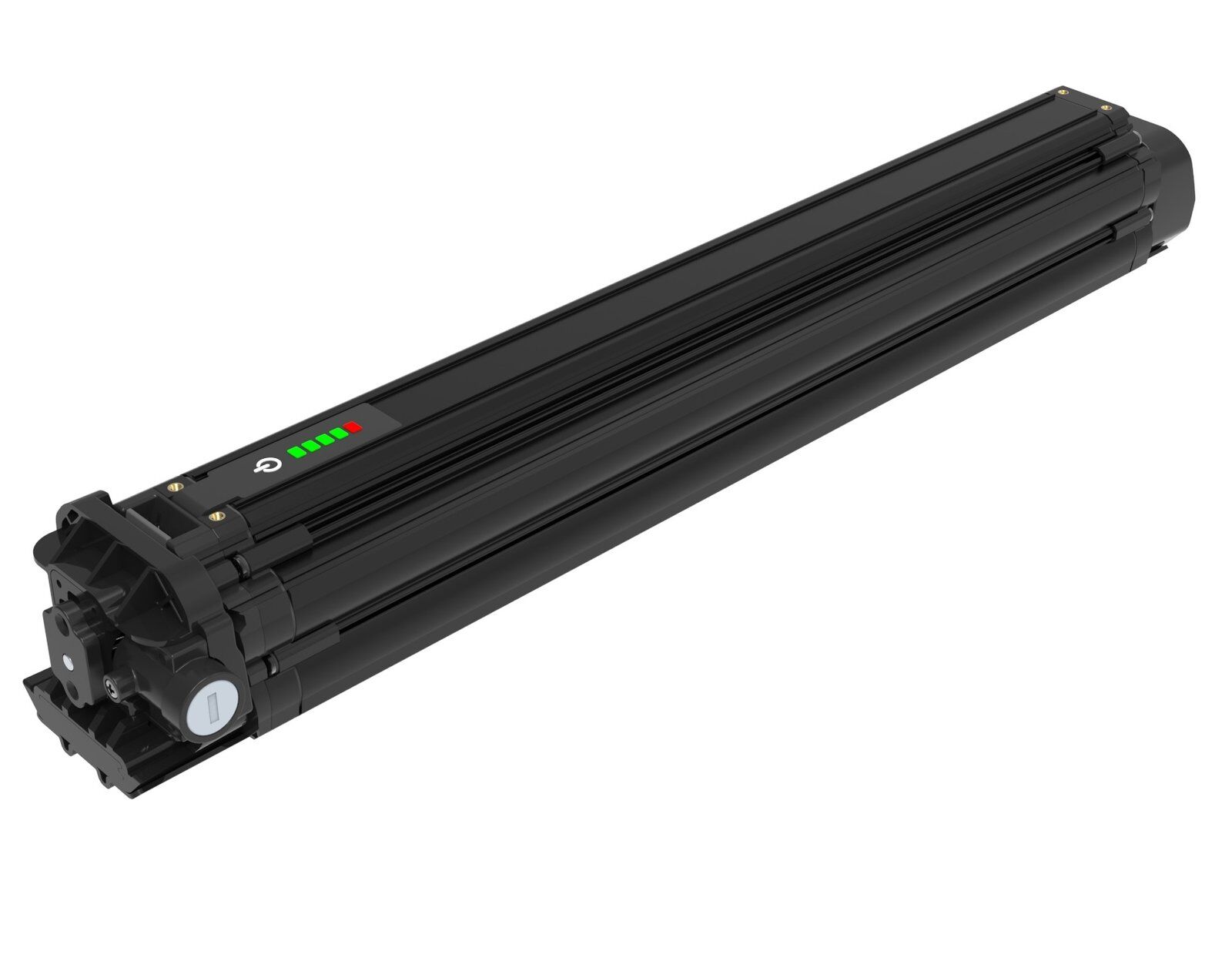

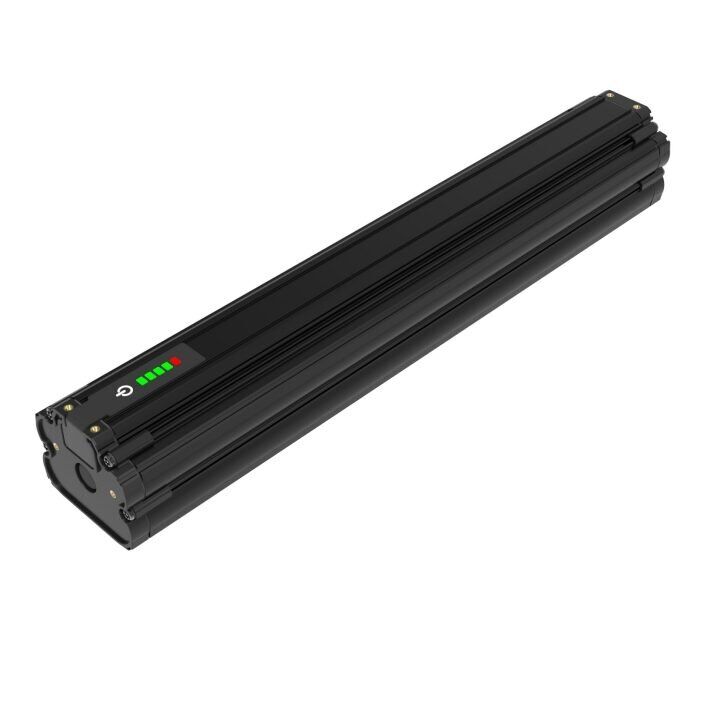

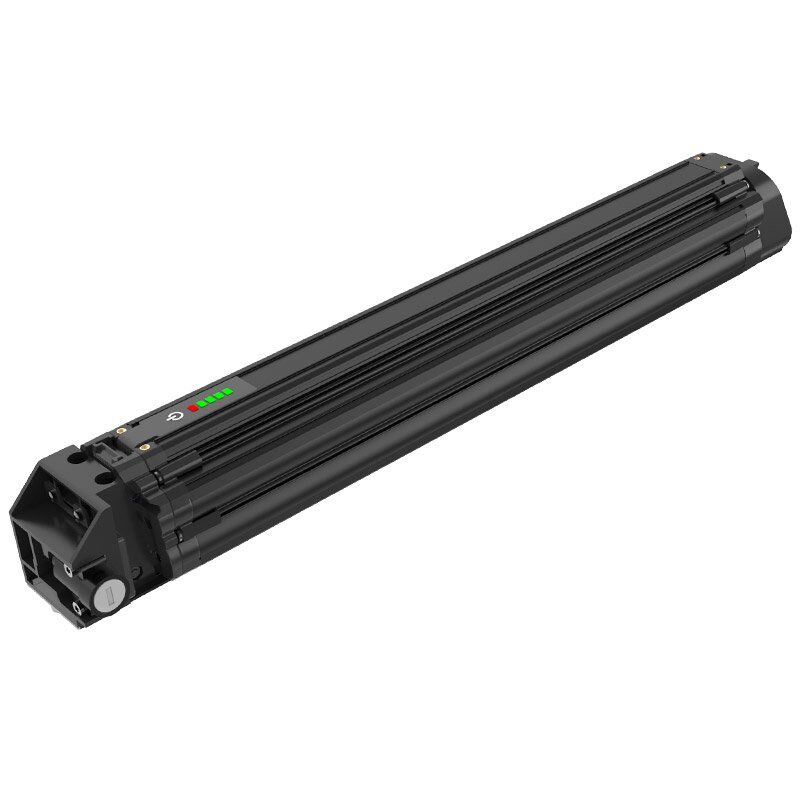

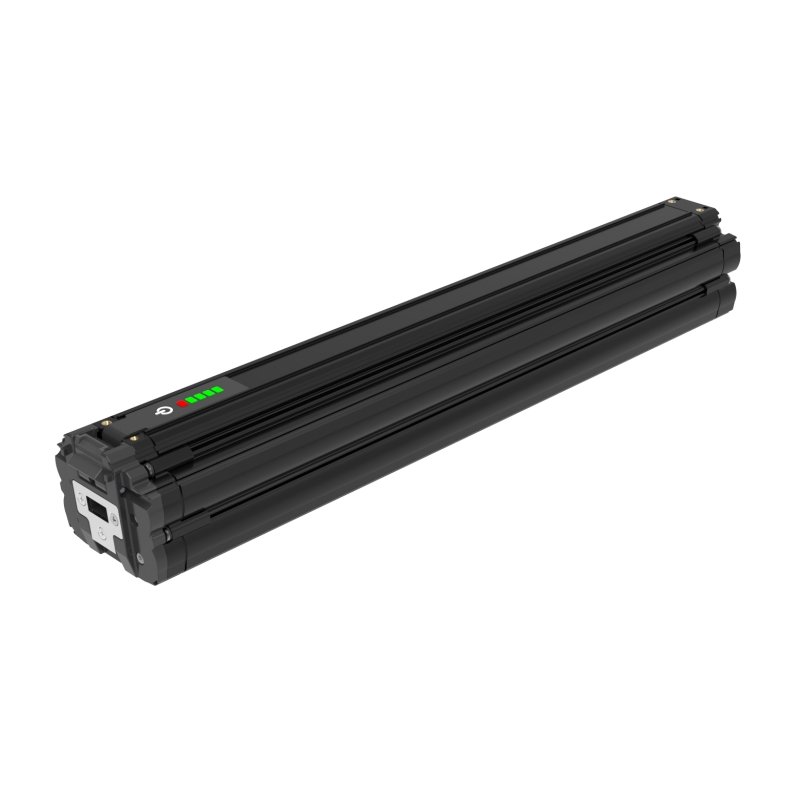

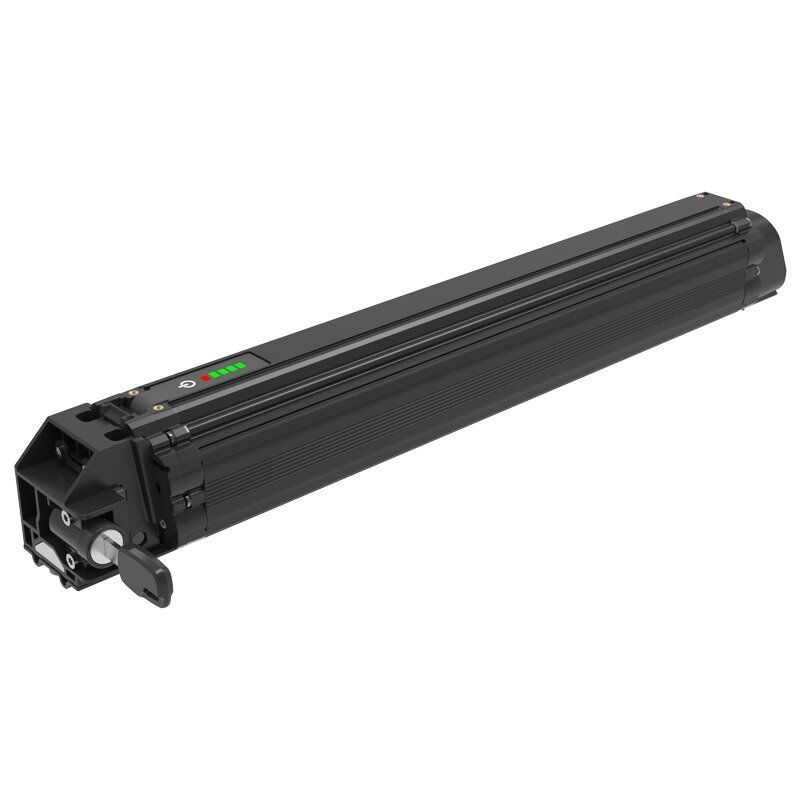

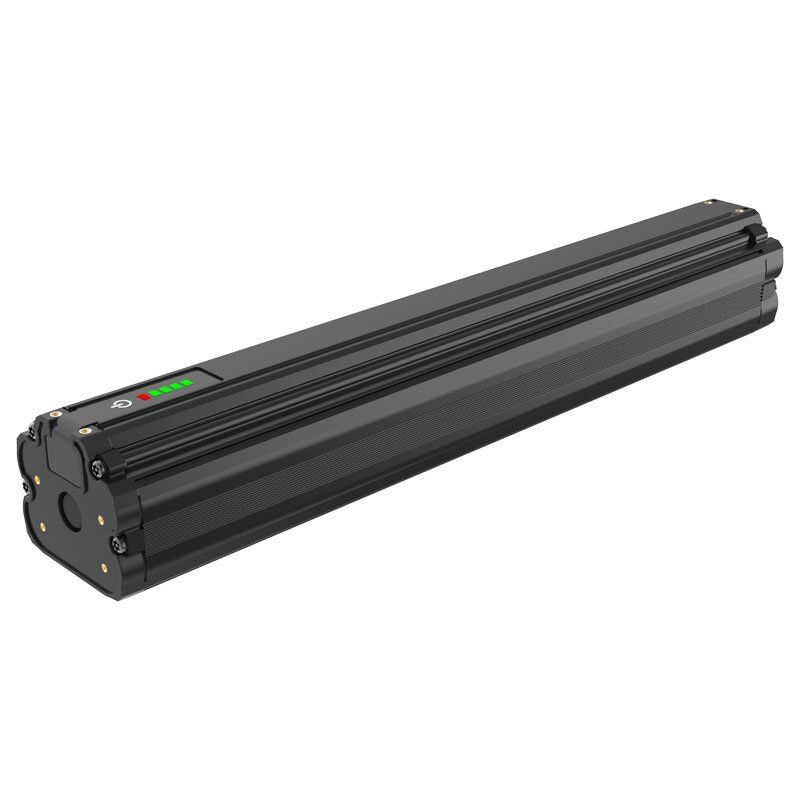

i Series 36V/48V eBike Inner/Down Tube Battery TP6136/TP6137

IP67, dual battery solution, compact and high power, intelligent, safe, suitable for mountain bike, road bike, city bike…

Additional information

Power

36V, 14.7Ah, 529.2Wh / 36V, 16.5Ah, 594Wh
48V, 9.8Ah, 470.4Wh / 48V, 11Ah, 528Wh

Case material

Aluminum+PC

IP rating

IP67

Cycle Life

≥80% @ 500 cycles

Certified

CE, UN38.3, ROHS, REACH

Compliant

EN50604, FCC, UL2271

Discover more about 36V/48V eBike Inner/Down Tube Battery TP6136/TP6137

The 36V/48V eBike Inner/Down tube Battery TP6136/TP6137 delivers up to 600Wh of power, featuring Samsung 21700-50GB or 21700-58E cells in a 10S3P or 13S2P configuration. It supports a maximum continuous discharge of 25A, ensuring reliable high performance. Designed for urban commuting, off-road biking, and long-distance tours, it provides dependable power for various terrains and demanding conditions. With a robust aluminum+PC case and an IP67 rating, it offers durability and protection against harsh environments.

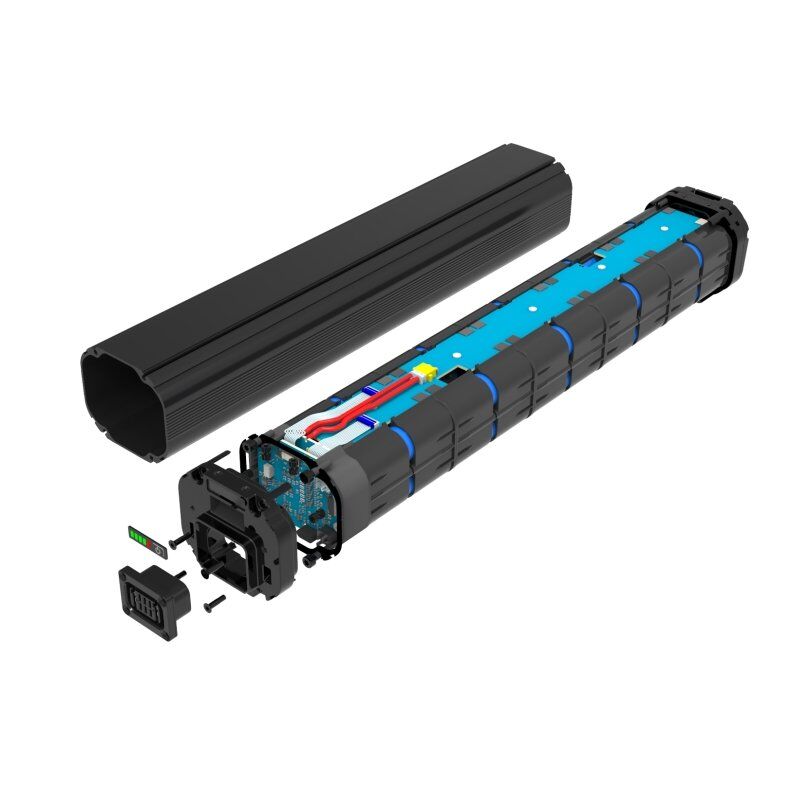

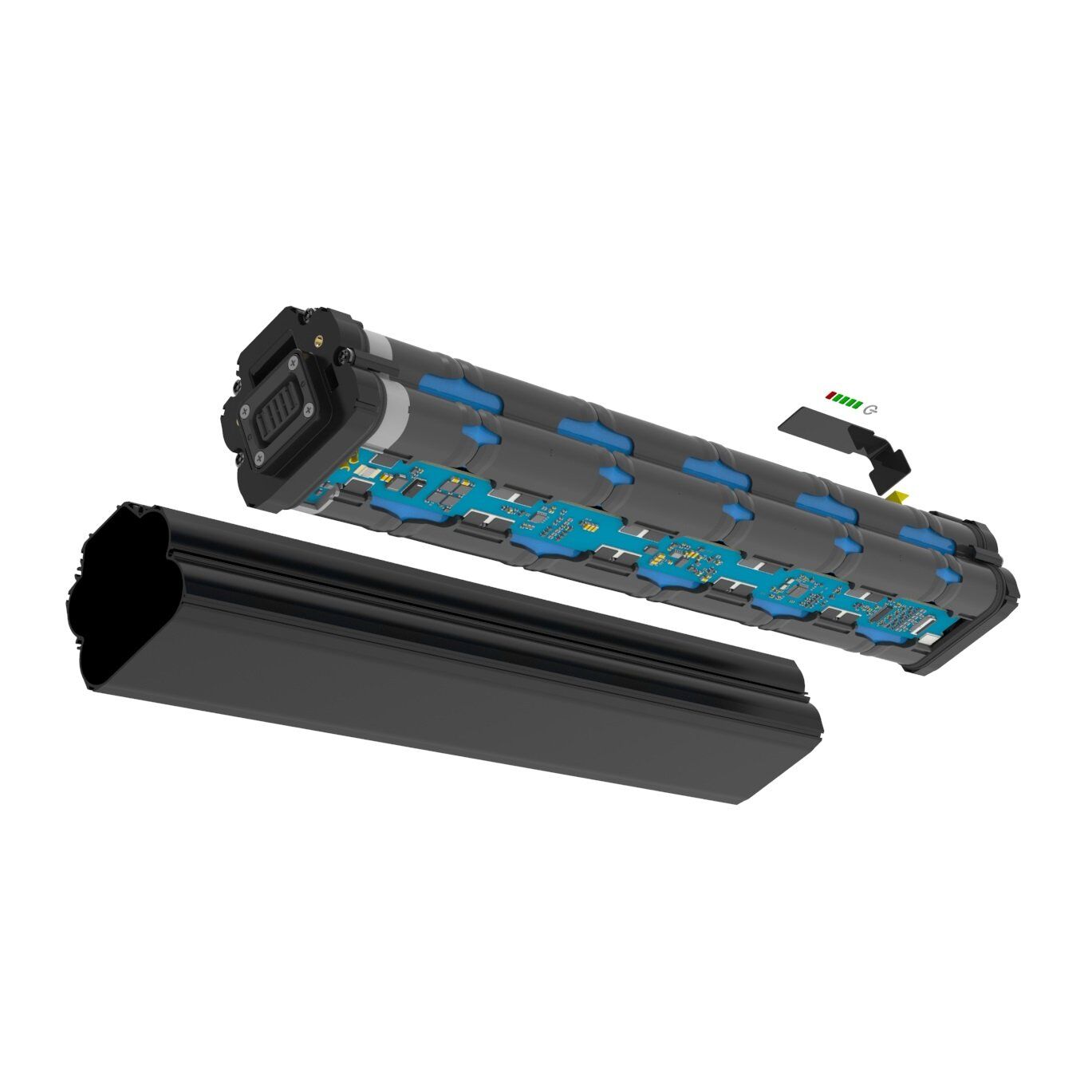

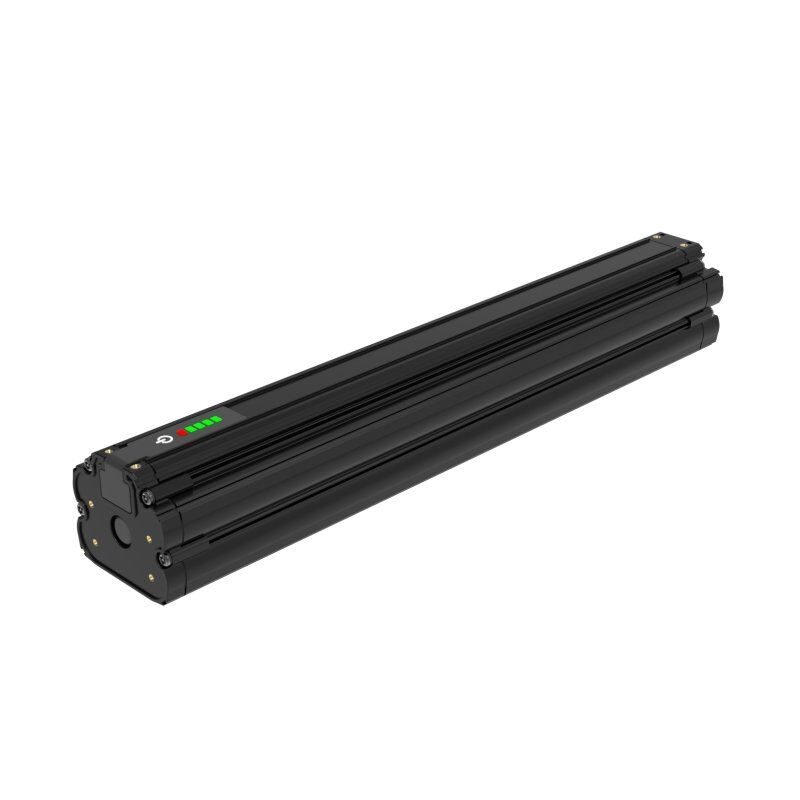

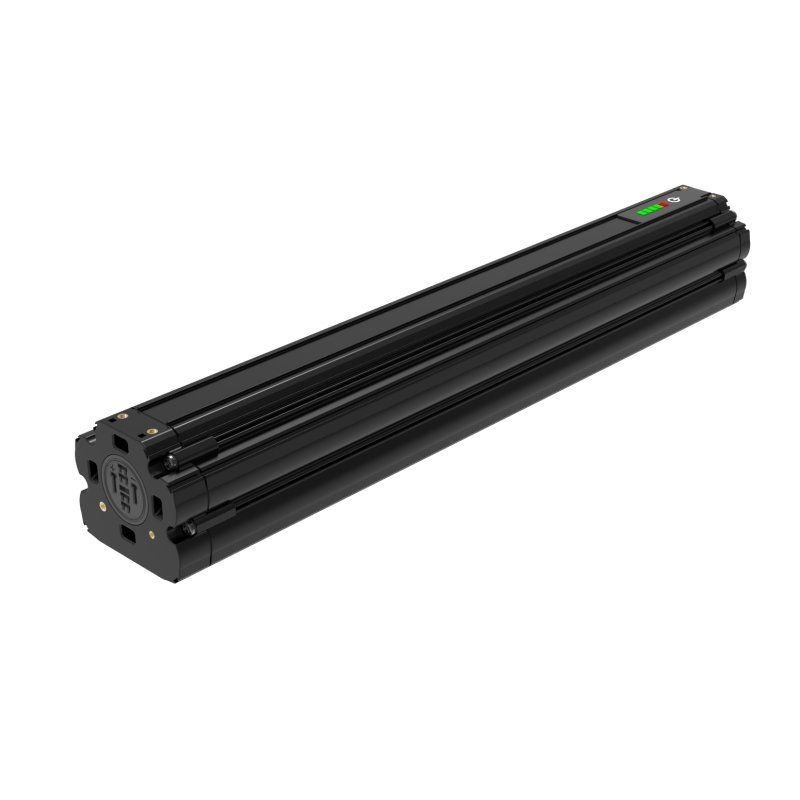

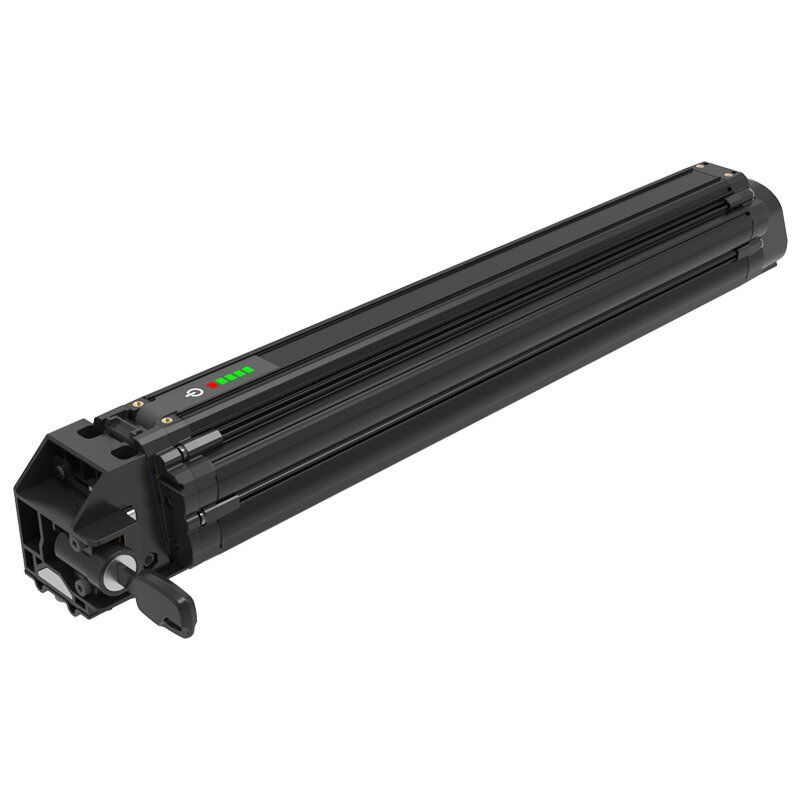

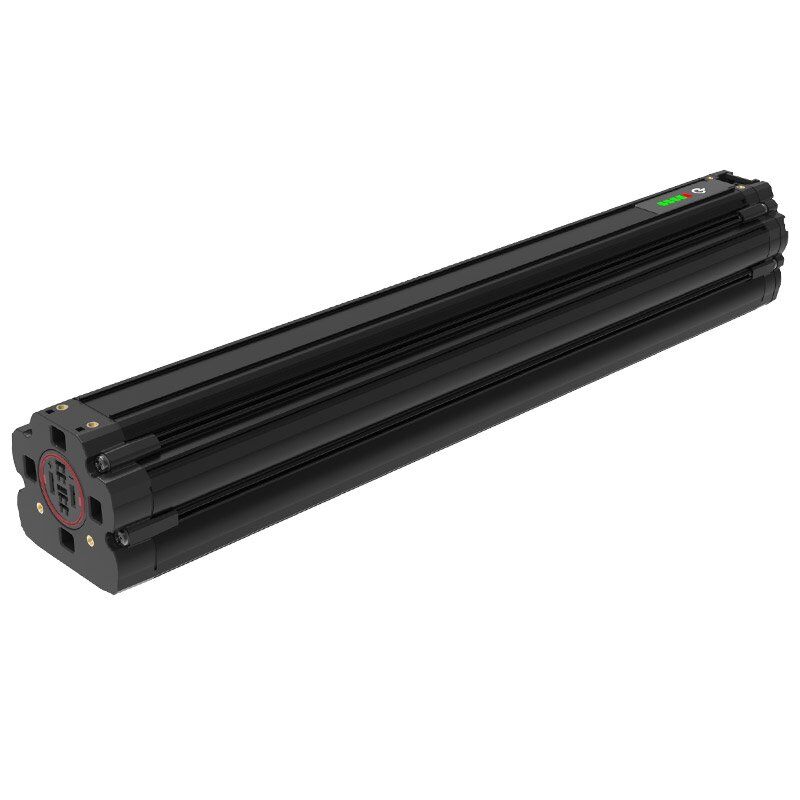

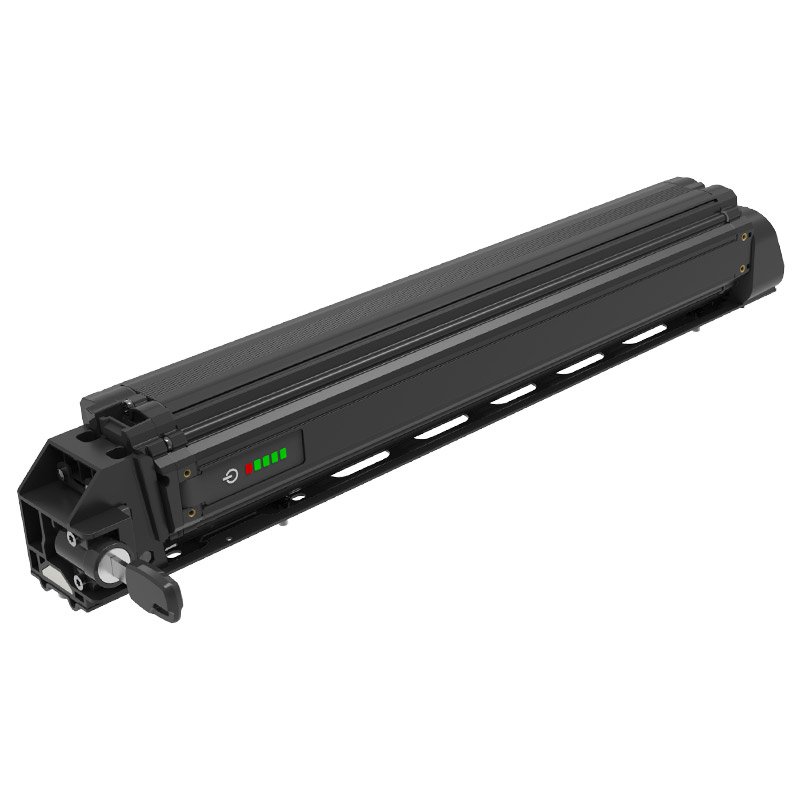

36v/48v ebike inner/down tube battery tp6136/tp6137

🔋Various Options

Product no. TP6136-01 TP6136-02 TP6137-01 TP6137-02
Tube cross section 36v ebike inner tube battery tp6136

36v ebike inner tube battery tp6136

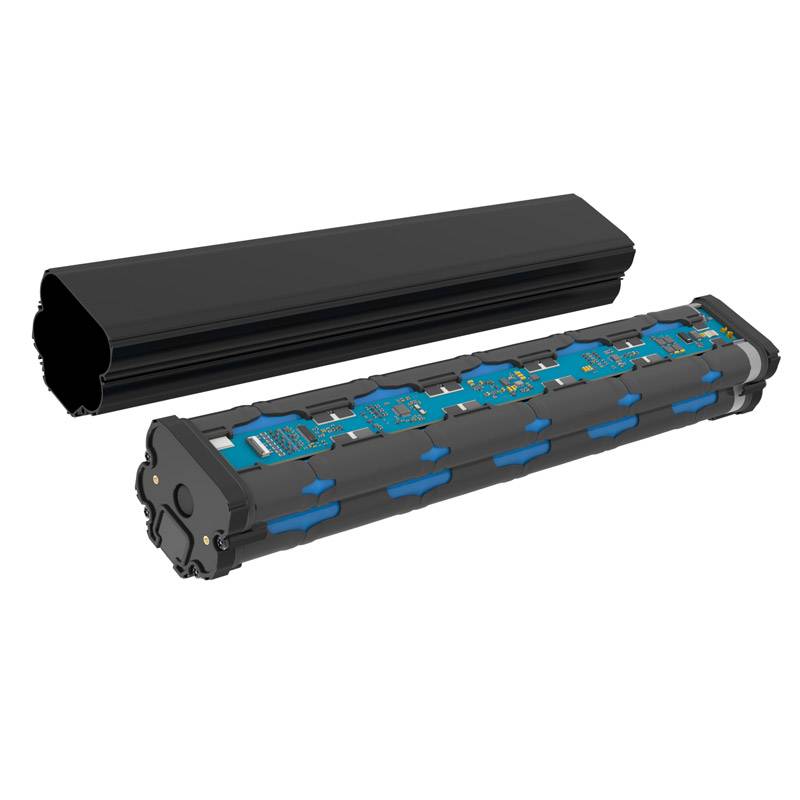

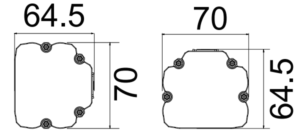

Battery cross section 36v ebike inner tube battery tp6136
Battery voltage 36V 36V 48V 48V
Battery capacity 14.7Ah 16.5Ah 9.8Ah 11Ah
Battery power 529.2Wh 594Wh 470.4Wh 528Wh
Cell configuration 10S3P 10S3P 13S2P 13S2P
Cell type Samsung 21700-50GB Samsung 21700-58E Samsung 21700-50GB Samsung 21700-58E
Battery sizes(mm) 420*70*64.5
Battery holder sizes(mm) 64.5*64.5*483
Battery weight 3.0kg 3.2kg 2.9kg 3.12kg
Integration with Range extender yes yes yes yes
Swappable yes yes yes yes
Hot swappable yes yes yes yes
Parallel connection in process in process in process in process
DC auxiliary output-12V2A 12V2A,6V2A
DC auxiliary output-12V4A 12V 4A,6V 4A
Standard discharge current 14.7A 16.5Ah 9.8A 11A
Max continuous discharge current 25A 25A 19.6A 22A
Continuous energy recovery current NA NA NA NA
Short circuit protection yes yes yes yes
Smart BMS CAN 2.0
Baud rate 250K/500K
Cycle life ≥80%@500cycles
IP rating IP67
Case material Aluminum+PC
Certification-standard CE, UN38.3, ROHS
Certification-compliant FCC, UL2271, EN50604
Customized protocol yes yes yes yes

📋Key Features

🛡️Safety

✅Top Cell only: No fire, no explosion!

✅Pre-charge and pre-discharge protection: No spark, adjust current&voltage automatically, surge current protection!

✅Excellent thermal rise management: Longer lifespan, greater safety!

✅BMS and APP: Intelligent and safe BMS battery guard!

  • Cutting-edge Innovation: Over 90% test coverage for accurate battery monitoring
  • Dual Protection: Robust hardware and firmware dual safeguards
  • Precise SOC Management: Accurate insights into battery capacity
  • Comprehensive protection: Overcharge, over-discharge, over-temperature, short circuit, etc
  • Communication Interface: CAN, CAN OPEN, UART, RS485…
  • Multiple Functions: 4G, Bluetooth, E-lock, GPS, USB-C, DC Aux. modules…

triteks smart bms monitoring and management

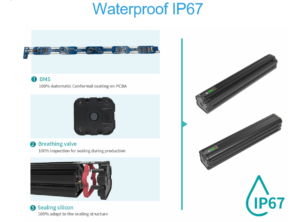

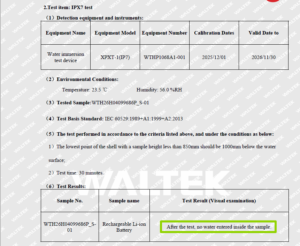

✅Waterproof IP67: No concern in hasrh environments!

IP67

Global recognition: ISO9001, IATF16949, UL, UN, IEC/EN certified, meets market entry requirements globally

Certification

🌐Intelligence

✅Hot-swapping with automatic ID setting: No downtime, swap and go!

✅Dual battery solution: Increase power or range, whatever you want!

  • Simultaneous discharge increases power
  • Sequential discharge extends the range.

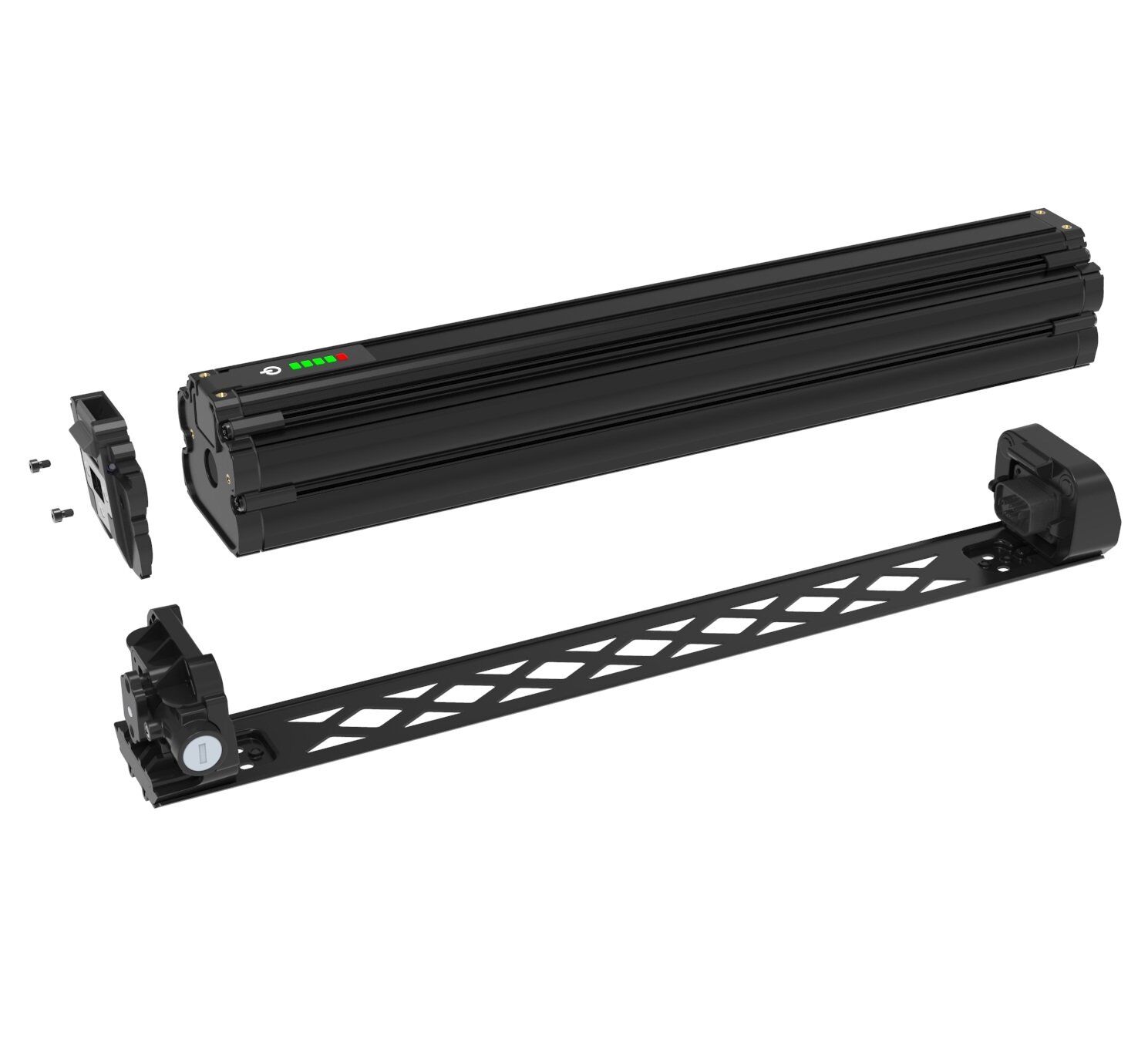

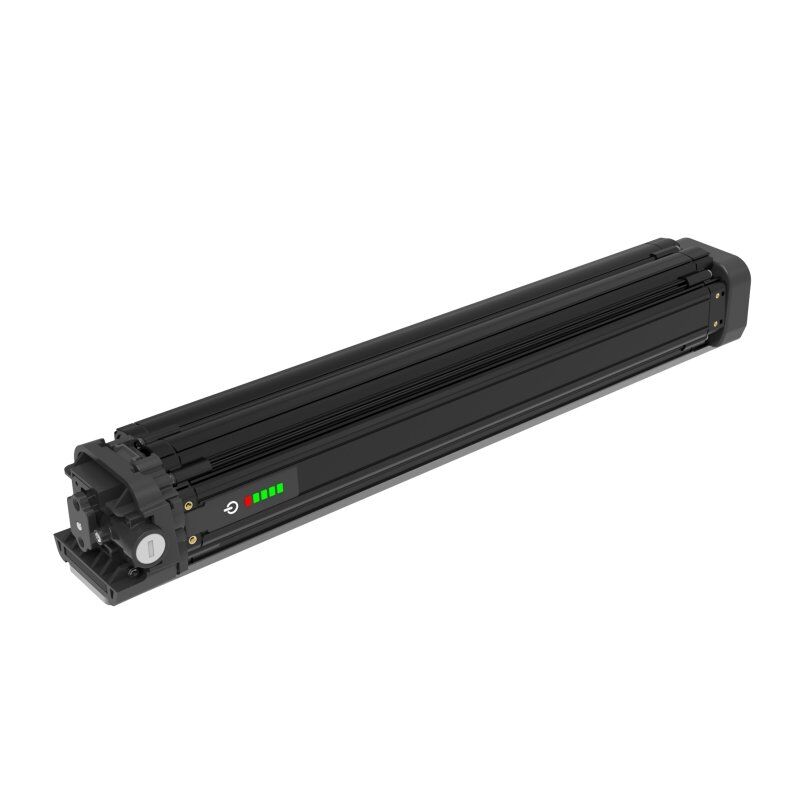

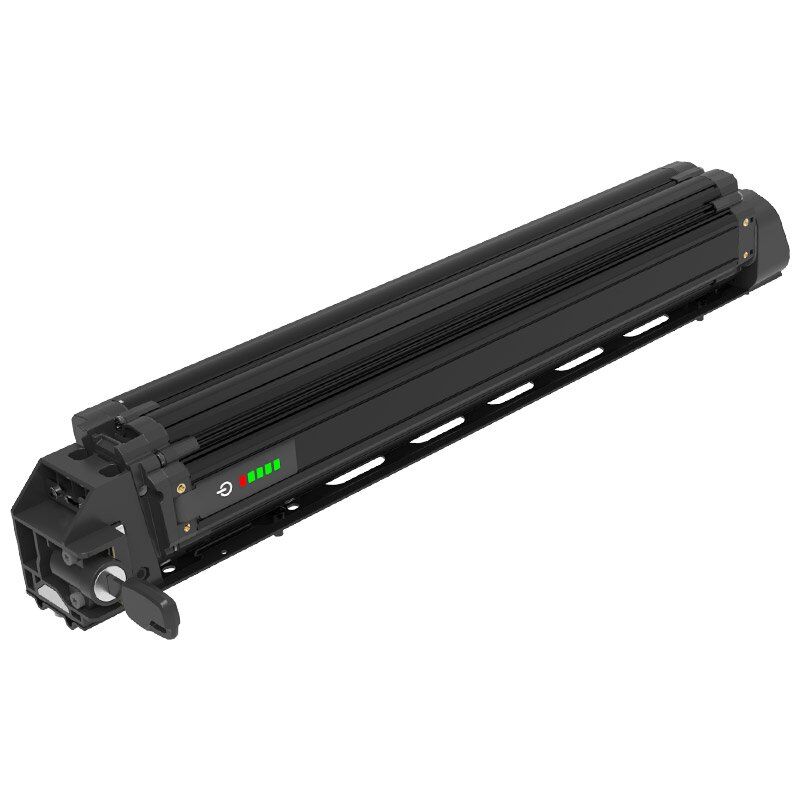

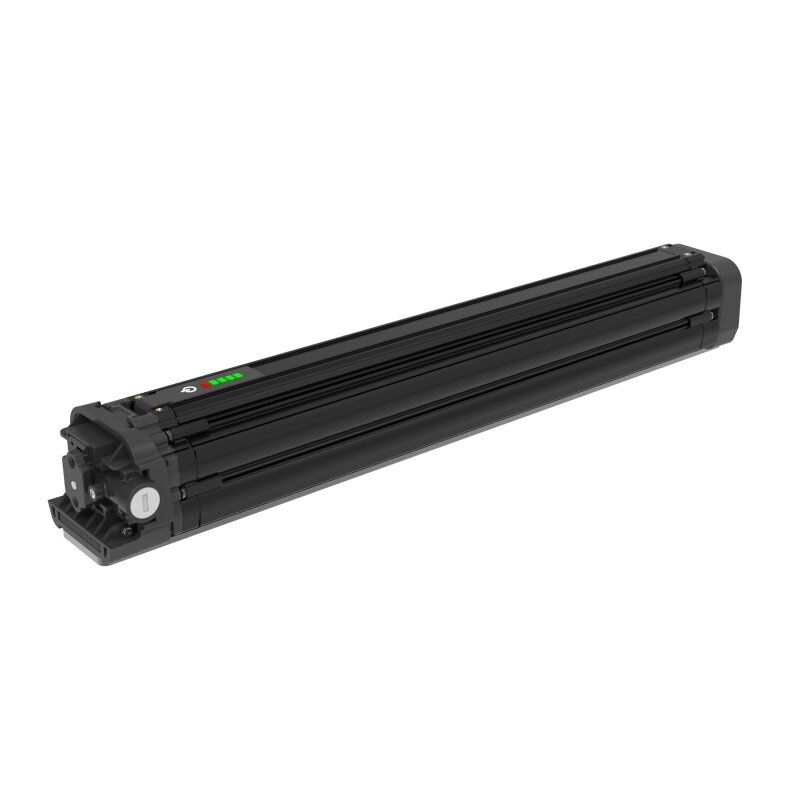

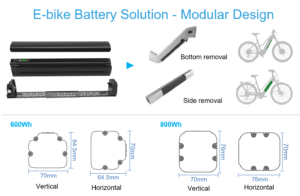

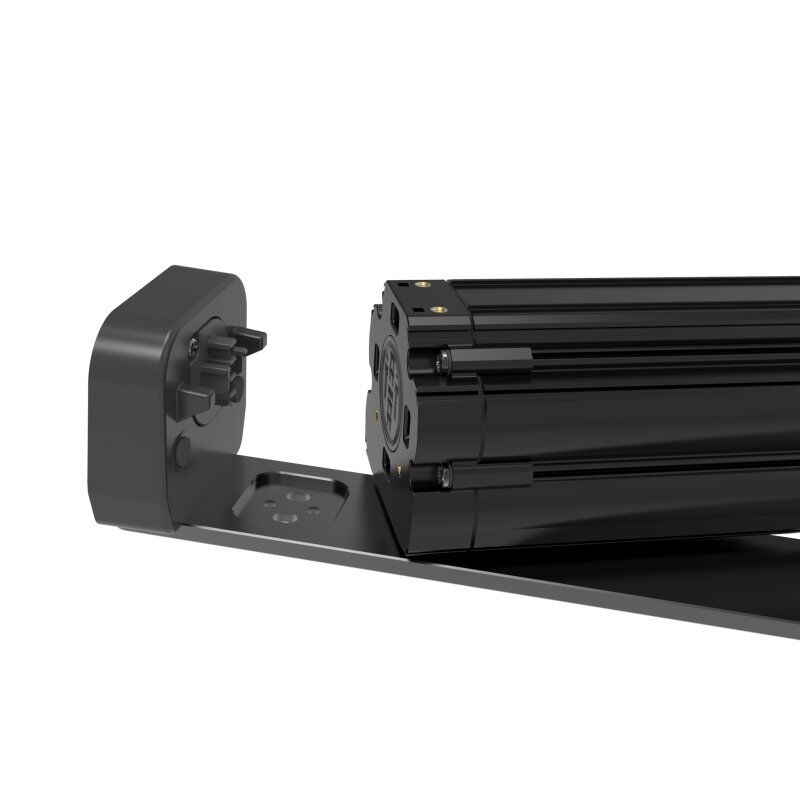

Modular design: Horizontal and vertical installation available!

36v/48v ebike inner/down tube battery tp6138/tp6139

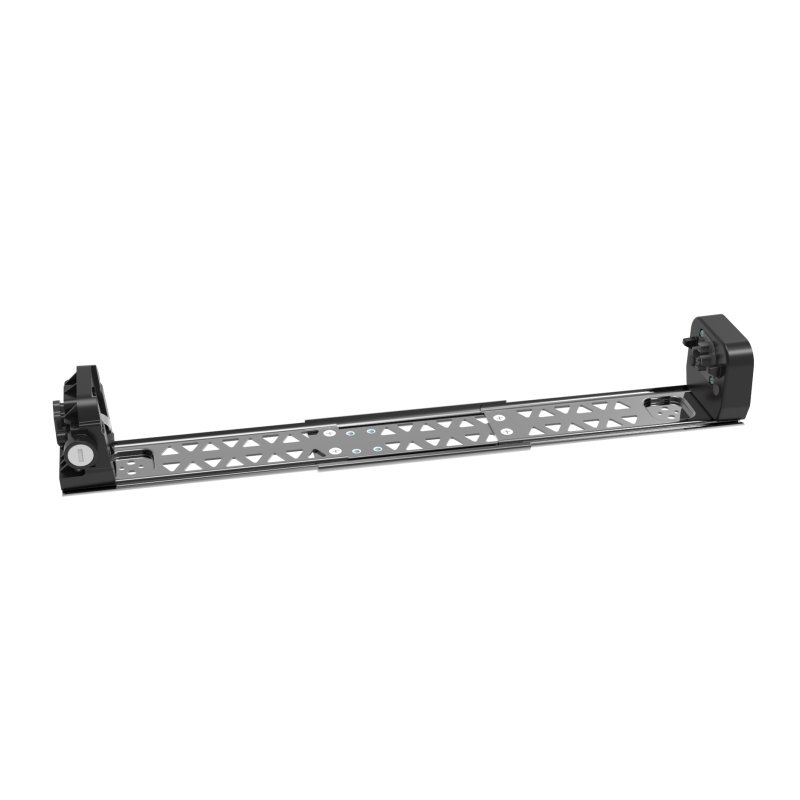

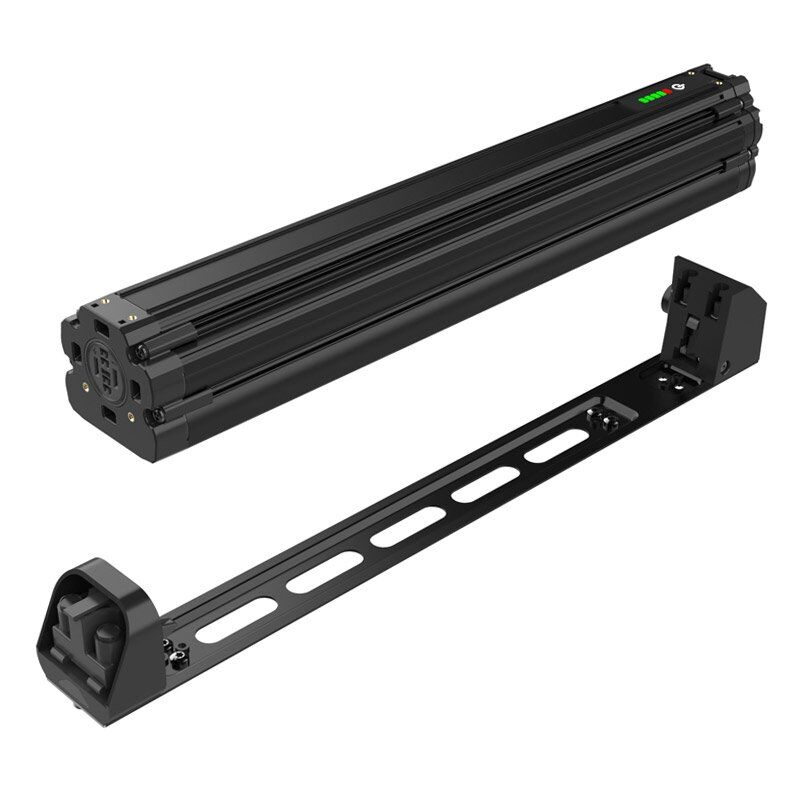

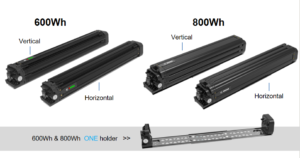

✅Modular design: One holder compatible for 600Wh & 800Wh!



Modular design

✅Low power consumption: Leads to long shelf life!

  • 6 months of charge-free storage at 5% SOC
  • 2.5 years of charge-free storage at 20% SOC

Long shelf life

🌡️Performance

  • Charge temperature: 1-45℃
  • Discharge temperature: -20-60℃

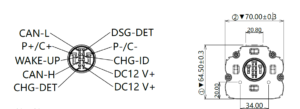

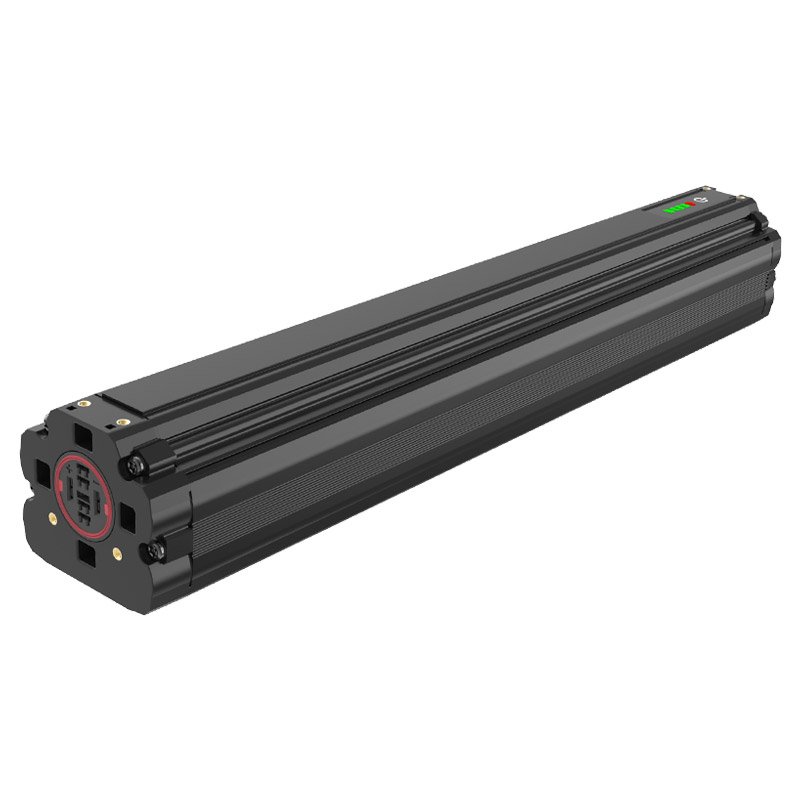

🔌Connector Type of 48V eBike Inner-tube Battery TP6136

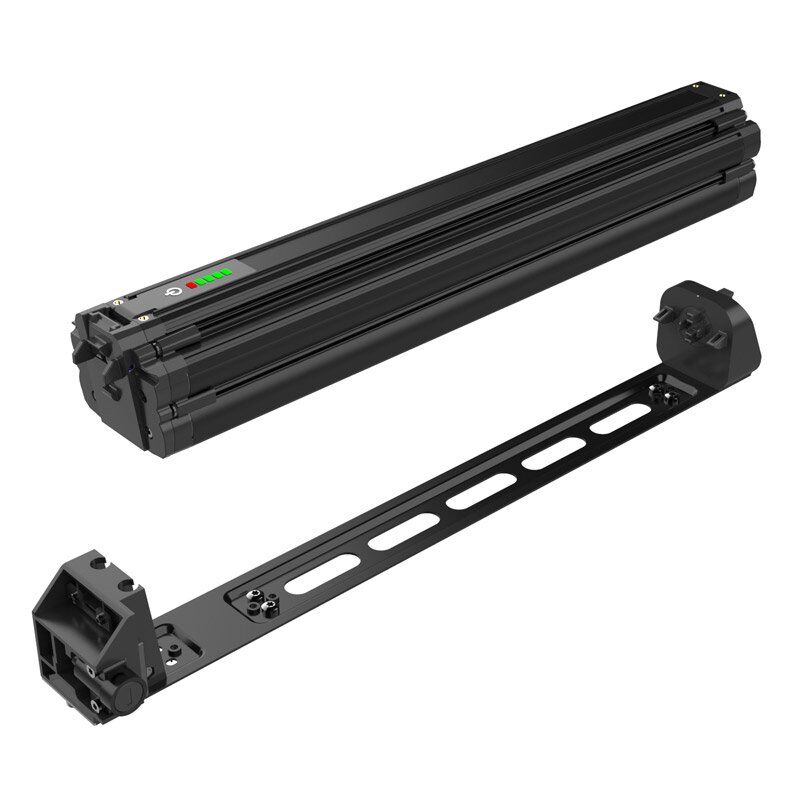

36v/48v ebike inner/down tube battery tp6136/tp6137

Aside from this product, we can provide customized battery packs according to the customer’s needs and specifications.

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>Customized Battery Pack<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<



4 good reasons

for choosing Tritek Battery for your electric mobility

选择我们的4大理由 定稿 06

An Intelligent battery with smart BMS, integrate with protocol applicable to the onboard applications, allowing you to communicate with the battery during riding.

选择我们的4大理由 定稿 03

A safe battery and full compliance with certificates in the lev industry, enabling you to use electric mobility worldwide with no restrictions.

选择我们的4大理由 定稿 18

We make every effort to supply sustainable power solutions. You can expect more than 500 cycles or 2.5 years shelf life.

选择我们的4大理由 定稿 21

We are your true battery partner because we care about efficient service. Our service center in Spain and future centers in Germany and the USA are on 24 hours standby for your convenience.
