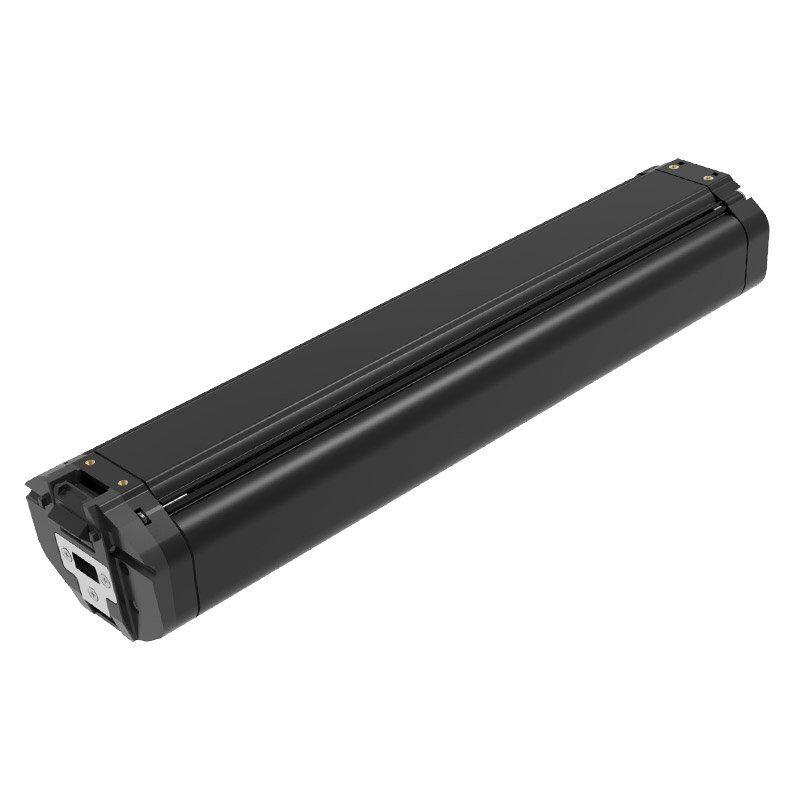

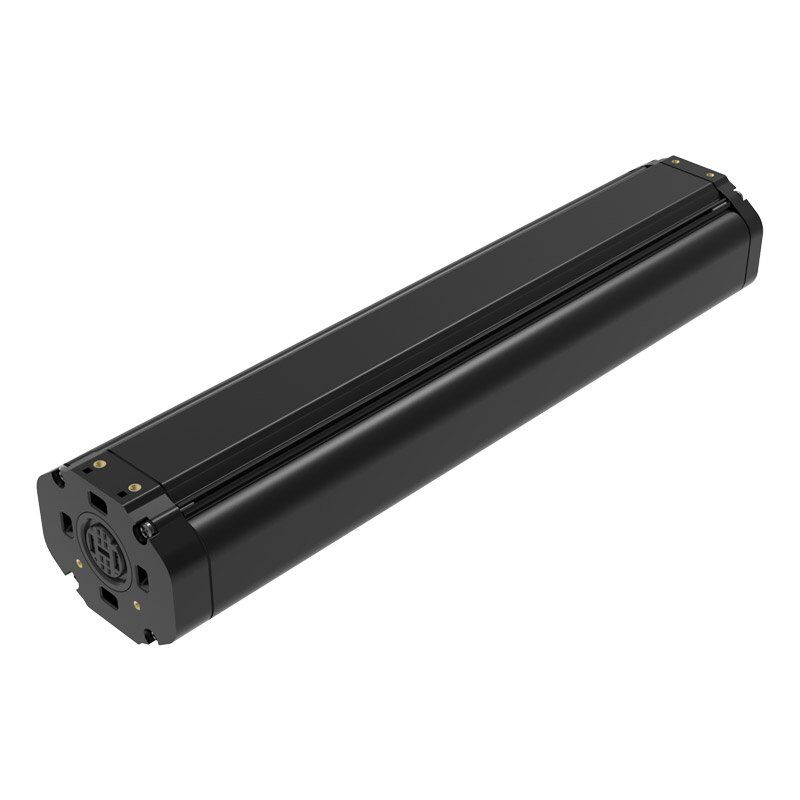

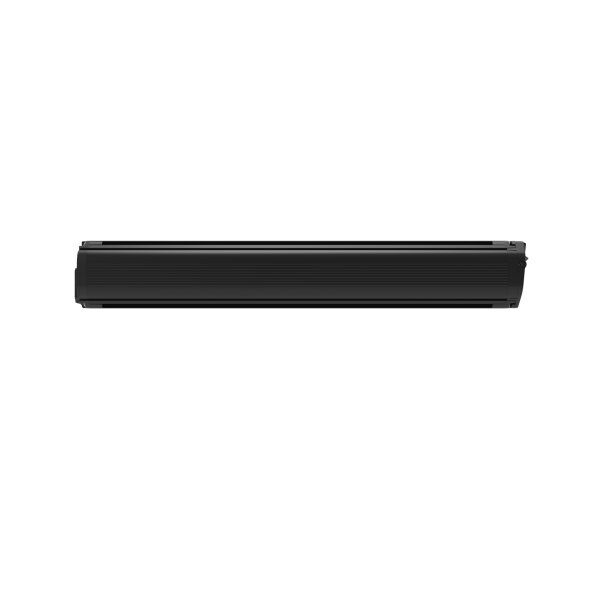

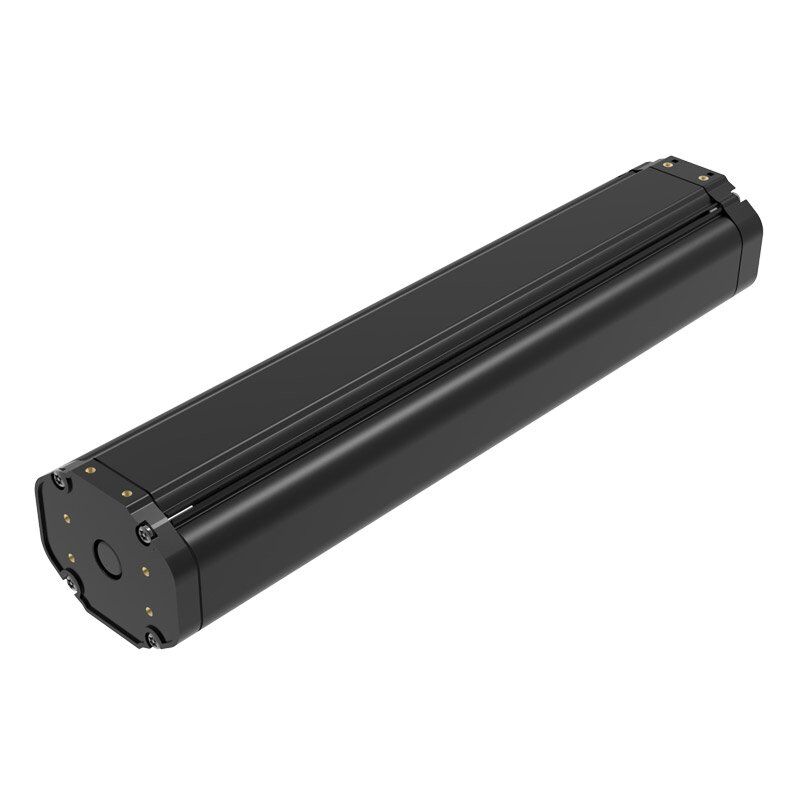

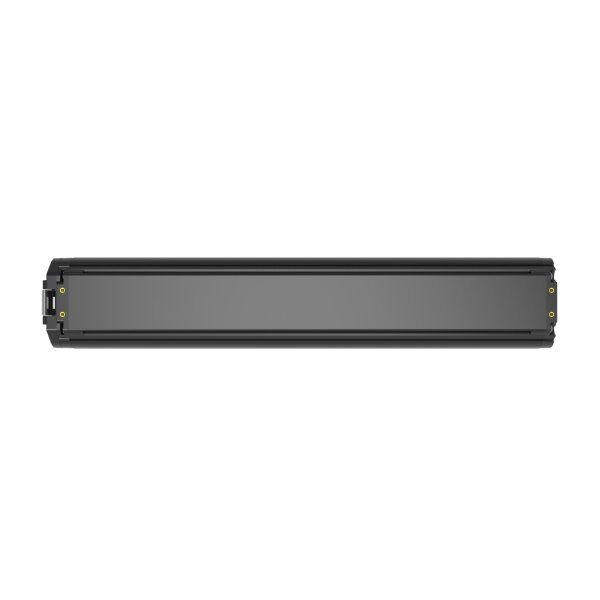

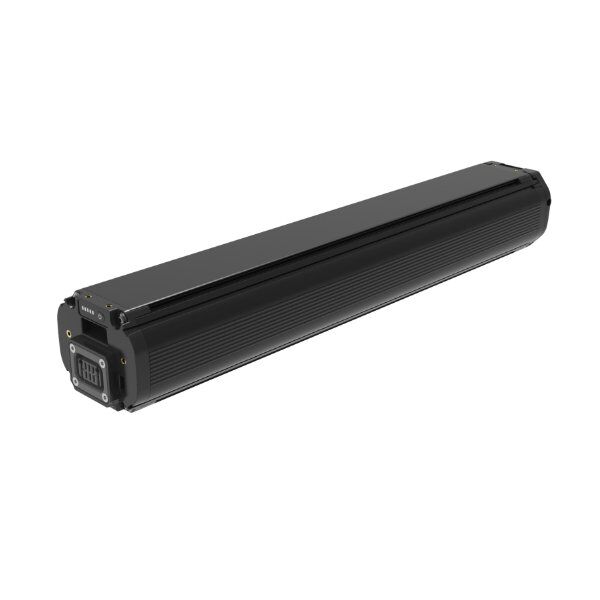

i Series 36V/48V eBike Inner/Down Tube Battery TP6159
IP67, dual battery solution, compact and high power, intelligent, safe, suitable for mountain bike, road bike, city bike…
The 36V/48V eBike Inner/Down tube Battery TP6159 delivers up to 500Wh of power, featuring Samsung 18650-35E cells in a 10S4P or 13S3P configuration. It supports a maximum continuous discharge of 25A, ensuring reliable high performance. Designed for urban commuting, off-road biking, and long-distance tours, it provides dependable power for various terrains and demanding conditions. With a robust aluminum+PC case and an IP67 rating, it offers durability and protection against harsh environments.
| Product no. | TP6159-01 | TP6159-02 |

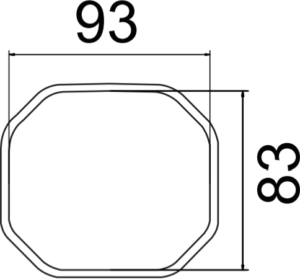

| Tube cross section |
| |

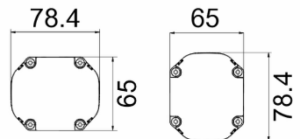

| Battery cross section |  | |
| Battery voltage | 36V | 48V |
| Battery capacity | 13.6Ah | 10.2Ah |
| Battery power | 489.6Wh | 477.4wh |
| Cell configuration | 10S4P | 13S3P |
| Cell type | SamsungINR 18650-35E | |
| Battery sizes(mm) | 352*78.4*65 | |

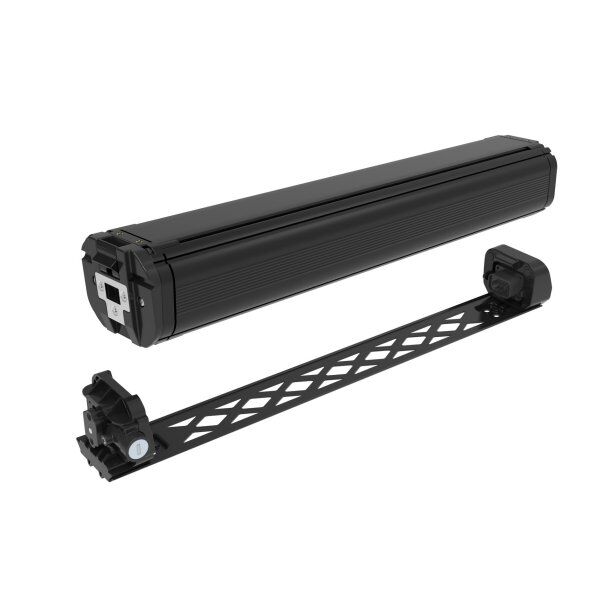

| Battery holder sizes(mm) | 79.4*70.5*415 | |
| Battery weight | 2.8kg | 2.7kg |
| Integration with Range extender | yes | yes |
| Swappable | yes | yes |
| Hot Swappable | yes | yes |
| Parallel connection | NA | NA |
| DC auxiliary output-12V2A | 12V2A,6V 2A | |
| DC auxiliary output-12V4A | NA | NA |
| Standard discharge current | 13.6A | 13.6A |
| Max continuous discharge current | 25A | 25A |
| Continuous energy recovery current | NA | 6.8A |
| Peak energy recovery current | NA | 13.6A/5S |
| Short circuit protection | yes | yes |
| Smart BMS | CAN 2.0 | |
| Baud rate | 250K/500K | |
| Cycle Life | ≥80%@500cycles | |
| IP Rating | IP67 | |
| Case material | Aluminum+PC | |
| Certification-standard | CE, UN38.3, ROHS, REACH | |
| Certification-compliant | FCC, UL2271, EN50604 | |
| Customized option 4G/Bluetooth module | NA | NA |
| Customized option Bluetooth module | NA | NA |
| Customized option USB-C (diagnose) | NA | NA |
| Customized option USB-C (software update) | NA | NA |
| Customized option USB-C (output) | NA | NA |
| Customized option USB-C (intput) | NA | NA |
| Customized protocol | yes | yes |
📋Key Features
🛡️Safety
✅Top Cell only: No fire, no explosion!
✅Pre-charge and pre-discharge protection: No spark, adjust current&voltage automatically, surge current protection!
✅Excellent thermal rise management: Longer lifespan, greater safety!
✅BMS and APP: Intelligent and safe BMS battery guard!
- Cutting-edge Innovation: Over 90% test coverage for accurate battery monitoring
- Dual Protection: Robust hardware and firmware dual safeguards
- Precise SOC Management: Accurate insights into battery capacity
- Comprehensive protection: Overcharge, over-discharge, over-temperature, short circuit, etc
- Communication Interface: CAN, CAN OPEN, UART, RS485…
- Multiple Functions: 4G, Bluetooth, E-lock, GPS, USB-C, DC Aux. modules…
✅Waterproof IP67: No concern in hasrh environments!
✅Global recognition: ISO9001, IATF16949, UL, UN, IEC/EN certified, meets market entry requirements globally
🌐Intelligence
✅Hot-swapping with automatic ID setting: No downtime, swap and go!
✅Dual battery solution: Increase power or range, whatever you want!
- Simultaneous discharge increases power
- Sequential discharge extends the range.
✅Low power consumption: Leads to long shelf life!
- 6 months of charge-free storage at 5% SOC
- 2.5 years of charge-free storage at 20% SOC
🌡️Performance
- Charge temperature: 1-45℃
- Discharge temperature: -20-60℃
Aside from this product, we can provide customized battery packs according to the customer’s needs and specifications.
