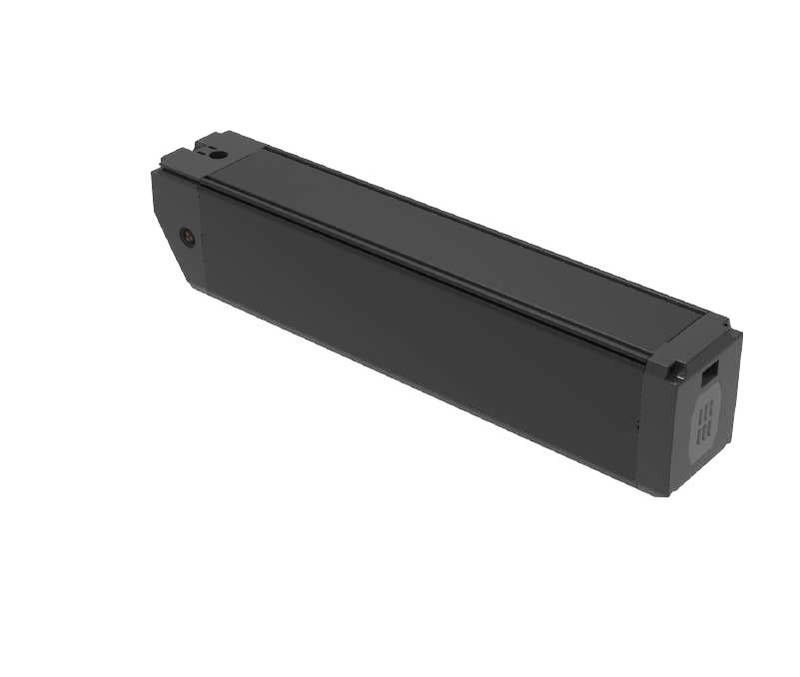

i Series 50.4V eBike Downtube Battery TP6042

IP65, high power, intelligent, safe, suitable for mountain bike, road bike, city bike…

Additional information

Power

50.4V, 14.7Ah, 740.9Wh

Cell model and configuration

Samsung INR21700-50GB -14S3P, LG INR21700-LM50LT -14S3P optional

Standard charge current

4A

Peak charge current

14.7A

Standard discharge current

14.7A

Max continuous discharge current

20A

Peak discharge current

30A 5s

Case material

Aluminum + PC

Size

424*73.67*91.54mm

Weight

4.22kg

IP rating

IP65

Cycle Life

≥80% @500cycles

Certification

CE, FCC, UN38.3, EN15194:2017, EN50604, IEC62133, ROHS, REACH, UL2271, etc.

Discover more about 50.4V eBike Downtube Battery TP6042

The i Series 50.4V eBike Downtube Battery TP6042 delivers 740.9Wh of power with Samsung or LG cells in a 14S3P configuration. It supports a max continuous discharge of 20A and 30A peak for 10 seconds, ensuring high performance. Designed for commuting, mountain biking, and long-distance touring, provides reliable power for steep climbs and rough terrain.



electric mtb battery tp6042

📋Key Features

🛡️Safety

✅Top Cell only: No fire, no explosion!

✅Pre-charge and pre-discharge protection: No spark, adjust current&voltage automatically, surge current protection!

✅Excellent thermal rise mangement: Longer lifespan, greater safety!

Thermal rise management

✅BMS and APP: Intelligent and safe BMS battery guard!

  • Cutting-edge Innovation: Over 90% test coverage for accurate battery monitoring
  • Dual Protection: Robust hardware and firmware dual safeguards
  • Precise SOC Management: Accurate insights into battery capacity
  • Comprehensive protection: Overcharge, over-discharge, over-temperature, short circuit, etc
  • Smart Monitoring and Communication Interface: Real-time battery status monitoring, calendar information, short circuit protection, CAN bus communication and HMI display

triteks smart bms monitoring and management

✅Waterproof IP67: No concern in any environments!

IP67

Global recognizition: ISO9001, IATF16949, UL, UN, IEC certified, meets market entry requirements globally

Certification

🌐Intelligence

✅Hot-swapping with automatic ID setting: No downtime, swap and go!

✅Dual battery solution: Increase power or range, whatever you want!

  • Simultaneous discharge increases power
  • Sequential discharge extends the range.

✅Low power consumption: Lead to 3 years free of charge maintenance free!

  • ≤50uA in deep sleep mode while keep battery log
  • ≤13mA in run mode

Lower power consumption

🌡️Performance

  • Charge temperature: 1-45℃
  • Discharge temperature: -20-60℃

🔌Connector Type of 50.4V eBike Downtube Battery TP6042

electric mtb battery tp6042 Charge No. Specification
PIN1 CAN L
PIN2 C+
PIN3 CAN H
PIN4 C-
electric mtb battery tp6042 Discharge No. Specification
PIN1 P+
PIN2 /
PIN3 CAN H
PIN4 P-
PIN5 KEY
PIN6 CAN L

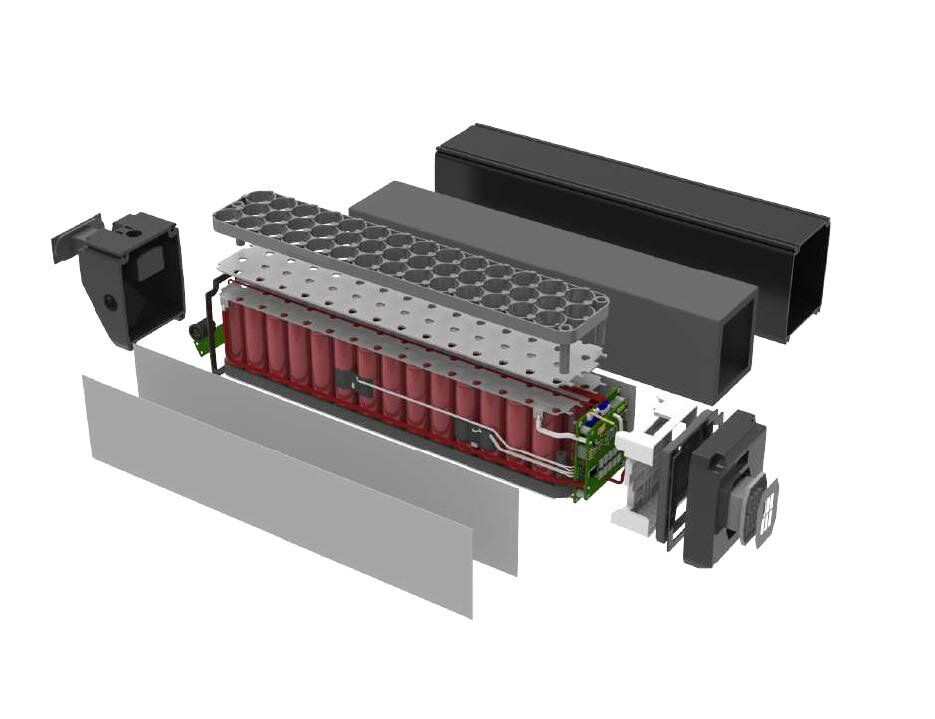

🔋Cell Arrangement of 50.4V eBike Downtube Battery TP6042

electric mtb battery tp6042



Aside from this product, we can provide customized battery packs according to the customer’s needs and specifications.

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>Customized Battery Pack<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<

4 good reasons

for choosing Tritek Battery for your electric mobility

选择我们的4大理由 定稿 06

An Intelligent battery with smart BMS, integrate with protocol applicable to the onboard applications, allowing you to communicate with the battery during riding.

选择我们的4大理由 定稿 03

A safe battery and full compliance with certificates in the lev industry, enabling you to use electric mobility worldwide with no restrictions.

选择我们的4大理由 定稿 18

We make every effort to supply sustainable power solutions. You can expect more than 500 cycles or 2.5 years shelf life.

选择我们的4大理由 定稿 21

We are your true battery partner because we care about efficient service. Our service center in Spain and future centers in Germany and the USA are on 24 hours standby for your convenience.

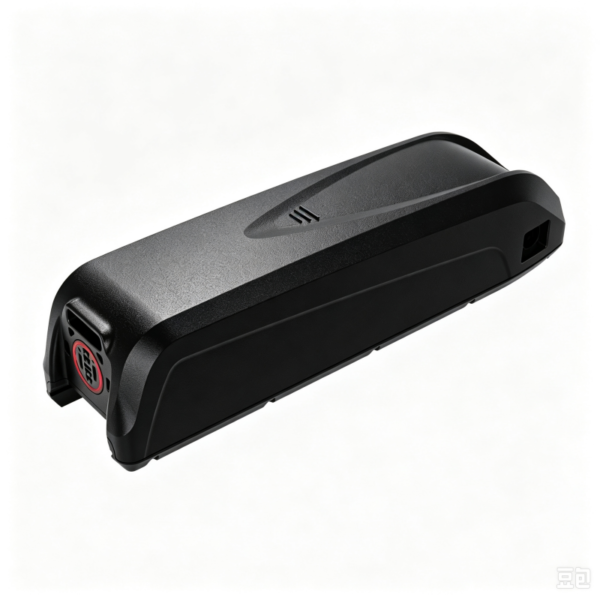

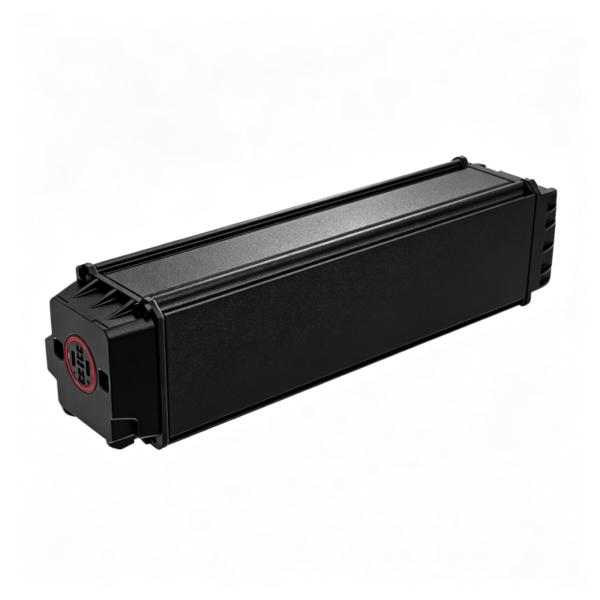

Related Products
