IP67, dual battery solution, compact and high power, intelligent, safe, suitable for mountain bike, road bike, city bike…

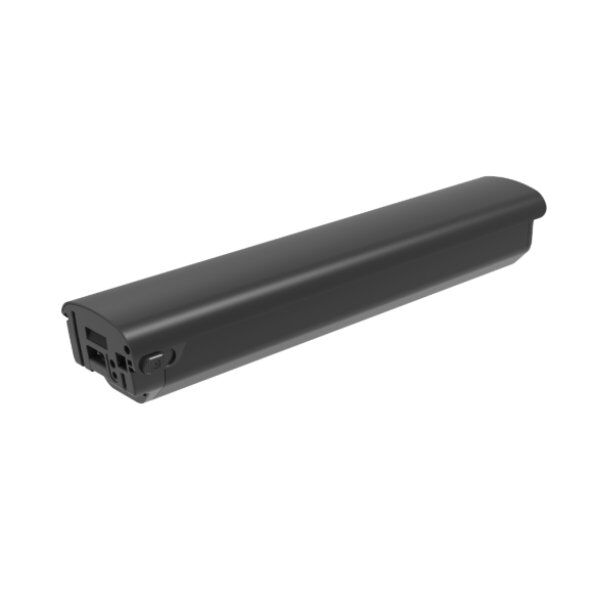

The i Series 48V eBike Intube Battery TP6126 delivers 705.6Wh of power with Samsung 21700-58E or 50GB cells in a 13S3P configuration. It supports a max continuous discharge of 15A and 20A peak for 30 seconds, ensuring high performance. Designed for urban commuting, off-road biking, and extended trips, it provides reliable power for varied terrains and challenging conditions.
| Product no. | TP6126 |
| Tube cross section |  |

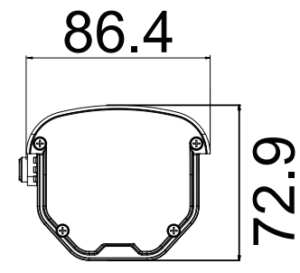

| Battery cross section |  |
| Battery voltage | 48V |
| Battery capacity | 14.7Ah |
| Battery power | 705.6Wh |
| Cell configuration | 13S3P |
| Cell type | Samsung 21700-50GB |
| Battery sizes(mm) | 440*89.8*72.9 |
| Battery holder sizes(mm) | 505*92*75 |
| Battery weight | 3.3kg |
| Integration with Range extender | yes |
| Swappable | yes |
| Hot swappable | NA |
| Parallel connection | NA |
| DC auxiliary output-12V2A | NA |
| DC auxiliary output-12V4A | NA |
| Standard discharge current | 14.7A |
| Max continuous discharge current | 20A |
| Continuous energy recovery current | 10A |
| Short circuit protection | yes |
| Smart BMS | CAN 2.0 |
| Baud rate | 250K/500K |
| Cycle life | ≥80%@500cycles |
| IP rating | IP67 |
| Case material | Aluminum+PC+ABS |
| Certification-standard | CE, IEC62133, UN38.3, ROHS, EN50604 |
| Certification-compliant | FCC, UL2271 |
| Customized protocol | yes |
📋Key Features
🛡️Safety
✅Top Cell only: No fire, no explosion!
✅Pre-charge and pre-discharge protection: No spark, adjust current&voltage automatically, surge current protection!
✅Excellent thermal rise management: Longer lifespan, greater safety!
✅BMS and APP: Intelligent and safe BMS battery guard!
- Cutting-edge Innovation: Over 90% test coverage for accurate battery monitoring
- Dual Protection: Robust hardware and firmware dual safeguards
- Precise SOC Management: Accurate insights into battery capacity
- Comprehensive protection: Overcharge, over-discharge, over-temperature, short circuit, etc
- Communication Interface: CAN, CAN OPEN, UART, RS485…
- Multiple Functions: 4G, Bluetooth, E-lock, GPS, USB-C, DC Aux. modules…
✅Waterproof IP67: No concern in any environments!
✅Global recognition: ISO9001, IATF16949, UL, UN, IEC certified, meets market entry requirements globally
✅Crush test: Withstands 1,000× its own weight, ensuring safety under extreme impact or compression!
🌐Intelligence
✅Hot-swapping with automatic ID setting: No downtime, swap and go!
✅Dual battery solution: Increase power or range, whatever you want!
- Simultaneous discharge increases power
- Sequential discharge extends the range.
✅Low power consumption: Leads to long shelf life!
- 6 months of charge-free storage at 5% SOC
- 2.5 years of charge-free storage at 20% SOC
🌡️Performance
- Charge temperature: 1-45℃
- Discharge temperature: -20-60℃
Connector Type of 48V eBike Intube Battery TP6126
 | Charge | No. | Specification | |
| PIN1 | P+ | |||
| PIN2 | CAN L | |||
| PIN3 | HMI_KEY_WAKEUP | |||
| PIN4 | CH | |||
| PIN5 | GND (P-) | |||
| PIN6 | P- (Charge wakeup) | |||
 | Discharge | No. | Specification | |
| PIN1 | P+ | |||
| PIN2 | P- | |||
| PIN3 | P- (Wakeup charger) | |||
| PIN4 | CAN H | |||
Cell Arrangement of 48V eBike Intube Battery TP6126
Aside from this product, we can provide customized battery packs according to the customer’s needs and specifications.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>Customized Battery Pack<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
4 good reasons
for choosing Tritek Battery for your electric mobility
An Intelligent battery with smart BMS, integrate with protocol applicable to the onboard applications, allowing you to communicate with the battery during riding.
A safe battery and full compliance with certificates in the lev industry, enabling you to use electric mobility worldwide with no restrictions.
We make every effort to supply sustainable power solutions. You can expect more than 500 cycles or 2.5 years shelf life.
We are your true battery partner because we care about efficient service. Our service center in Spain and future centers in Germany and the USA are on 24 hours standby for your convenience.
