Smart, E-bike Battery, High capacity
Fit the most popular e-bike

Additional information


36V, 48V


12Ah, 16Ah, 20Ah

Discharge rate

1C continuous, 2C max

Smart BMS


Cycle Life

500 cycles

Case material

Aluminum + PC

Case Type

In Tube


electric city bike, electric mountain bike

Cell Structure

10S4P, 10S5P, 13S3P

Cell Type

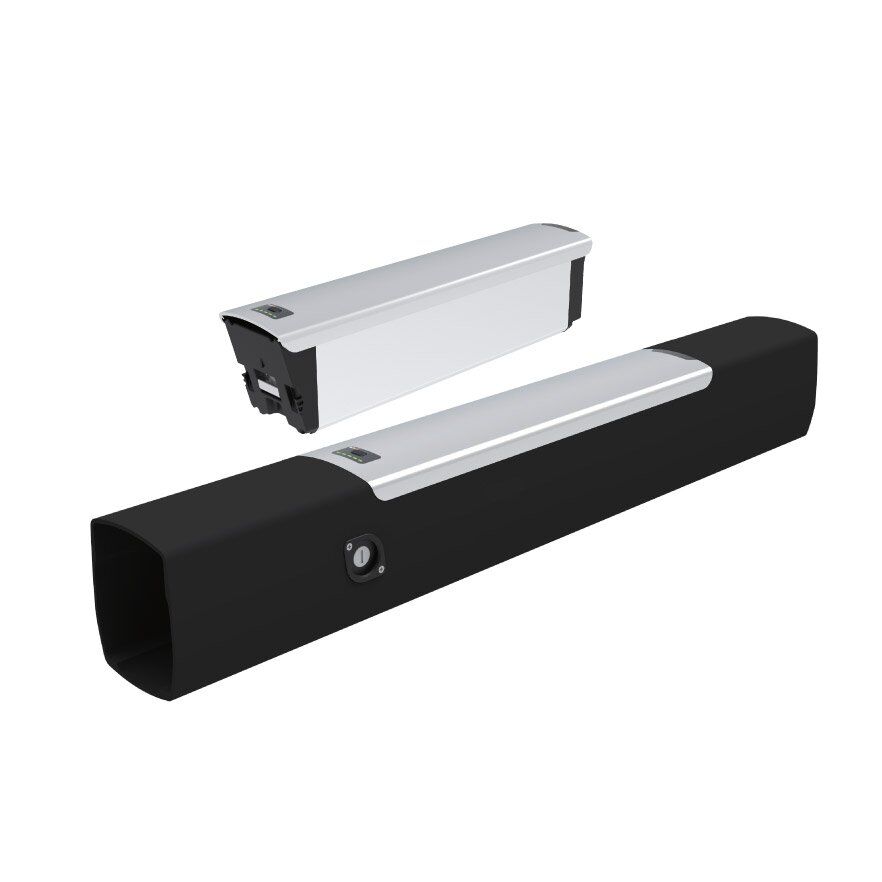

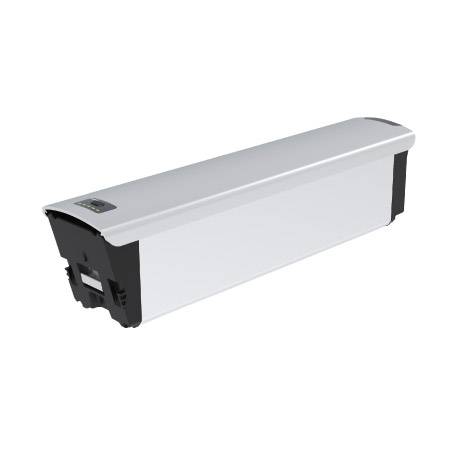

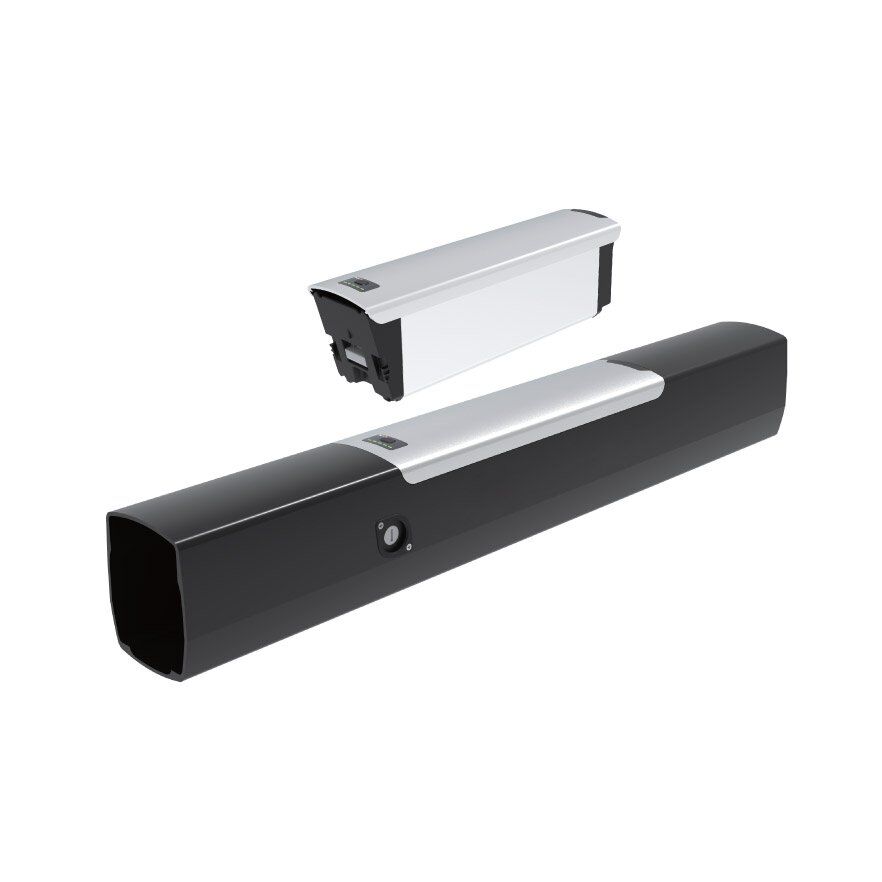

Discover more about 36V/48V eBike Intube Battery TK0173-174

ebike batteryintube battery

Model Picture Voltage Capacity Dimensions Cell Structure Cell Type
TK0173-3620 173++ 36V 20Ah 410.2X79X98.5mm 10S5P 21700
TK0173-4816 173++ 48V 16Ah 410.2X79X98.5mm 13S4P 21700
TK0174-3616 174 36V 16Ah 340.2X79X98.5mm 10S4P 21700
TK0174-4812 174 48V 12Ah 340.2X79X98.5mm 13S3P 21700

down tube battery

📋Key Features

  • Dual battery solution
  • Low standby power consumption of BMS: ≤50uA in deep sleep mode, ≤10mA in run mode
  • Maintenance free: 3 years free of charge
  • Stable and extremely robust housing
  • Smart BMS and smart App
  • LED display
  • Easy handling


  • Charge temperature: 1-45℃
  • Discharge temperature: -20-60℃


  • Overcharge voltage
  • Over discharge voltage
  • Over temperature protection
  • Short Circuit Protection
  • Cell balance
  • Provides the current status of the battery
  • Provides calendar information
  • CAN bus communication interface
  • HMI display
  • The secondary protection

Aside from this product, we can provide customized battery packs according to the customer’s needs and specifications.

>>>>>>Customized Battery Pack<<<<<<

4 good reasons

for choosing Tritek Battery for your electric mobility

选择我们的4大理由 定稿 06

An Intelligent battery with smart BMS, integrate with protocol applicable to the onboard applications, allowing you to communicate with the battery during riding.

选择我们的4大理由 定稿 03

A safe battery and full compliance with certificates in the lev industry, enabling you to use electric mobility worldwide with no restrictions.

选择我们的4大理由 定稿 18

We make every effort to supply sustainable power solutions. You can expect more than 500 cycles or 2.5 years shelf life.

选择我们的4大理由 定稿 21

We are your true battery partner because we care about efficient service. Our service center in Spain and future centers in Germany and the USA are on 24 hours standby for your convenience.
