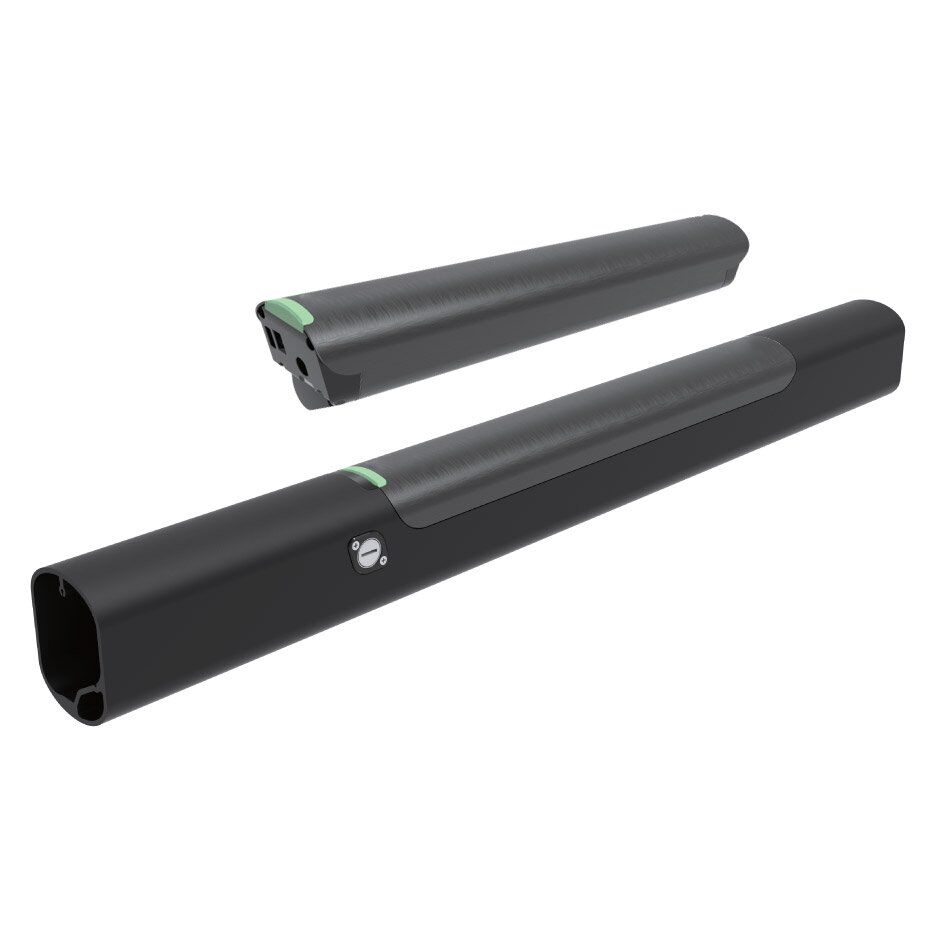

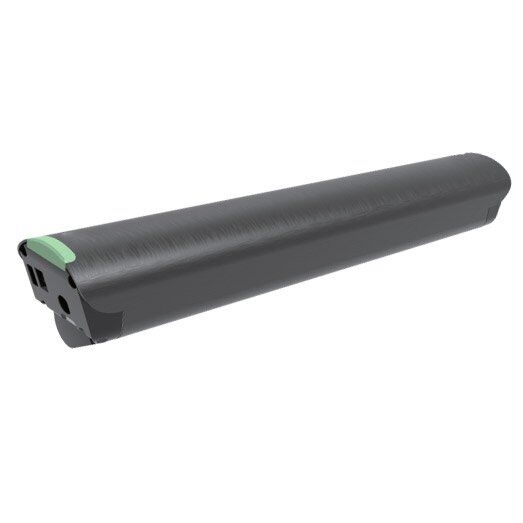

36V/48V eBike Intube Battery TP6055

Universal, E-bike Battery, High capacity

Fit the most popular e-bike in the USA and North America

Additional information

Voltage

36V, 48V

Capacity

10.5Ah, 14Ah

Discharge current

14A standard, 42A max; 10.5A standard, 30A max

Smart BMS

CAN

Cycle Life

≥70%@500 cycles

Case material

Aluminum + PC

Case Type

In Tube

Application

electric city bike

Cell Structure

10S4P, 13S3P

Cell Type

LG INR18650-MJ1, SAMSUNG INR18650-35E

Discover more about 36V/48V eBike Intube Battery TP6055

The 36V/48V eBike Intube Battery TP6055 is a universal e-bike battery designed to fit the most popular electric bikes in the USA and North America, offering high capacity with 10.5Ah or 14Ah options, a robust discharge current of up to 42A, and a smart BMS with CAN connectivity, all enclosed in a durable aluminum and PC case that integrates into the bike frame for a sleek and efficient design.

🔋Two Options: 36V / 48V

Item 36V (TP6055) 48V
Power 36V, 14Ah, 504Wh 46.8V, 10.5Ah, 491.4Wh
Cell model Samsung INR18650-35E-10S4P
/LG INR18650-MJ1-10S4P
Samsung INR18650-35E-13S3P
/LG INR18650-MJ1-13S3P
Standard charge current 4A 3A
Max continuous discharge rate 28A 15A
Peak discharge rate 42A 30A
Pre-charge Applicable with Tritek charger (anti-spark while connected with charger)
Pre-discharge Yes (anti-spark while connected with controller)
Communication Tritek CAN protocol Tritek CAN protocol
Size 76.39*68*420mm 76.39*68*420mm
Weight 2.825kg 2.825kg
IP rating IPX5 IPX5
BMS model TP6055 TP6055
2nd protection – UL2271 Yes Yes
Power consumption – deep sleep mode ≤50uA ≤50uA
Power consumption – run mode ≤10mA ≤10mA
Cycle life ≥70% @ 500cycles ≥70% @ 500cycles
Certification UN38.3, EN15194, CE, FCC, UL2271, ROHS, REACH…etc

intube battery tk0016

🔌Connector Type of 36V/48V eBike Intube Battery TP6055

intube battery tp6055 Charge No. Specification
PIN1 C+
PIN2 C-
intube battery tp6055 Discharge No. Specification
PIN1 P-
PIN2 CAN L
PIN3 CAN H
PIN4 P+

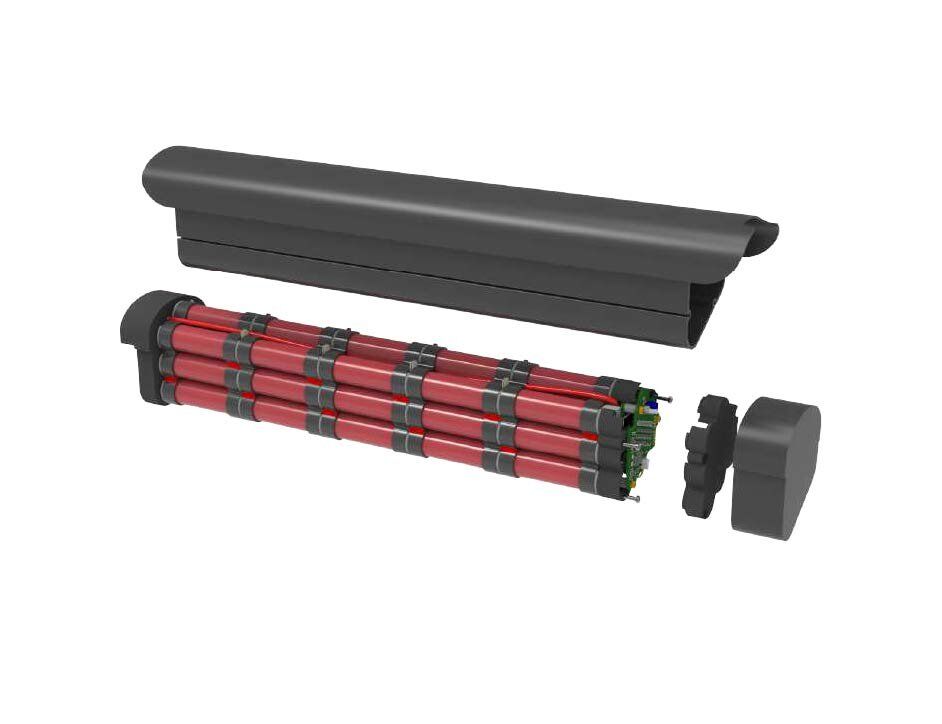

🔋Cell Arrangement of 36V/48V eBike Intube Battery TP6055

intube battery tk0016

📋Key Features

  • Dual battery solution
  • Low standby power consumption of BMS: ≤50uA in deep sleep mode, ≤10mA in run mode
  • Maintenance free: 3 years free of charge
  • Low self-discharge: deep sleep mode for storage
  • Stable and extremely robust housing
  • Smart BMS and smart App
  • Easy handling

🌡️Performance

  • Charge temperature: 1-45℃
  • Discharge temperature: -20-60℃

🛠️Functions

  • Overcharge voltage
  • Over discharge voltage
  • Over temperature protection
  • Short Circuit Protection
  • Cell balance
  • Provides the current status of the battery
  • Provides calendar information
  • CAN bus communication interface
  • HMI display
  • The secondary protection



ebike battery

intube battery



Global Certification

global certification

e bike

Aside from this product, we can provide customized battery packs according to the customer’s needs and specifications.
