Description

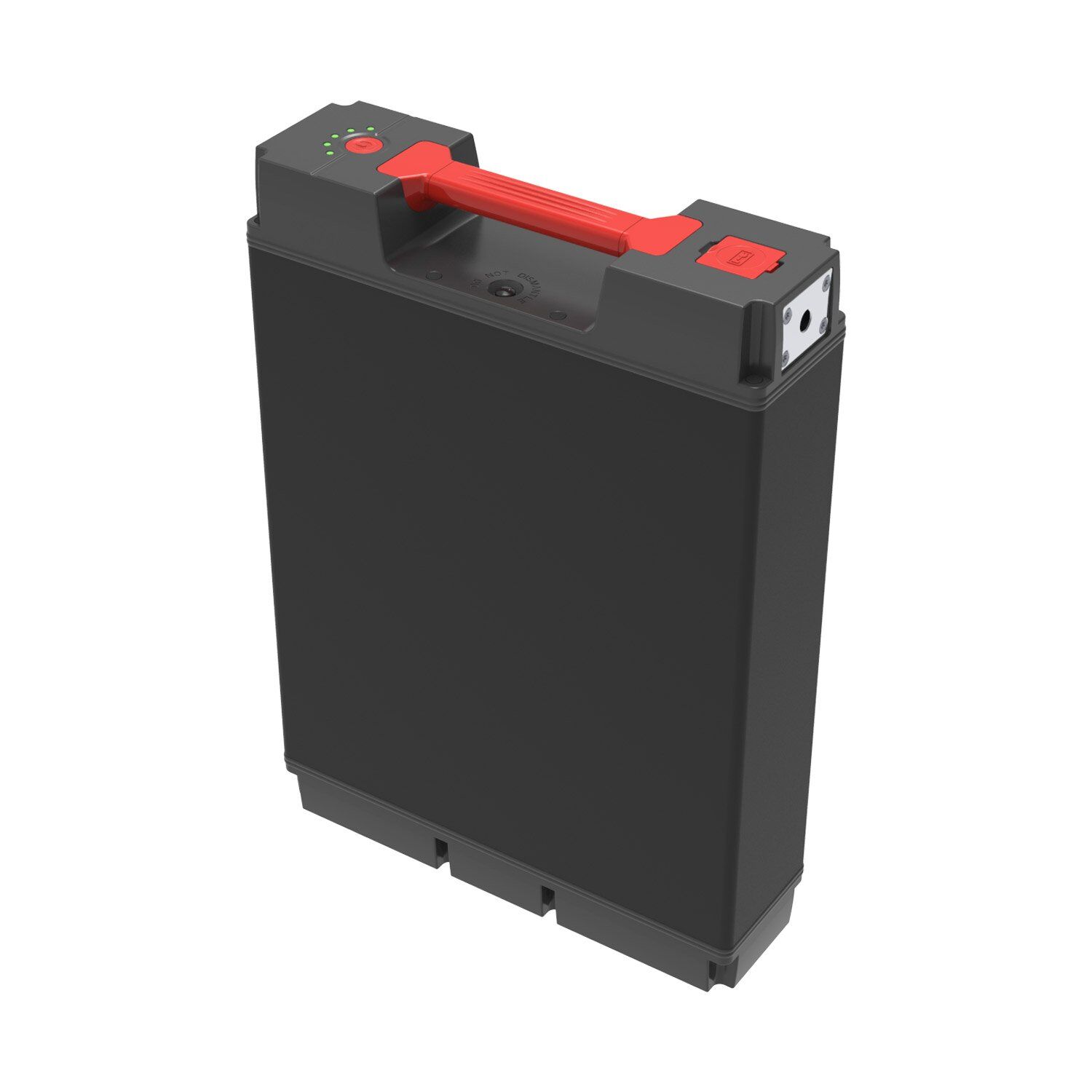

The i Series 48V LFP eCargo Bike Battery TP6068 delivers 1440Wh with a 15S2P configuration, ideal for motors ranging from 1000-2000W and speeds of 45-65km/h. Featuring IP67 protection, longer cycle life with LFP chemistry, and hot-swap capability, it is perfect for eCargo applications. The battery supports parallel connection (2-11 batteries) and regenerative braking added versatility.
📋Key Features
🛡️Safety
✅Top Cell only: No fire, no explosion!
✅Pre-charge and pre-discharge protection: No spark, adjust current&voltage automatically, surge current protection!
✅Excellent thermal rise mangement: Longer lifespan, greater safety!

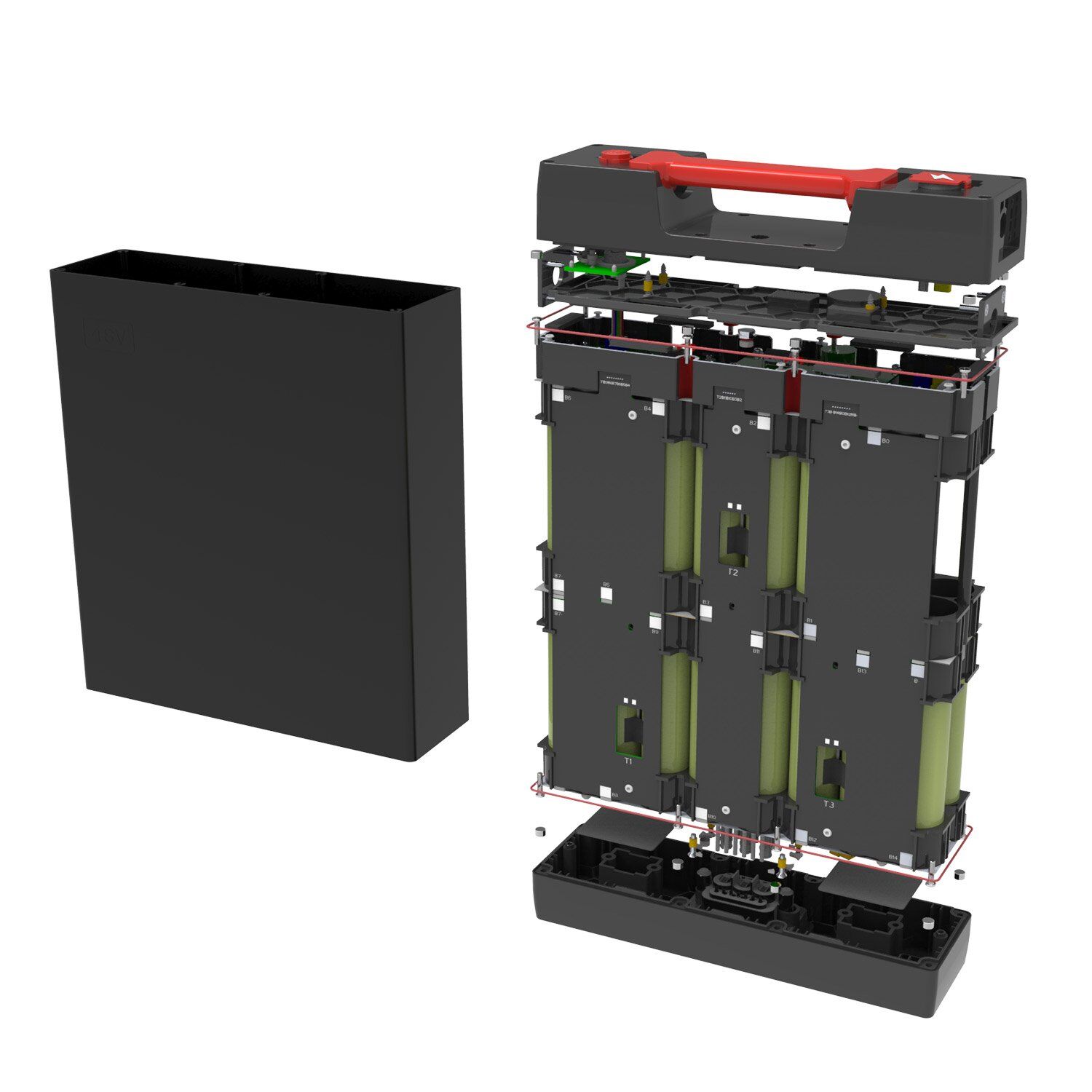

- We optimize the busbar, nickel pins, and cell layout to manage the thermal rise of cell, critical components, and pack.
- 5 integrated NTC to monitor cell and MOSFET temperature
✅BMS and APP: Intelligent and safe
✅BMS and APP: Intelligent and safe BMS battery guard!
- Cutting-edge Innovation: Over 90% test coverage for accurate battery monitoring
- Dual Protection: Robust hardware and firmware dual safeguards
- Precise SOC Management: Accurate insights into battery capacity
- Comprehensive protection: Overcharge, over-discharge, over-temperature, short circuit, etc
- Communication Interface: CAN, CAN OPEN, UART, RS485…
- Multiple Functions: 4G, Bluetooth, E-lock, GPS, USB-C, DC Aux. modules…
✅Waterproof IP67: No concern in any environments!
✅Global recognizition: ISO9001, IATF16949, UL, UN, IEC certified, meets market entry requirements globally
🌐Intelligence
✅Hot-swapping with automatic ID setting: No downtime, swap and Go!
✅Modular design: No wire soldering, compliant to new regulation EN 50604!

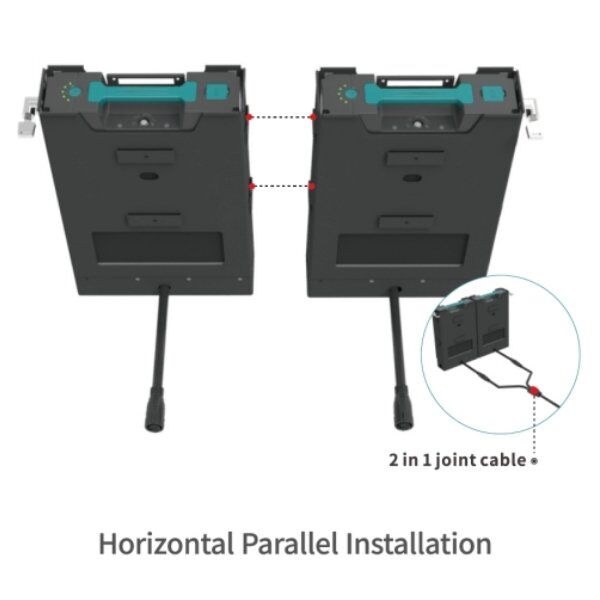

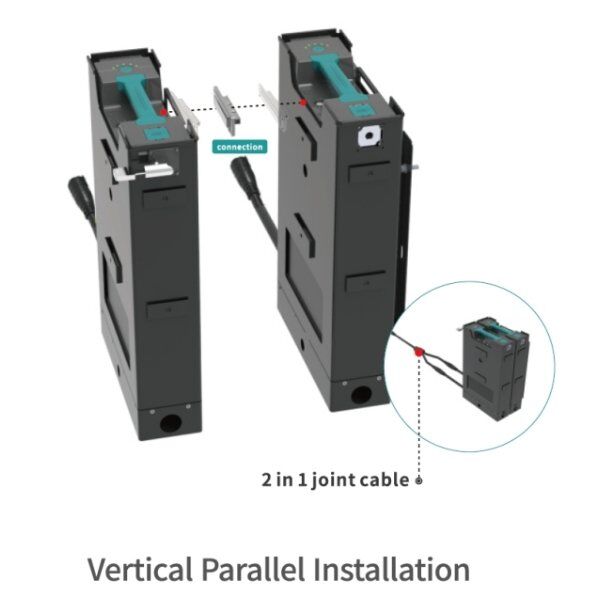

✅Multi battery solution: Up to 11 batteries in parallel, no range anxiety!
✅Flexible slip-in cage: Flexibility to mix and match without additional drilling, etc.
✅Two option cable: 2A affordable, 10A supply multi equip light, HMI, windscreen wiper, etc
✅Low power consumption: Leads to long shelf life!
- 6 months of charge-free storage at 5% SOC
- 2.5 years of charge-free storage at 20% SOC
🌡️Performance
- Charge temperature: 1-45℃
- Discharge temperature: -20-60℃
Connector Type of 48V LFP eCargo Bike Battery TP6068
- Anti-spark during vibration and while charger plug-in
- Supports reverse insertion
- Switch-on or wake-up function before power output
- Durable, capable of withstanding over 10,000 connection cycles.
 | Charge | No. | Specification | |||||||
| PIN1 | / | |||||||||
| PIN2 | C- | |||||||||
| PIN3 | CAN H | |||||||||
| PIN4 | CAN L | |||||||||
| PIN5 | ID | |||||||||
| PIN6 | / | |||||||||
| PIN7 | C+ | |||||||||
| PIN8 | / | |||||||||

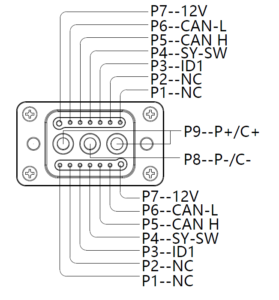

 | Discharge | No. | Specification | |||||||
| PIN1 | ID3 | |||||||||
| PIN2 | ID2 | |||||||||
| PIN3 | ID1 | |||||||||
| PIN4 | Switch | |||||||||
| PIN5 | CAN H | |||||||||
| PIN6 | CAN L | |||||||||
| PIN7 | 12V | |||||||||
| PIN8 | P-/C- | |||||||||
| PIN9 | P+/C+ | |||||||||
| PIN10 | P+/C+ | |||||||||
Cell Arrangement of 48V LFP eCargo Bike Battery TP6068
🏢Application:
For high-power applications: cargo bikes, motorcycles, energy storage systems, industrial, AGV, marine, agricultural, etc.
Aside from this product, we can provide customized battery packs according to the customer’s needs and specifications.
