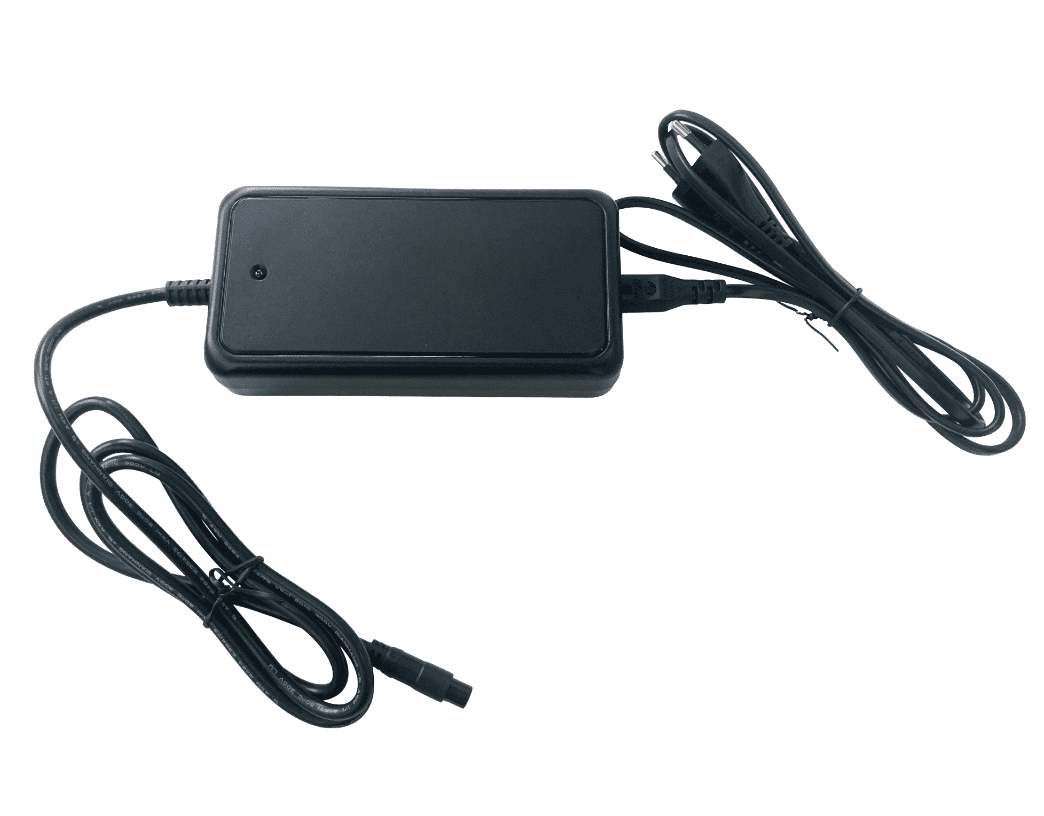

Li-ion battery charger TC1012

Fit for battery of 13S Li-ion battery

Additional information

Input voltage

100-240Vac

Output voltage

54.6±0.2V

Charge current

3.0±0.3A

Rated output power

163.8W

Fit for battery of

13S li-ion battery

Inlet socket

AC 2Pin

AC power cord

EU regulations insert two character tail power line L:1.5M

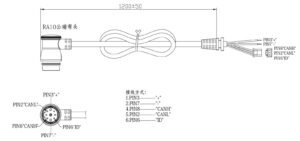

Output DC line and polarity

4 PIN (1104C) line L:1.2M PIN2"+", PIN4"-", PIN3"CANH", PIN1"CANL"

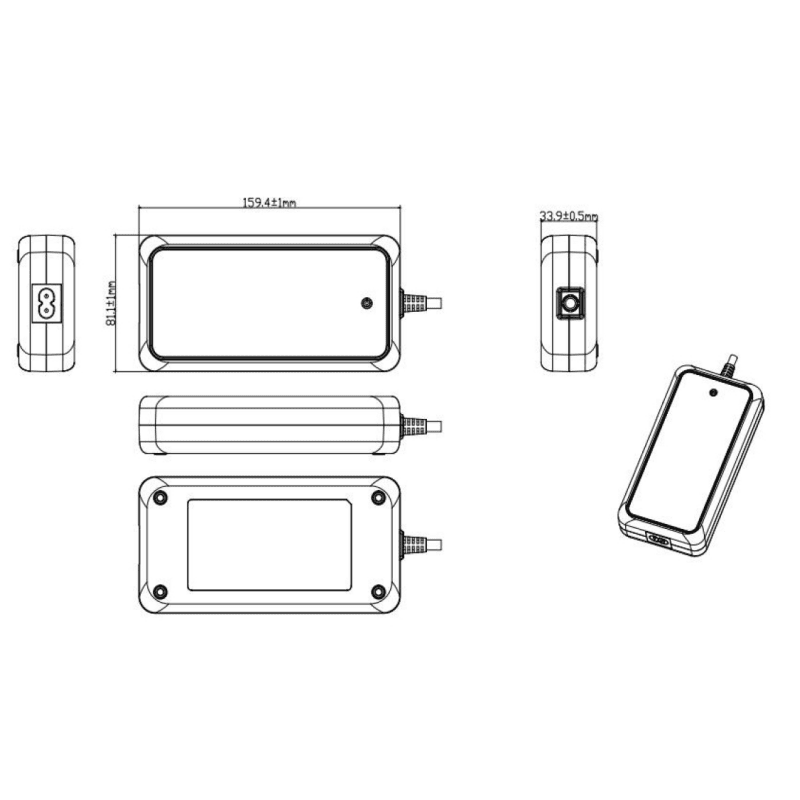

Dimension

159.4×81.1×33.9mm

IP grade

IP20

Certification

CE, FCC

Discover more about Li-ion battery charger TC1012

🛡️Protection Characteristics

  • Over-voltage turn-off protection
  • Over-current turn-off protection
  • Short-circuit turn-off protection
  • Timing turn-off protection
  • Turn off protection when inside over temperature
  • Battery reverse current
  • CAN communication function

🌡️Performance

  • Operating ambient temperature: -10℃ ~ 40℃
  • Storage ambient temperature: -20℃ ~ 65℃
  • Operating/storage ambient humidity: 5% ~ 90%
