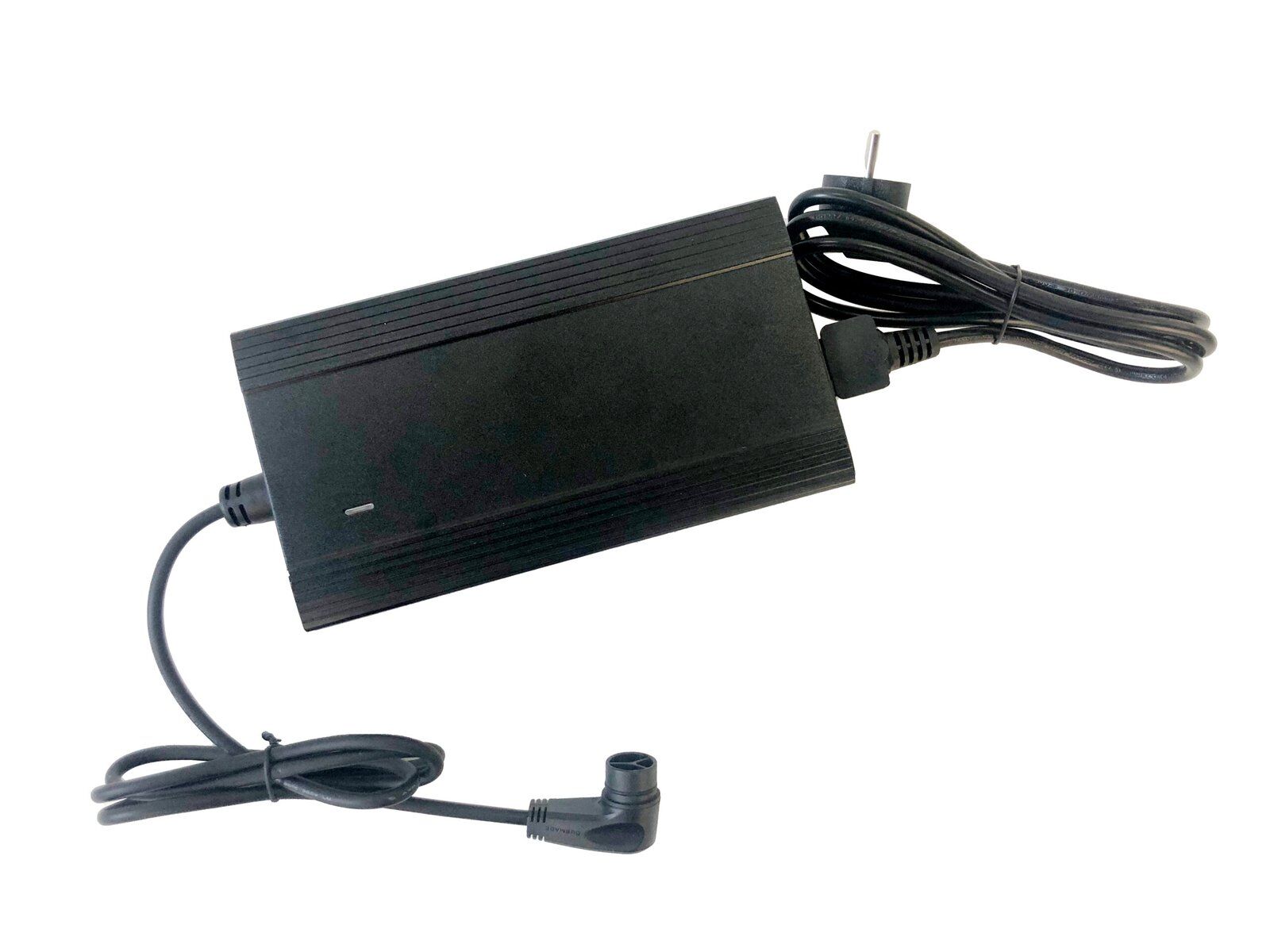

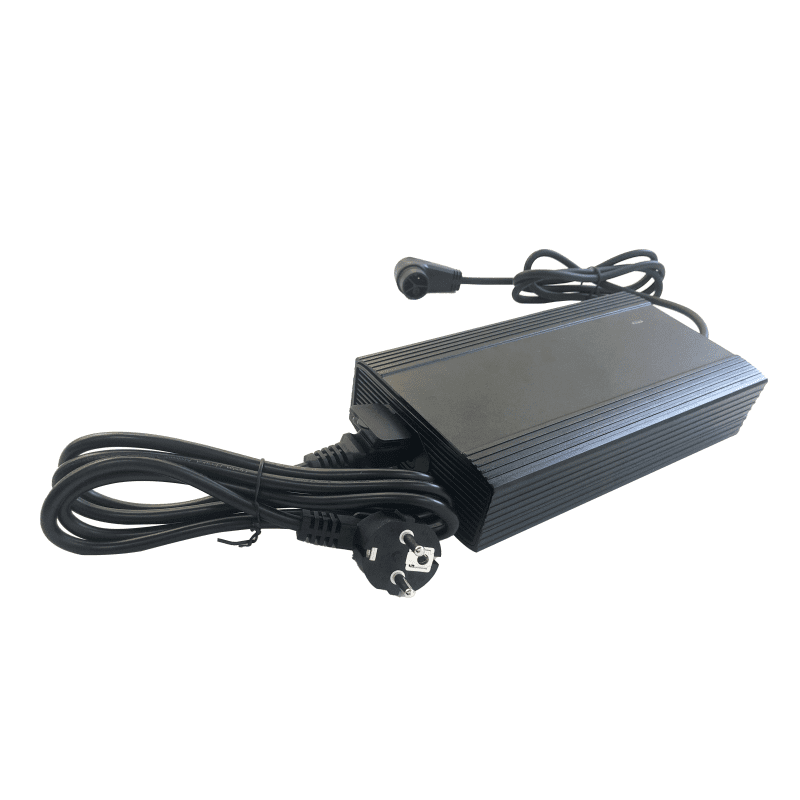

Li-ion battery charger TC1018

Fit for LFP / NMC battery

Additional information

Input voltage

100-240Vac

Output voltage

54.75±0.3V

Charge current

10.0±1A

Rated output power

547.5W

Fit for battery of

LFP battery, NMC battery

Inlet socket

AC 3Pin

AC power cord

EU regulations insert three character tail power line L:1.5M

Output DC line and polarity

ZR2-4(Curved head) PIN7"+", PIN2"-", PIN3"ID ", PIN4"CANL", PIN5"CAN H", L:1.2M

Dimension

220x120x49mm

IP grade

IP54

Certification

CB, CE, FCC

Discover more about Li-ion battery charger TC1018

🛡️Protection Characteristics

  • Over-voltage turn-off protection
  • Over-current turn-off protection
  • Short-circuit turn-off protection
  • Timing turn-off protection
  • Charger over-temperature turn-off protection
  • Battery reverse current
  • Inrush current of output
  • CAN communication function
  • DET signal detection

🌡️Performance

  • Operating ambient temperature: 0℃ ~ 40℃
  • Storage ambient temperature: -20℃ ~ 60℃
  • Operating/storage ambient humidity: 5% ~ 90%
