Have you ever wondered how batteries work so tirelessly to power your gadgets, e-bikes, or robots? It’s all about the ‘battery discharge curves and temperature rise curves’—the hidden heartbeat of every battery. These curves reveal the story of a battery’s performance, safety, and adaptability in different scenarios, from the freezing cold to high-power demands.
In this article, we’ll dive into the fascinating world of battery discharge curves and temperature rise curves to uncover what they mean and why they matter. Using specific graphs as examples, we’ll interpret battery behavior under varying C rates and environmental conditions. Finally, we’ll explore how these insights play a vital role in performance optimization, safety assurance, and engineering design.
Let’s decode the science behind the curves and see what makes batteries tick!
What Are Battery Discharge Curves?
Definition and Purpose
A discharge curve is like the “performance track” of a battery, showing how its voltage changes over time as it releases energy. It helps engineers, designers, and users understand how well a battery performs under different conditions.
Metaphorical Explanation
Let’s compare a battery’s behavior to a runner on a track:
- Battery voltage is like the runner’s stamina.
- Discharge rate (C rate) is the running speed.
At low C rates, the battery “jogs,” depleting its stamina gradually and providing steady energy for long durations. At high C rates, the battery “sprints,” delivering high power quickly but exhausting itself faster.
Key Parameters in Battery Discharge Curves
Battery discharge curves are characterized by several key parameters that provide valuable information about the battery’s performance:
- Voltage: This is the battery’s voltage, which decreases as the battery discharges. Think of it as the battery’s “heartbeat” that gradually slows down as energy is used up.
- Capacity: Measured in ampere-hours (Ah), capacity indicates the amount of energy stored in the battery. . It’s like the fuel tank of a car, showing how much “fuel” is left.
- Discharge Rate: Expressed as a fraction of the battery’s capacity (e.g., 0.5C, 1C, 2C), the discharge rate shows how quickly the battery is being used. A higher discharge rate means the battery is “running” faster, depleting its energy more quickly.
- State of Charge (SoC): This represents the percentage of remaining battery capacity, ranging from 0% (fully discharged) to 100% (fully charged). It’s like a progress bar that shows how much energy is left.
Factors Affecting Battery Discharge Curves
Several factors can impact battery discharge curves, influencing how a battery performs under different conditions:
- Battery Chemistry: Different battery chemistries, such as lithium-ion (Li-ion), nickel-cadmium (Ni-Cd), and lead-acid, exhibit distinct discharge characteristics. For example, lithium-ion batteries typically have a flatter discharge curve, providing more consistent voltage over time.
- Discharge Rate: Higher discharge rates can cause the voltage to drop more quickly, leading to a steeper discharge curve. It’s like running faster and getting tired more quickly.
- Temperature: Operating temperature affects the battery’s internal resistance and reaction kinetics, influencing the discharge curve. Cold temperatures can increase internal resistance, while high temperatures can accelerate aging.
- Age and Cycle Life: As batteries age and go through more charge-discharge cycles, their internal resistance increases, and capacity decreases, altering the discharge curve. It’s similar to how a car’s performance changes as it accumulates more miles.
Analysis of Discharge Curves at Stable Temperatures
The discharge curves also reveal how temperature varies under different C rates, providing insights into battery performance and thermal behavior:
0.2C (Low C Rate)
- Voltage Behavior: The voltage drops slowly, reflecting steady energy release over a longer period.
- Temperature Behavior: Minimal temperature rise due to lower current, making this suitable for applications prioritizing stability, such as energy storage systems.
0.5C (Moderate C Rate)
- Voltage Behavior: Voltage drops slightly faster, maintaining a balance between endurance and performance.
- Temperature Behavior: Moderate temperature rise, but still within safe limits. Suitable for devices with medium power demands.
1C (High C Rate)
- Voltage Behavior: Noticeable voltage drop, indicating increased energy consumption.
- Temperature Behavior: Higher temperature rise, requiring attention to thermal management. Ideal for devices like e-bikes that balance power and runtime.
2C (Very High C Rate)
- Voltage Behavior: Rapid voltage decrease, delivering high power in a short time.
- Temperature Behavior: Significant temperature rise, highlighting the need for effective cooling solutions. Perfect for high-performance tasks like acceleration or climbing.
Comparison Table: Discharge and Temperature Behavior at Different C Rates
| C Rate | Voltage Behavior | Temperature Behavior | Ideal Applications |
| 0.2C | Slow voltage drop | Minimal temperature rise | Energy storage systems |
| 0.5C | Moderate voltage drop | Moderate temperature rise | Medium-power devices |
| 1C | Noticeable voltage drop | Higher temperature rise | E-bikes and balanced power devices |
| 2C | Rapid voltage drop | Significant temperature rise | High-performance devices (e.g., e-bikes, robotics) |
Analysis of Discharge Curves in Extreme Conditions
Low Temperatures (-10°C)
At freezing temperatures, the battery faces increased internal resistance, causing a rapid voltage drop and reduced capacity.
- Analogy: “At low temperatures, the battery’s ‘stamina’ diminishes quickly, similar to how people tire faster in freezing environments.”
High Temperatures (e.g., 45°C)
The battery shows relatively stable performance under higher temperatures. However, prolonged exposure can accelerate aging and degrade long-term capacity.
- Analogy: “Running in warm conditions may feel easier, but excessive heat can harm overall health.”
What Are Temperature Rise Curves?
A temperature rise curve tracks the heating behavior of a battery, showing how its temperature changes during discharge. It is a vital tool for understanding how different C rates and thermal conditions influence battery safety and performance.
Metaphorical Explanation
Think of boiling water: When you turn up the heat on a stove, water heats up faster. Similarly, at higher discharge rates, the battery heats up more quickly. The temperature rise curve captures this heating process, acting like a thermometer for the battery’s performance.
Analysis of Temperature Rise Curves at Stable Temperatures
0.2C (Low C Rate)
- Minimal temperature increase throughout the discharge, barely noticeable.
- Practical Insight: Ideal for low-power, long-duration applications like energy storage systems or backup batteries, where heat generation is negligible.

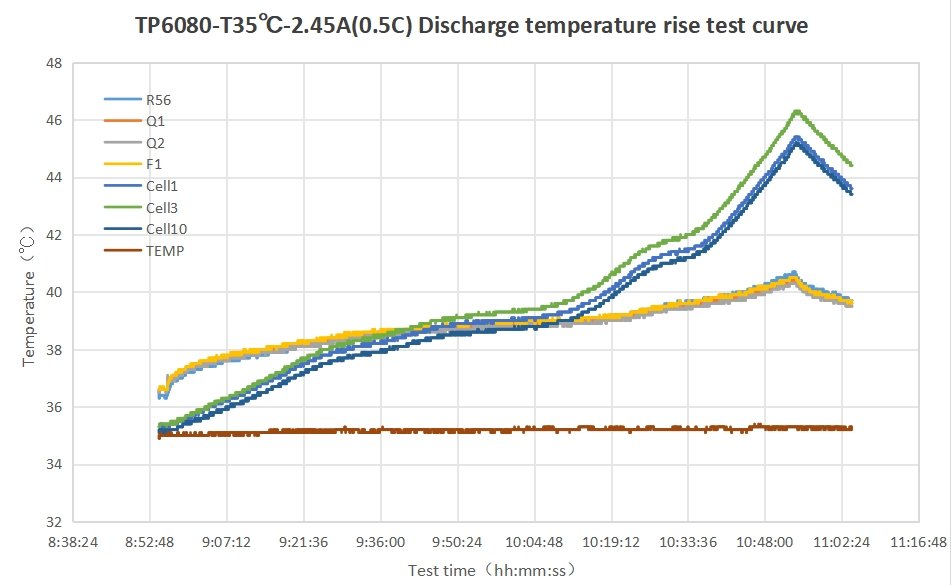

0.5C (Moderate C Rate)
- Gradual temperature increase, stabilizing at a lower level, indicating controlled heat generation.
- Practical Insight: Suitable for low-load applications where thermal stability is a priority, such as light-duty e-bikes.
1C (Standard C Rate)
- Noticeable temperature increase, reaching a moderate peak.
- Practical Insight: Perfect for balancing runtime and power, commonly seen in general-purpose devices and commuter e-bikes.
2C (High C Rate)
- Rapid and steep temperature rise, peaking at higher levels, reflecting the heat generated during high-energy demand.
- Practical Insight: Best for high-power applications requiring short bursts of energy, such as performance e-bikes or other power-hungry devices. However, robust thermal management systems are crucial to prevent overheating.
Comparison Table: Temperature Rise Behavior at Different C Rates
| C Rate | Temperature Rise Behavior | Peak Temperature | Practical Application | Thermal Implications |
| 0.2C | Minimal temperature increase, almost flat curve. | ~35–37°C | Long-duration applications like energy storage or backups. | Negligible heat generation, low risk of overheating. |
| 0.5C | Gradual temperature increase, stabilizes at lower level. | ~38–40°C | Low-power devices and light-duty e-bikes. | Controlled heat generation, suitable for stable operations. |
| 1C | Noticeable temperature increase, reaches a moderate peak. | ~42–45°C | General-purpose devices and commuter e-bikes. | Moderate heat generation, manageable with standard cooling systems. |
| 2C | Rapid and steep temperature rise, peaks at higher levels. | ~48–55°C | High-performance e-bikes or power-hungry applications. | Significant heat generation; requires advanced thermal management. |
Why Are These Curves Important?
Safety
- “The temperature rise curve acts like a ‘thermal alarm’ for the battery—excessive heat can lead to risks such as reduced lifespan or thermal runaway.”
- Curves from low-temperature tests highlight the impact of increased internal resistance, emphasizing the need for careful monitoring in extreme cold environments.
- High-temperature data serves as a guide to ensure batteries don’t overheat during high-power discharges, crucial for safe operation.
Performance Optimization
- Discharge curves reveal how long a battery can sustain power delivery at various C rates, helping users choose the right battery for specific applications.
- For instance, e-bikes benefit from high C rate discharge for bursts of power, while energy storage systems prioritize stable, long-duration performance at low C rates.
R&D and Design
- Engineers use discharge and temperature rise curves to refine battery architecture, select materials, and optimize thermal management systems.
For example:
- Batteries designed for cold climates may use enhanced insulation.
- Batteries for high-power applications require advanced cooling mechanisms to prevent overheating during operation.
- By analyzing these curves, manufacturers can create safer and more efficient battery solutions tailored to specific industries.
Common Misconceptions and Clarifications
“Can batteries not work in low temperatures?”
- Misconception: Batteries stop working entirely in freezing conditions.
- Clarification:
- While low temperatures increase internal resistance and reduce discharge capacity, modern batteries often include heating systems or insulation to maintain functionality in freezing conditions.
- Example: Batteries in electric vehicles and e-bikes use pre-heating mechanisms to ensure reliable operation even at -10°C.
“Does higher temperature rise mean worse performance?”
- Misconception: Any temperature increase indicates poor battery performance.
- Clarification:
- A moderate temperature rise is expected, especially in high C rate batteries, as energy release generates heat.
- Effective thermal management ensures that even high-temperature scenarios remain within safe operating limits without compromising performance or lifespan.
“Is a flatter discharge curve always better?”
- Misconception: Flat discharge curves are universally superior.
Clarification:
- A flatter curve, indicating steady voltage, is ideal for long-duration applications like energy storage.
- Dynamic curves, where voltage drops rapidly under high C rates, are beneficial for applications requiring bursts of power, such as e-bikes or high-performance robotics.
Conclusion and Future Outlook
Discharge curves and temperature rise curves serve as the heartbeat of battery performance, revealing how energy is released and how heat is managed. Understanding these curves allows for better battery design, safer operation, and optimized performance across various applications, from e-bikes to energy storage systems and robotics.
With the advent of emerging technologies like solid-state batteries, advanced cooling systems, and AI-driven thermal management, the characteristics of these curves may evolve. Solid-state batteries, for instance, promise flatter discharge curves with lower temperature rises, enhancing both safety and efficiency. Intelligent systems could actively adjust battery parameters in real-time, ensuring optimal performance even in extreme environments.
At Tritek, we are committed to ensuring the highest standards of performance and safety through rigorous testing of our battery packs. Our testing protocols include high- and low-temperature discharge tests, multi-C rate discharge evaluations, and detailed temperature rise analysis. These tests are crucial in optimizing the thermal management of our battery packs, guaranteeing stable performance even under extreme conditions. By integrating cutting-edge Intelligent Battery Management Systems (BMS) and leveraging our robust R&D expertise, we ensure that every Tritek battery pack meets the stringent requirements of safety, reliability, and efficiency.
As batteries continue to power the future of green energy and mobility, staying informed about technological advancements is crucial. With Tritek leading the way in battery innovation—through advanced thermal management, intelligent design, and comprehensive testing—we are excited to shape a sustainable future together. Keep an eye on the evolving world of battery technology—it’s an exciting journey ahead!
FAQs
What is the maximum capacity of a battery?
The maximum capacity refers to the total energy a battery can store, influencing how long it lasts at various discharge rates. At low rates (e.g., 0.2C), capacity is used efficiently, while at high rates (e.g., 2C), it depletes faster due to higher energy demands.
How do EV batteries handle temperature rise during discharge?
Electric vehicle batteries manage heat with thermal management systems, optimized materials, and real-time BMS monitoring. These features ensure safety and performance during high-power usage
