The battery C-rate is one of the most important specifications for evaluating battery performance, especially in high-demand applications like electric vehicles, e-bikes, energy storage systems, and industrial equipment. Understanding the C-rate helps you predict how fast a battery can charge or discharge, how much current it can safely handle, and how it will perform under different loads
Battery C-rate refers to the rate at which a battery is charged or discharged relative to its maximum capacity. A 1C rate means the battery discharges (or charges) its entire capacity in one hour, while higher C-rates (e.g., 2C, 3C) indicate faster charge or discharge times.
Whether you’re a battery engineer, product designer, or business sourcing battery packs, knowing the C-rate is critical to ensure safety, efficiency, and long service life. By the end of this article, you’ll not only grasp the fundamentals but also see practical test data from Tritek batteries demonstrating high C-rate capabilities.
Understanding Battery C-Rate: The Basics
The C-rate is a unit of measurement that describes the rate at which a battery is charged or discharged relative to its maximum capacity. It’s essentially a way to quantify the speed of energy transfer in or out of the battery.
C stands for “capacity,” typically measured in amp-hours (Ah) or milliamp-hours (mAh).
- 1C rate → The battery charges/discharges in 1 hour.
- 2C rate → The battery charges/discharges in 0.5 hours.
- 0.5C rate → The battery charges/discharges in 2 hours.
Example: If a battery has a capacity of 10Ah:
- At 1C, the current = 10A → Fully discharged in 1 hour.
- At 2C, the current = 20A → Fully discharged in 0.5 hours.
- At 0.5C, the current = 5A → Fully discharged in 2 hours.
This metric originated from lead-acid batteries but is now standard across lithium-ion, nickel-metal hydride (NiMH), and other chemistries. It’s not just about speed—higher C-rates can generate more heat and affect battery longevity.
How to Calculate Battery C-Rate
The general formula is:
C-rate = Charge or Discharge Current (A) ÷ Battery Capacity (Ah)
Example:
Assuming a 5Ah battery discharges at 10A:
C-rate = 10A ÷ 5Ah = 2C
Why C-rate Matters
Understanding C-rate is essential for:
- Battery Safety → Preventing overheating and thermal runaway.
- Performance Optimization → Matching battery capability with application needs.
- Longevity → Higher C-rates cause faster degradation if not designed properly.
- System Design → Ensuring chargers, controllers, and loads are compatible.
Types of C-Rates: Charging vs. Discharging
Charge C-rate
Specifies how quickly a battery can be charged without damage. Most li-ion batteries have a lower charge C-rate than discharge C-rate. Lithium-ion batteries might handle 5C discharge but only 1C charge.
Discharge C-rate
Specifies how quickly a battery can supply power. High-performance cells (like those in e-bikes or power tools) can handle higher discharge C-rates.
Continuous vs. Peak C-rate
- Continuous C-rate → Maximum current the battery can handle continuously without overheating.
- Peak (or Burst) C-rate → Short-duration maximum current, usually 5–10 seconds (e.g., 10C for 10 seconds in power tools).
C-rate for Different Battery Chemistries
Battery Type | Typical Continuous C-rate | Typical Peak C-rate |
---|---|---|
Lead-Acid | 0.2C–0.3C | 1C |
NiMH | 0.5C–1C | 2C |
Li-ion (NMC/NCA) | 1C–3C | 3C–10C |
LiFePO4 | 1C–2C | 3C–5C |
Continuous C-rate is generally rated at 25°C; actual performance varies with temperature and age.
How High C-rate Affects Battery Performance
Advantages:
- Higher power output
- Shorter charge times
- Better performance in demanding applications
Disadvantages:
- Higher heat generation
- Faster capacity degradation if not managed
- Requires advanced BMS and thermal management
Application Examples
Application | Required C-rate |
---|---|
E-bikes | 1C–2C |
Power tools | 5C–15C |
Electric vehicles | 2C–5C |
Energy storage (ESS) | 0.2C–0.5C |
Drones | 10C–30C |

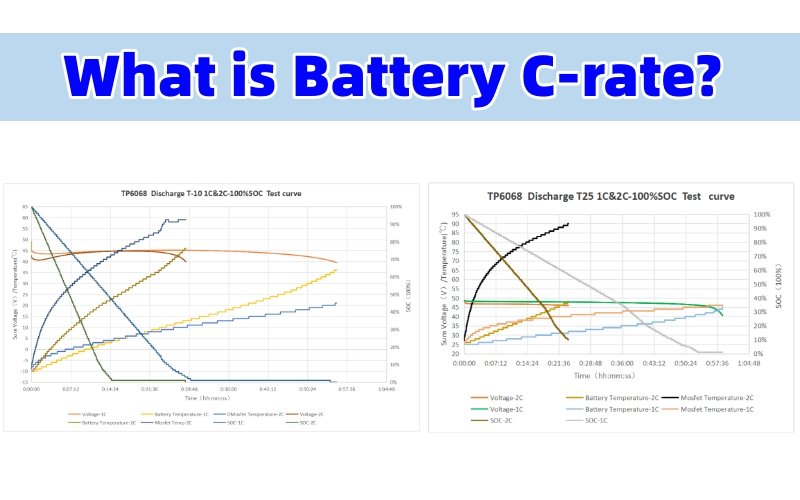

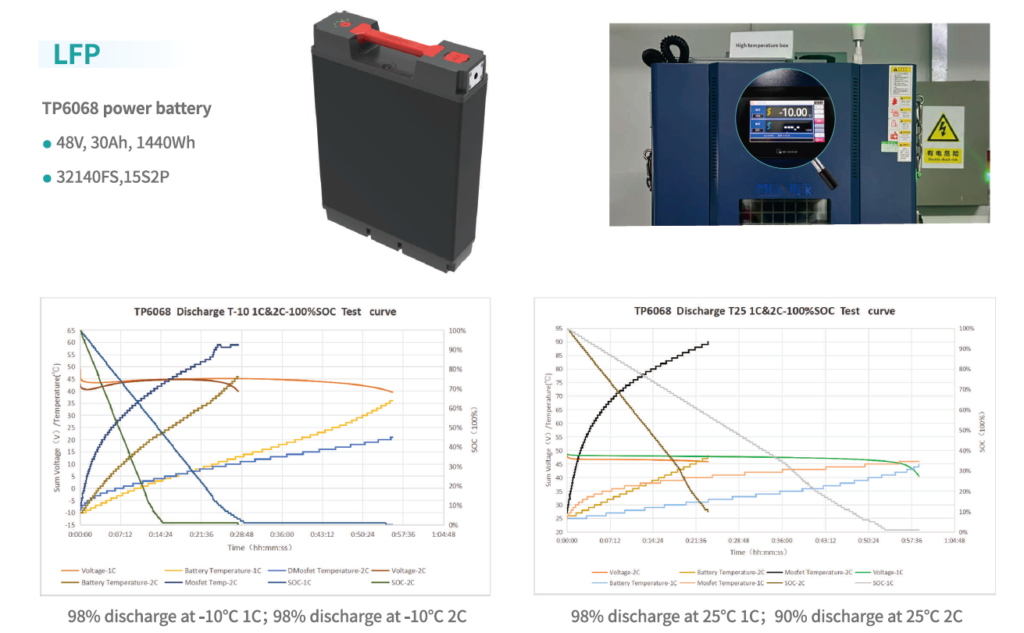

Tritek’s High C-rate Discharge Test (Example: 48V 30Ah Pack at 1C & 2C)
At Tritek, all of our lithium battery packs are engineered to deliver stable performance even under high C-rate discharge, thanks to premium-grade cells, efficient thermal management, and our intelligent BMS.
In one of our benchmark tests, we evaluated the same battery (48V 30Ah) in a T25°C environment at both 1C and 2C continuous discharge rates, starting from a fully charged battery at 100% SOC.
Test Highlights:
Voltage stability
- At 1C, voltage remained steady around 48V throughout most of the discharge.
- At 2C, voltage stayed above 46V until SOC dropped below ~35%, proving strong load-handling capability.
Temperature control
- Battery temperature rose moderately, peaking at ~45°C (1C) and ~48°C (2C) — well within safe limits.
- MOSFET temperature reached ~46°C at 1C and ~90°C at 2C, over-temperature protection triggered.
SOC behavior
- At 1C, discharge lasted about 1 hour.
- At 2C, discharge completed in about 30 minutes, consistent with theoretical expectations.
Conclusion: 98% discharge at 25°C 1C, 90% discharge at 25°C 2C
Result: This test demonstrates that Tritek battery packs maintain low thermal rise, stable voltage output, and predictable SOC decline even at 2C continuous discharge. This performance makes them ideal for demanding applications such as electric two-wheelers, cargo bikes, utility vehicles, and other power-intensive light electric vehicles.
FAQs
Why doesn’t my battery deliver the same capacity at 2C vs. 0.5C?
Due to internal resistance, batteries rarely output the identical amount of energy at different C-rates—higher currents reduce usable capacity.
What is considered a slow discharge rate, and why is it used?
A slow discharge rate, such as 0.5C or lower, helps extend cycle life and keeps the battery cooler during operation.
Why do some manufacturers provide capacity offsets in specifications?
Manufacturers provide capacity offsets to account for performance differences under various operating temperatures, loads, and C-rates.
What is considered a reasonably good capacity reading for a battery receiving a 1C discharge?
A reasonably good capacity reading for a battery receiving a 1C discharge typically exceeds 95% of its rated capacity under optimal conditions.
What does “hour discharge” mean in battery specifications?
An “hour discharge” indicates how long a battery can sustain output at a certain C-rate — for example, a 1C rate typically results in a one-hour discharge, while 0.5C would last about two hours.
What should I consider when a battery receiving a high C-rate discharge over a longer period?
When a battery receiving a high C-rate discharge over a longer period, ensure it is commonly rated for sustained performance to avoid overheating and capacity loss.
