Battery voltage is a fundamental concept in the world of energy storage and power systems. Whether you’re using a smartphone, driving an electric vehicle, or installing solar panels, voltage is a key indicator of how much electrical pressure a battery can provide. Understanding battery voltage is crucial for ensuring proper performance, compatibility, and safety across various applications.
Battery voltage is the measure of electrical potential difference between a battery’s terminals, determining how much force is available to move electrons through a circuit. It affects the battery’s ability to power devices, indicates the state of charge, and ensures safe and efficient operation.
From powering your smartphone to driving electric vehicles, battery voltage is the invisible force behind modern technology. In this ultimate guide, explore everything from the basics to advanced concepts—perfect for enthusiasts, engineers, or anyone curious about batteries.
Understanding Battery Voltage
Definition
Battery voltage refers the electrical potential difference between a battery’s positive and negative terminals, measured in volts (V). It represents the force that drives electric current through a circuit, enabling devices to function properly.
Analogy
Think of voltage as water pressure in a hose. Just as higher pressure pushes more water through the hose, higher voltage pushes more electrons through a circuit, providing the energy needed to power devices.
Different Types of Battery Voltage (OCV, Nominal, Load)
- Nominal Voltage: Average voltage during normal discharge. (e.g., 3.7 V for a typical Li-ion cell)
- Open-Circuit Voltage (OCV): Also called resting voltage, is the voltage measured when a battery is disconnected from any load or charger. It provides an accurate snapshot of the battery’s state of charge because no current flows, preventing voltage drops caused by internal resistance.
- Load Voltage: Voltage while the battery is powering a device.
- Charging Voltage: Voltage applied during the charging process.
- Cutoff Voltage: Minimum voltage before the battery should stop discharging to avoid damage.
Normal Voltage Ranges for Common Batteries
Battery voltage varies by type and chemistry. This table shows how much voltage different types of batteries typically deliver.
Battery Type | Fully Charged Voltage | Discharged Voltage | Typical Applications | |
|---|---|---|---|---|
Alkaline (AA/AAA Battery) | 1.5V | ~1.5V | ~1.0V | Flashlights, toys |
Lead-Acid | 2.0V (per cell) | ~2.1V | ~1.75V | Automotive, UPS, solar power systems |
Lithium-Ion (single cell) | 3.7V | ~4.2V | ~3.0V | Smartphones, EVs |
NiMH | 1.2V | ~1.4V | ~1.0V | Rechargeable devices, hybrid vehicles |
NiCd | 1.2V | ~1.4V | ~1.0V | Power tools, emergency lighting, medical equipment |
Voltage changes with the state of charge (SOC). For example, a lithium battery at 50% SOC might read ~3.6V.
How Voltage is Produced in Batteries
Batteries generate voltage through chemical reactions. A typical battery consists of:
- Anode: The negative electrode (e.g., zinc in alkaline batteries, lithium in lithium-ion batteries).
- Cathode: The positive electrode (e.g., manganese dioxide in alkaline batteries, lithium cobalt oxide in lithium-ion batteries).
- Electrolyte: A medium that allows ions to move between electrodes.
- Separator: Prevents direct contact between anode and cathode.
Voltage vs. Current vs. Power
- Voltage (V): Electrical pressure pushing electrons through an electrical circuit. Voltage drives the flow of electricity through the circuit by creating an electrical potential difference.
- Current (A): The flow rate of electrons (amperes).
- Power (W): The rate of energy delivery, calculated as Power = Voltage × Current (P = V × I). Knowing the voltage and current tells you how much power a battery can supply.
Analogy: Voltage is water pressure, current is the flow rate, and power is the amount of water delivered per second.
How to Measure Battery Voltage

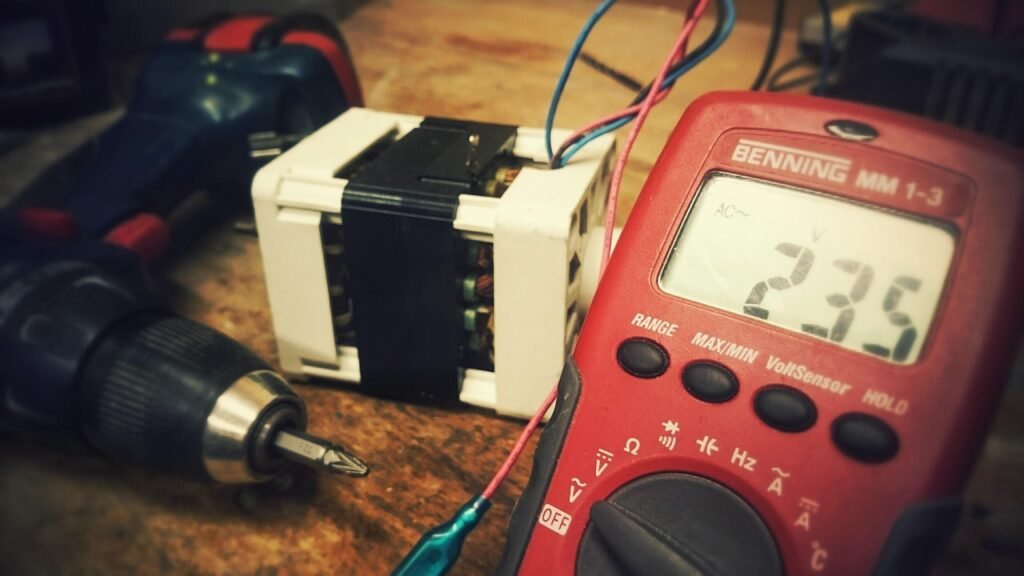

Multimeter:
- Set the multimeter to the appropriate DC voltage range (e.g., 20V for a 12V battery).
- Connect the red probe to the battery’s positive terminal and the black probe to the negative terminal.
- Read the voltage on the display. For example, a fully charged 12V lead-acid battery should read ~12.6V.
BMS (Battery Management System): Provides real-time voltage with more context.
Battery Configurations: Series and Parallel
Series Configuration
Connecting batteries in series increases voltage while keeping capacity (amp-hours) the same. For example: Two 12V batteries in series = 24V total.
Parallel Configuration
Connecting batteries in parallel increases capacity while keeping voltage the same. For example: Two 12V, 100Ah batteries in parallel = 12V, 200Ah total.
Configuration | Voltage Effect | Capacity Effect | Example |
|---|---|---|---|
Series (S) | Increases voltage | Capacity stays the same | 2 × 12V batteries = 24V total |
Parallel (P) | Voltage stays the same | Capacity increases | 2 × 12V 100Ah batteries = 12V, 200Ah total |
Battery Voltage Safety Tips You Must Know
Risks of High Voltage
Per OSHA (OSHA Electrical Safety Standards), voltages above 50V can be dangerous, potentially causing:
- Burns
- Cardiac arrest (currents ≥10mA can disrupt heart rhythm)
- Muscle contractions or injuries
Safe Handling
- Use insulated tools and gloves when working with high-voltage batteries.
- Avoid short-circuiting terminals.
- Store and dispose of batteries properly to prevent fires or leaks.
Common Misconceptions About Battery Voltage
Myth: Higher voltage always means more power.
Truth: Power depends on both voltage and current (P = V × I).
Myth: Voltage alone indicates battery health.
Truth: Voltage must be considered with capacity and internal resistance.
Myth: All batteries with the same voltage are interchangeable.
Truth: Chemistry and capacity differences affect compatibility.
FAQs
How is car battery voltage measured?
Car battery voltage is measured using a digital multimeter. Connect the red probe to the positive terminal and the black probe to the negative terminal. A fully charged battery typically reads around 12.6 volts when not under load.
Which battery technology is ideal for backup power systems?
For backup power systems, lithium-ion is a popular battery technology due to its long cycle life, efficiency, and compact size compared to conventional lead acid batteries.
How many volts does a fully charged car battery have, and why does it matter?
A fully charged car battery typically reads 12.6 to 12.8 volts when the engine is off. During operation, the alternator may raise the system to about 13.7 to 14.7 volts. Monitoring voltage levels is important because lower voltage can signal a dead battery or a failing battery system, while overcharging can reduce battery life.
Glossary
Voltage: Electrical potential difference, measured in volts (V).
Current: Rate of electron flow, measured in amperes (A).
Power: Energy delivery rate, measured in watts (W).
State of Charge (SOC): Percentage of a battery’s remaining capacity.
Open-Circuit Voltage (OCV): Voltage measured with no load connected.
Internal Resistance: Resistance within a battery affecting voltage under load.
