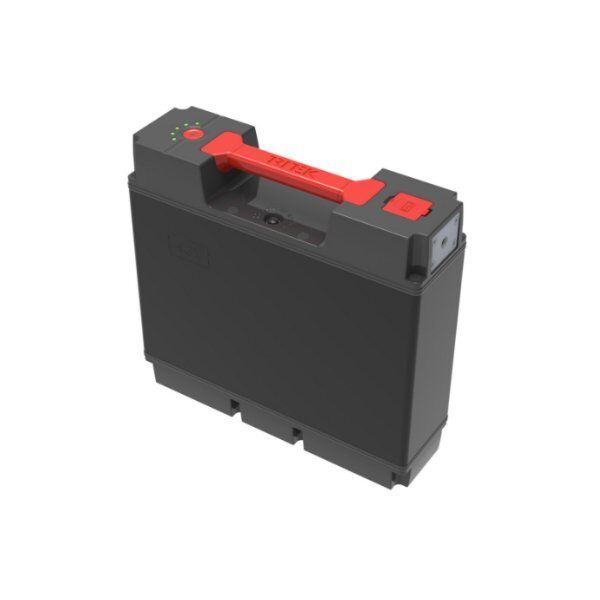

i Series 48V LFP eCargo Bike Battery TP6087
IP67, Longer cycle life with LFP chemistry, support hot swapping connection, 2-11 batteries in parallel, support regenerative braking
The i Series 48V LFP eCargo Bike Battery TP6087 delivers 720Wh with an LFP 15S1P configuration, ideal for motors up to 1000W and speeds of 25-40km/h. Its IP67 rating, hot-swap capability, and longer cycle life make it perfect for eCargo applications. It supports parallel connection (2-11 batteries) and regenerative braking for improved efficiency.
📋Key Features
🛡️Safety
✅Top Cell only: No fire, no explosion!
✅Pre-charge and pre-discharge protection: No spark, adjust current&voltage automatically, surge current protection!
✅Excellent thermal rise mangement: Longer lifespan, greater safety!
- We optimize the busbar, nickel pins, and cell layout to manage the thermal rise of cell, critical components, and pack.
- 5 integrated NTC to monitor cell and MOSFET temperature
✅BMS and APP: Intelligent and safe BMS battery guard!
- Cutting-edge Innovation: Over 90% test coverage for accurate battery monitoring
- Dual Protection: Robust hardware and firmware dual safeguards
- Precise SOC Management: Accurate insights into battery capacity
- Comprehensive protection: Overcharge, over-discharge, over-temperature, short circuit, etc
- Smart Monitoring and Communication Interface: Real-time battery status monitoring, calendar information, short circuit protection, CAN bus communication and HMI display
✅Waterproof IP67: No concern in any environments!
✅Global recognizition: ISO9001, IATF16949, UL, UN, IEC certified, meets market entry requirements globally
🌐Intelligence
✅Hot-swapping with automatic ID setting: No downtime, swap and Go!
✅Modular design: No wire soldering, compliant to new regulation EN 50604!
✅Multi battery solution: Up to 11 batteries in parallel, no range anxiety!
✅Flexible slip-in cage: Flexibility to mix and match without additional drilling, etc.
✅Two option cable: 2A affordable, 10A supply multi equip light, HMI, windscreen wiper, etc
✅Low power consumption: Lead to 3 years free of charge maintenance free!
- ≤50uA in deep sleep mode while keep battery log
- ≤13mA in run mode
🌡️Performance
- Charge temperature: 1-45℃
- Discharge temperature: -20-60℃
Connector Type of 48V LFP eCargo Bike Battery TP6087
- Anti-spark during vibration and while charger plug-in
- Supports reverse insertion
- Switch-on or wake-up function before power output
- Durable, capable of withstanding over 10,000 connection cycles.

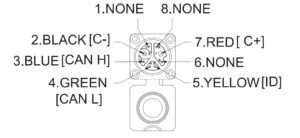

 | Charge | No. | Specification | |||||||
| PIN1 | / | |||||||||
| PIN2 | C- | |||||||||
| PIN3 | CAN H | |||||||||
| PIN4 | CAN L | |||||||||
| PIN5 | ID | |||||||||
| PIN6 | / | |||||||||
| PIN7 | C+ | |||||||||
| PIN8 | / | |||||||||

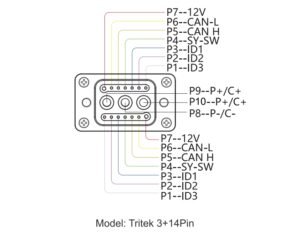

 | Discharge | No. | Specification | |||||||
| PIN1 | ID3 | |||||||||
| PIN2 | ID2 | |||||||||
| PIN3 | ID1 | |||||||||
| PIN4 | Switch | |||||||||
| PIN5 | CAN H | |||||||||
| PIN6 | CAN L | |||||||||
| PIN7 | 12V | |||||||||
| PIN8 | P-/C- | |||||||||
| PIN9 | P+/C+ | |||||||||
| PIN10 | P+/C+ | |||||||||

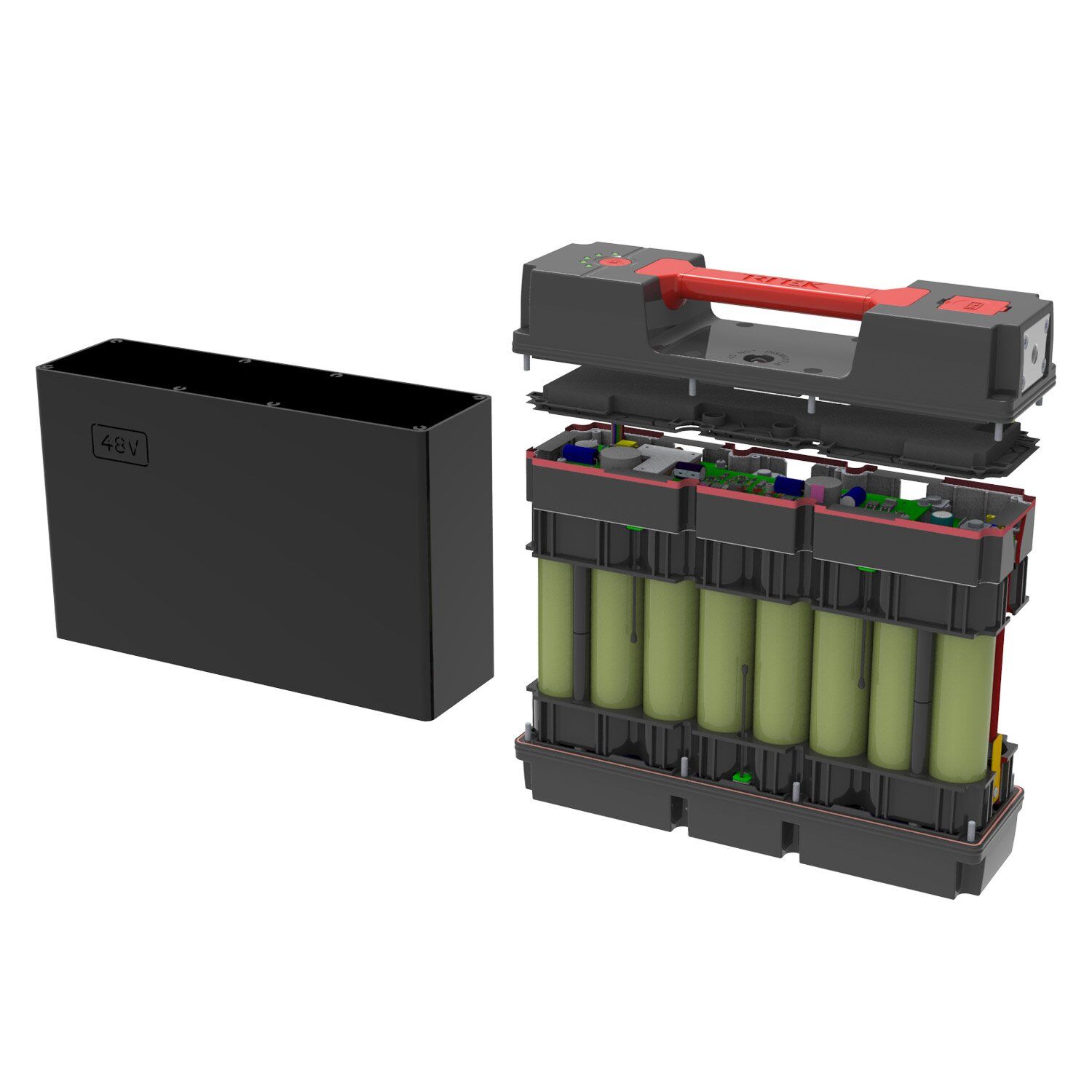

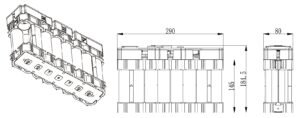

Cell Arrangement of 48V LFP eCargo Bike Battery TP6087
🏢Application:
For high-power applications: cargo bikes, motorcycles, energy storage systems, industrial, AGV, marine, agricultural, etc.
Aside from this product, we can provide customized battery packs according to the customer’s needs and specifications.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>Customized Battery Pack<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
4 good reasons
for choosing Tritek Battery for your electric mobility
An Intelligent battery with smart BMS, integrate with protocol applicable to the onboard applications, allowing you to communicate with the battery during riding.
A safe battery and full compliance with certificates in the lev industry, enabling you to use electric mobility worldwide with no restrictions.
We make every effort to supply sustainable power solutions. You can expect more than 500 cycles or 2.5 years shelf life.
We are your true battery partner because we care about efficient service. Our service center in Spain and future centers in Germany and the USA are on 24 hours standby for your convenience.
