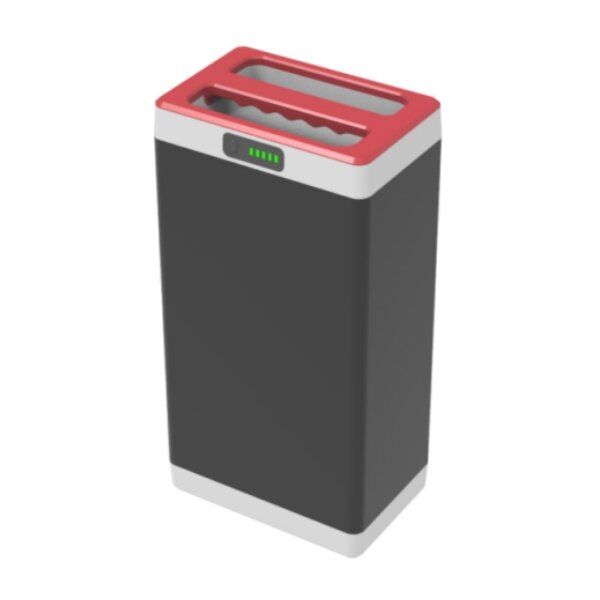

i Series 72V NCM Electric Motorcycle Battery TP6023
IP67, supports hot swap connection, 2-11 batteries in parallel, regenerative braking, support high-speed electric motorcycle
The i Series 72V NCM Electric Motorcycle Battery TP6023 offers 1440Wh with Samsung cells for motors 2000-3000W. It supports speeds up to 100km/h and handles 40A continuous discharge with peaks up to 66A. Featuring energy recovery capabilities and a durable IP67-rated for enhanced efficiency and protection.
📋Key Features
🛡️Safety
✅Tie-1 Cell only: No fire, no explosion!
✅Pre-charge and pre-discharge protection: No spark, adjust current&voltage automatically, surge current protection!

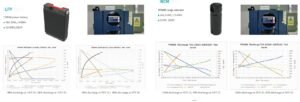

✅Excellent thermal rise mangement: Longer lifespan, greater safety!
✅BMS and APP: Intelligent and safe BMS battery guard!
- Cutting-edge Innovation: Over 90% test coverage for accurate battery monitoring
- Dual Protection: Robust hardware and firmware dual safeguards
- Precise SOC Management: Accurate insights into battery capacity
- Comprehensive protection: Overcharge, over-discharge, over-temperature, short circuit, etc
- Smart Monitoring and Communication Interface: Real-time battery status monitoring, calendar information, short circuit protection, CAN bus communication and HMI display
✅Waterproof IP67: No concern in any environments!
✅Global recognizition: ISO9001, IATF16949, UL, UN, IEC certified, meets market entry requirements globally
🌐Intelligence
✅Multi battery solution: Up to 11 batteries in parallel, no range anxiety!
✅Hot-swapping with automatic ID setting: No downtime, swap and Go!
✅Low power consumption: Lead to 3 years free of charge maintenance free!
- ≤50uA in deep sleep mode while keep battery log
- ≤13mA in run mode
🌡️Performance
- Charge temperature: 1-45℃
- Discharge temperature: -20-60℃

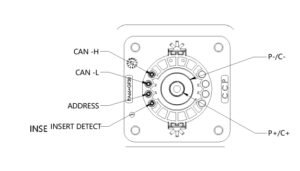

Connector Type of 72V NCM Electric Motorcycle Battery TP6023
 | Charge / Discharge | No. | Specification | |
| PIN1 | CAN H | |||
| PIN2 | CAN L | |||
| PIN3 | ADDRESS | |||
| PIN4 | INSERT DETECT | |||
| PIN5 | P+/C+ | |||
| PIN6 | P-/C- | |||

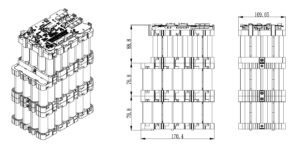

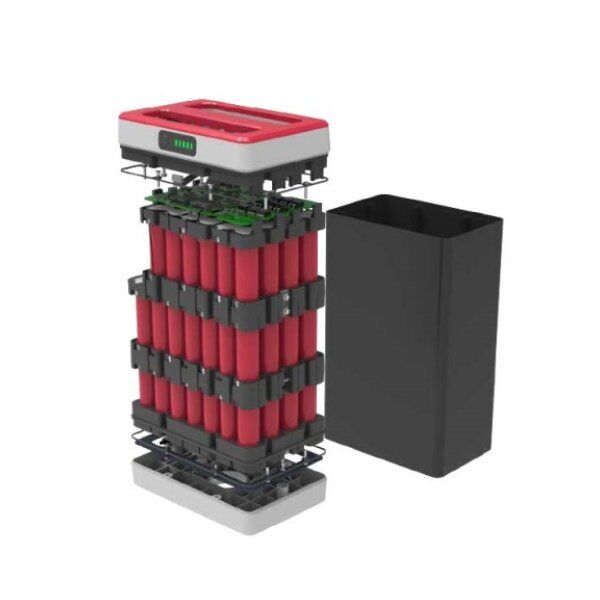

Cell Arrangement of 72V NCM Electric Motorcycle Battery TP6023
Aside from this product, we can provide customized battery packs according to the customer’s needs and specifications.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>Customized Battery Pack<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
4 good reasons
for choosing Tritek Battery for your electric mobility
An Intelligent battery with smart BMS, integrate with protocol applicable to the onboard applications, allowing you to communicate with the battery during riding.
A safe battery and full compliance with certificates in the lev industry, enabling you to use electric mobility worldwide with no restrictions.
We make every effort to supply sustainable power solutions. You can expect more than 500 cycles or 2.5 years shelf life.
We are your true battery partner because we care about efficient service. Our service center in Spain and future centers in Germany and the USA are on 24 hours standby for your convenience.
