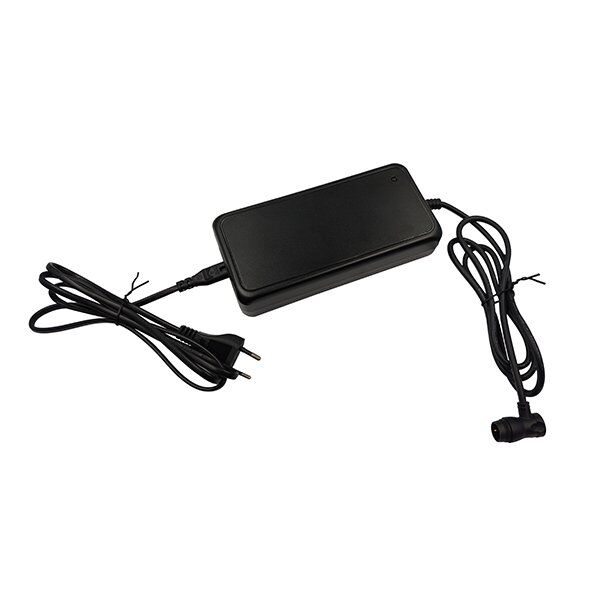

50.4-58.8V Li-ion Battery Charger TC1022

Fit for battery of 12-14S NCM battery and 14-16S LFP battery

Additional information

Input voltage

100-240Vac

Output voltage

50.4-58.8V

Charge current

4±0.3A (Current can adapt to 4-8A)

Rated output power

235.2W

Fit for battery of

12-14S NCM and 14-16S LFP battery

Input voltage range

90-264Vac

Power consumption (no load)

≤2W (average)

Input current (full load)

≤2.5A

Efficiency

≥92%

CAN matching resistor

120Ω

Material housing

Plastic shell

Cooling mode

Natural heat dissipation

Dimension

189x91x39.2mm

Certification

UL, CB, CE, UKCA

Discover more about 50.4-58.8V Li-ion Battery Charger TC1022

The 50.4-58.8V Li-ion Battery Charger TC1022 is optimized for NCM 12-14S and LFP 14-16S batteries, with an adaptable charge current ranging from 4A to 8A. It delivers 235.2W of power, ensuring efficient charging with an input range of 90-264VAC and ≥92% efficiency. Compact in size at 189x91x39.2mm, it features natural heat dissipation in a plastic housing and consumes ≤2W when idle. Certified with UL, CB, CE, and UKCA, the charger is a reliable solution for a wide range of Li-ion battery applications.

🛡️Protection Characteristics of Li-ion Battery Charger TC1022

  • Over-voltage turn-off protection
  • Over-current turn-off protection
  • Short-circuit turn-off protection
  • Reverse polarity turn-off protection
  • Timing turn-off protection
  • Charger over-temperature turn-off protection
  • Battery reverse current
  • Inrush current of output
  • CAN communication function
  • ID signal detection

🌡️Performance

  • Operating ambient temperature: 0℃ ~ 40℃
  • Storage ambient temperature: -20℃ ~ 65℃
  • Operating/storage ambient humidity: 5% ~ 90%

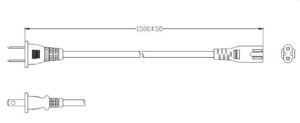

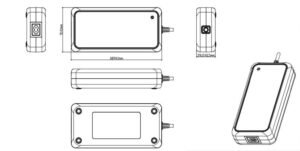

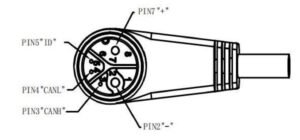

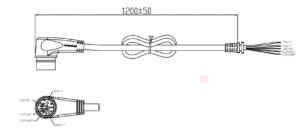

AC line schematic diagram DC power cord Schematic diagram of DC line polarity TC1022 Dimension

Aside from those products, we can provide customized chargers according to the customer’s needs and specifications.
