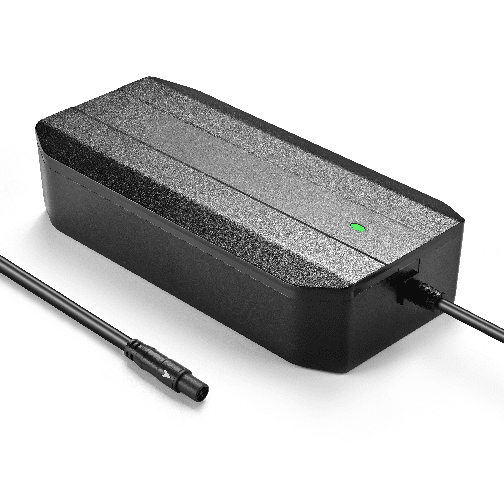

42V/54.6V Li-ion Battery Charger TC1033

Fit for battery of 10/13S NCM battery and 13/15S LFP battery

Additional information

Input voltage range

90-264Vac

Output voltage

42V /54.6V

Charge current

6.0±0.4A

Rated output power

328W

Fit for battery of

10S,13S NCM or 13S, 15S LFP

Power consumption (no load)

≤2W (average)

Input current (full load)

≤3.5A

Efficiency

≥93.5%

CAN matching resistor

120Ω

Material housing

Plastic

Cooling mode

Natural heat dissipation

Dimension

220*106*51mm

IP rating

IP40

Certification

CB,CE,FCC

Discover more about 42V/54.6V Li-ion Battery Charger TC1033

The 42V/54.6V Li-ion Battery Charger TC1033 is optimized for NCM 10/13S and LFP 13/15S batteries, with an adaptable charge current 6A. It delivers 328W of power, ensuring efficient charging with an input range of 90-264VAC and ≥93.5% efficiency. Compact in size at 220*106*51mm, it features natural heat dissipation in a plastic housing and consumes ≤2W when idle. Certified with CB, CE, and FCC, the charger is a reliable solution for a wide range of Li-ion battery applications.

🛡️Protection Characteristics of Li-ion Battery Charger TC1033

  • Over-voltage turn-off protection
  • Over-current turn-off protection
  • Short-circuit turn-off protection
  • Reverse polarity turn-off protection
  • Timing turn-off protection
  • Charger over-temperature turn-off protection
  • Battery reverse current
  • Inrush current of output
  • CAN communication function
  • ID signal detection

🌡️Performance

  • Operating ambient temperature: 0℃ ~ 40℃
  • Storage ambient temperature: -20℃ ~ 65℃
  • Operating/storage ambient humidity: 5% ~ 90%

Aside from those products, we can provide customized chargers according to the customer’s needs and specifications.
