In modern energy systems, battery packs and battery clusters are foundational components. However, understanding their differences is crucial for selecting the right solution for specific applications. Whether powering an electric vehicle, supporting a renewable energy setup, or designing storage systems, these terms define how energy is stored and utilized.
A battery pack is a complete system that includes multiple battery clusters, a Battery Management System (BMS), thermal management, and other auxiliary components. A battery cluster, on the other hand, is a subset of the battery pack, consisting of interconnected cells designed to boost voltage and capacity.
This distinction plays a critical role in optimizing system performance, ensuring safety, and managing costs effectively. Let’s delve deeper into their definitions, structures, applications, and how to choose between them.
Definitions
Battery Pack
A battery pack is a comprehensive energy storage solution. It consists of:
- Battery clusters or modules: Groups of interconnected cells.
- Battery Management System (BMS): Monitors and controls the pack’s performance, ensuring safety and efficiency.
- Thermal management systems: Maintain optimal operating temperatures.
- Electrical connectors and housings: Provide structural integrity and protection.
Battery packs are engineered to combine individual cells into a unified system capable of delivering the desired voltage, capacity, and functionality for a specific application. For instance, a battery pack in an electric vehicle (EV) must not only provide sufficient energy but also communicate with the vehicle’s control unit and manage thermal conditions.

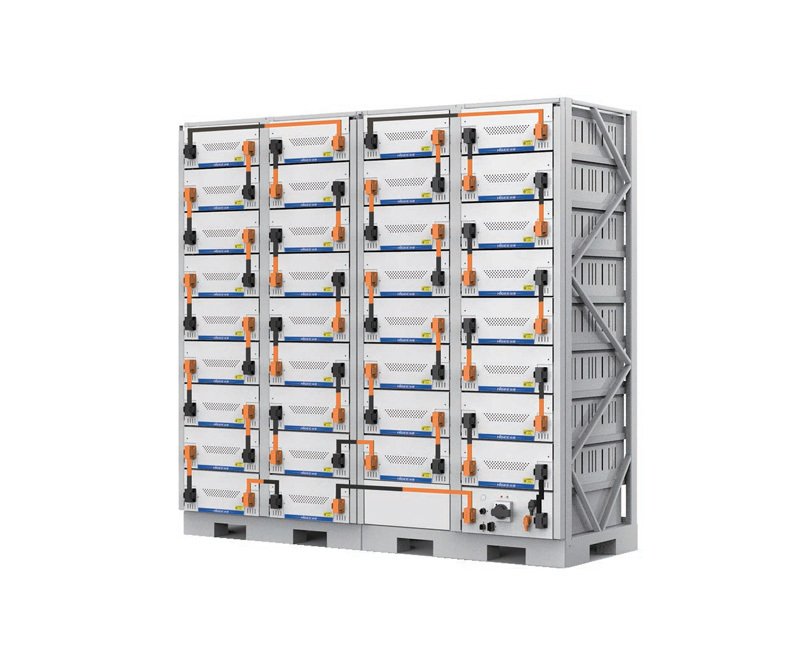

Battery Cluster
A battery cluster is a subsection within a battery pack. It serves as the intermediate structure between individual cells and the overall battery pack. Key characteristics include:
- Configuration: Formed by connecting multiple cells in series or parallel to achieve specific voltage and capacity levels.
- Uniformity: Ensures balance and reliability within the system, as mismatched clusters can degrade performance or pose safety risks.
- Modularity: Facilitates scalability, enabling clusters to be combined in various configurations to meet diverse energy requirements.
In essence, battery clusters are the building blocks of battery packs, providing both the scalability and the modularity necessary for modern energy solutions.
Structural Differences
Battery Pack
- Comprehensive Design: Encompasses all components necessary for operation, including clusters, BMS, connectors, and thermal systems.
- Versatility: Designed to suit specific applications, such as EVs, portable electronics, or renewable energy storage.
- Robust Enclosures: Typically housed in durable materials like aluminum to protect against environmental and mechanical stresses.
Battery Cluster
- Focused Functionality: Primarily responsible for combining cells to achieve desired electrical characteristics.
- Simpler Structure: Lacks the auxiliary systems found in a full battery pack but is critical for scaling up energy systems.
- Integration: Configured to work seamlessly within the larger pack, ensuring uniform performance.
Manufacturing and Design Focus
Battery Pack
Battery packs emphasize system-level integration, safety, and reliability. Key considerations include:
- Advanced Management Systems: Incorporating features like overcharge, over-discharge, and thermal protections.
- Optimized Design: Ensuring compactness while maintaining high energy density and durability.
- Compatibility: Designed to interface with devices or systems, such as an EV’s motor controller or a solar inverter.
Battery Cluster
Clusters focus on core energy storage and transfer, with considerations such as:
- Thermal Regulation: Preventing hotspots and ensuring even heat distribution.
- Electrical Balance: Managing inconsistencies between cells to prolong lifespan.
- Scalability: Enabling flexible configurations to adapt to different pack designs.
Applications
Battery Pack
Battery packs cater to diverse applications, including:
- Portable Devices: Smartphones, laptops, and wearables rely on compact, efficient battery packs.
- Electric Vehicles: From e-bikes to electric cars, battery packs deliver the energy needed for propulsion and auxiliary systems.
- Renewable Energy Storage: Residential and commercial solar setups use battery packs to store and manage energy.
Battery Cluster
Battery clusters are integral to larger-scale systems, such as:
- Grid-Level Storage: Supporting renewable energy integration and grid stability.
- Industrial Applications: Powering machinery or acting as backup systems for critical infrastructure.
- Large Electric Vehicles: Serving as the energy backbone for buses, trucks, and other heavy-duty EVs.
Key Considerations
When deciding between a battery pack and a battery cluster, the following factors are crucial:
- Energy Requirements: Battery packs are ideal for smaller, self-contained systems, while clusters are better suited for scalable, high-capacity setups.
- Cost Efficiency: Clusters offer greater modularity, potentially reducing high costs in large-scale applications.
- Safety and Longevity: Packs often include sophisticated BMS and thermal management, ensuring long-term reliability.
- Flexibility: Clusters provide adaptability for systems needing expandable storage capacity.
Conclusion
In summary, a battery pack is a complete, self-contained energy system, while a battery cluster serves as a modular component within that system. Each plays a vital role in modern energy solutions, offering unique advantages tailored to specific applications. Understanding their differences and functions ensures optimal system design, balancing performance, safety, and cost.
Whether powering a smartphone or an electric bus, the interplay between battery packs and clusters forms the foundation of today’s energy technologies, driving innovations that shape a sustainable future.
