Drone Battery: A Comprehensive Guide

Drone batteries are the lifeblood of modern drones, powering everything from recreational quadcopters to commercial UAVs. Their performance and reliability directly influence flight time, payload capacity, and operational efficiency, making them a critical component in logistics, agriculture, filming, and surveillance. As the drone market continues to expand, so does the need for advanced battery solutions that meet the demands of both hobbyists and professionals.

This comprehensive guide explores every aspect of drone batteries, from technical insights like types and performance metrics to practical advice on charging and maintenance. It also delves into business-focused topics, such as selecting the right manufacturer, understanding certifications, and leveraging custom battery options. Whether you’re a drone enthusiast or an enterprise looking to optimize your fleet, this guide offers valuable insights to keep your drones flying longer and safer.

Part 1: Understanding Drone Batteries

Types of Drone Batteries

Drone batteries are the backbone of unmanned aerial vehicles (UAVs), and selecting the right type is crucial for optimal performance. Below are the most common types:

Lithium Polymer Batteries (LiPo):

• Overview: Lightweight and powerful, LiPo batteries are the go-to choice for drones that require high energy density and rapid discharge rates.
• Pros:
  • High power output (40C, 50C, even 70C) for demanding applications.
  • Flexible form factor allows for custom shapes and sizes.
• Cons:
  • Sensitive to overcharging and improper handling.
  • Requires a balance charger for safe operation.
• Applications: Commonly used in racing drones and professional UAVs needing quick bursts of energy.

Lithium-Ion Batteries (Li-ion):

• Overview: Heavier but more stable than LiPo batteries, Li-ion batteries excel in longevity and safety.
• Pros:
  • Longer lifespan and more charge cycles.
  • Better energy density for extended flight times.
• Cons:
  • Lower discharge rates compared to LiPo batteries.
  • Less adaptable in terms of size and shape.
• Applications: Often used in consumer drones and larger UAVs requiring consistent energy output.

Lithium Iron Phosphate Batteries (LiFePO4):

• Overview: Known for their safety and durability, LiFePO4 batteries offer excellent thermal stability and a longer lifespan.
• Pros:
  • Enhanced safety due to lower risk of overheating or catching fire.
  • More charge cycles and resistance to deep discharges.
• Cons:
  • Lower energy density compared to LiPo and Li-ion batteries, which may affect flight time.
  • Heavier design limits their use in lightweight drones.
• Applications: Ideal for industrial drones, delivery UAVs, and applications where reliability and safety are critical.

Other battery types, such as Nickel-Metal Hydride (NiMH) and solid-state batteries, are less common but may find niche applications as technology evolves.

Battery Performance Metrics

Understanding key battery metrics is essential for optimizing drone performance:

• Capacity (mAh or Ah):
  Indicates how much energy a battery can store. Higher capacity generally means longer flight times but also increased weight.
• Voltage (V):
  Determines the power output of the battery. Drones typically use batteries with voltages ranging from 7.4V (2S) to 22.2V (6S), depending on the motor and application.
• C-Rating:
  Indicates the maximum discharge rate of the battery. A higher C-rating allows the battery to deliver more power quickly, for example, a 1C battery discharges its capacity in 60 mins, while a 10C battery can do so in 6 mins.
• Charge Cycles:
  Refers to the number of times a battery can be charged and discharged before its capacity significantly diminishes. LiPo and Li-ion batteries typically offer 300–500 cycles with proper care.
• Battery Efficiency (usually 0.8–0.9):
  Accounts for energy losses due to heat and inefficiencies in the drone’s power system. Typical efficiency values range from 80% to 90%.
• Drone Power Consumption (Watts):
  This is the total power the drone consumes during operation, including the motors, electronics, and payload. You can measure it using a wattmeter or refer to manufacturer specifications.

How to calculate the battery flight time of a drone?

To calculate the flight time of a drone based on its battery, you can use the following formula:

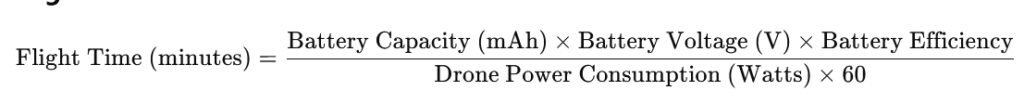

Flight Time Formula

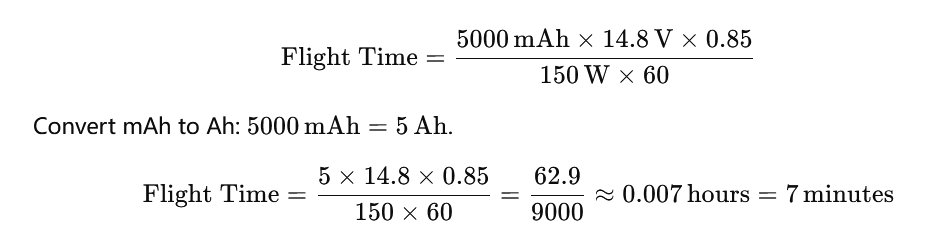

Example Calculation

• Battery Capacity: 5000 mAh (5 Ah)
• Battery Voltage: 14.8V (4S LiPo)
• Battery Efficiency: 0.85 (85%)
• Drone Power Consumption: 150 Watts

Practical Considerations

• Payload Weight: Adding payload like cameras reduces flight time.
• Flight Conditions: Wind, temperature, and flight mode (hovering, aggressive maneuvers) impact power consumption.
• Reserve Power: Always land the drone with at least 20% battery charge to prevent over-discharge.

Battery Safety and Risks

Proper handling and safety measures are vital for maintaining battery health and preventing accidents:

• Common Hazards:
  • Overheating: Excessive heat during charging or use can damage the battery or cause it to battery fire.
  • Swelling: Indicates internal damage and a potential safety risk. Swollen batteries should never be used.
  • Improper Usage: Overcharging, deep discharging, or using incompatible chargers can lead to irreversible damage.
• Safety Features:
  • Integrated Battery Management Systems (BMS) help monitor voltage, temperature, and charge levels.
  • Fireproof charging bags or containers offer an extra layer of protection during charging.
  • Adhering to manufacturer guidelines ensures safe and efficient battery usage.

Part 2: Choosing the Best Drone Battery Manufacturer

Factors to Consider

Selecting the right manufacturer is critical to ensure your drone batteries meet performance, safety, and reliability standards. Key factors to evaluate include:

• Quality Standards:Ensure the manufacturer adheres to rigorous quality assurance processes, such as ISO 9001 or IATF 16949 certifications, which indicate consistency and reliability in production. Tritek had passed ISO 9001 and IATF 16949.
• Production Capacity:Assess whether the manufacturer can meet your volume requirements without compromising quality. Tritek’s 3 SMT automatic production lines with 20000+ PCBAs daily output and 4 automatic lines with 4000+ PACKs daily output can fully meet the requirements.
• Research and Development (R&D) Capabilities:A strong R&D team is vital for innovative battery solutions. Tritek’s advanced R&D capabilities enable the development of customized intelligent batteries with cutting-edge technologies like parallel, 4G, GPS, and OTA updates.
• Reputation and Track Record:Look for a manufacturer with a proven history in the industry, positive customer reviews, and a portfolio of successful projects. Tritek’s 15+ years of experience providing intelligent power solutions for drones and other applications reinforces its position as a trusted partner.
• Customer Service:Reliable post-sales support and technical assistance are crucial. With branches in Germany, Spain, and the US, Tritek offers comprehensive customer support, from consultation to after-sales service, ensuring a seamless experience.

Certifications to Look For

Certifications ensure compliance with international safety, environmental, and performance standards. Key certifications include:

• UL Certification (Underwriters Laboratories):Verifies battery safety against fire and electrical hazards. Tritek’s products meet UL2271 standards, a mark of superior safety.

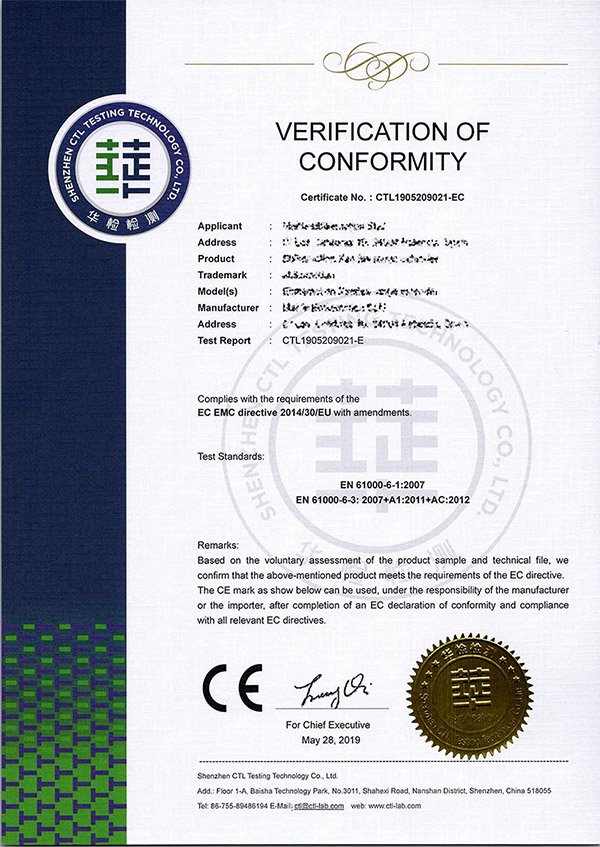

• CE Marking and RoHS Compliance:Indicates compliance with European safety and environmental standards. Tritek ensures all its batteries are environmentally friendly, adhering to RoHS and CE standards.
• UN38.3 Certification:Essential for air transport safety, which Tritek includes in its product portfolio.
• Regional Certifications:Depending on your location, look for additional certifications like FCC (USA), PSE (Japan), or BIS (India) to meet local regulations. Tritek can conduct relevant testing to ensure compliance with regional requirements, providing tailored solutions for global markets.

Part 3: Custom Drone Batteries

How to Get a Custom Drone Battery

Collaborating with a manufacturer for custom batteries involves several key steps:

• Identify Requirements: Clearly define your needs, including specifications like capacity, voltage, size, weight, connectors, and safety features.
• Select a Trusted Manufacturer: Choose a manufacturer with experience in custom battery solutions, such as Tritek, known for its expertise in designing intelligent, compact batteries with advanced features like OTA updates and 4G communication.
• Prototype Development: Work closely with the manufacturer to develop and test prototypes, ensuring they meet performance expectations.
• Iterative Improvements: Provide feedback during the testing phase to refine the design for optimal functionality.
• Final Production: Once satisfied with the prototypes, proceed with mass production tailored to your application.

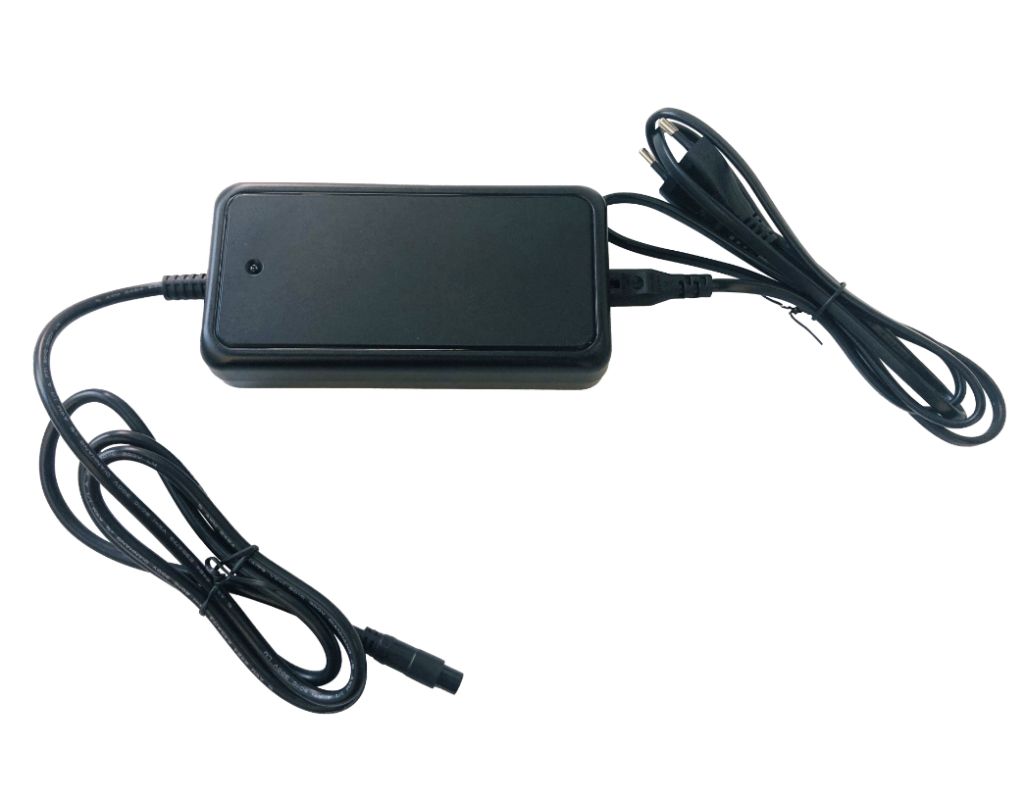

Part 4: Drone Battery Chargers

Types of Chargers

Drone battery chargers come in various types, each catering to specific drone models and battery chemistries:

• USB Chargers:
  • Features: Compact, lightweight, and portable.
  • Suitability: Best for smaller drones with built-in or micro-sized batteries.
  • Limitations: Typically offer slower charging speeds and limited functionality.
• Balance Chargers:
  • Features: Designed for charging LiPo batteries safely by ensuring all cells in a battery pack reach the same voltage (balance charging).
  • Suitability: Ideal for most consumer and professional drones, particularly those using multi-cell LiPo batteries.
  • Additional Capabilities: Often support multiple chemistries like LiPo, Li-ion, NiMH, and NiCd.
• Field Chargers:
  • Features: Portable chargers powered by external sources, such as car batteries or solar panels.
  • Suitability: Essential for drone operators working in remote locations without access to standard power outlets.
  • Advantages: Enable continuous operations during fieldwork or outdoor shoots.

Choosing the Right Charger

Selecting the appropriate charger is crucial for battery health, performance, and safety. Key considerations include:

• Compatibility:
  • Ensure the charger supports your drone’s battery type and voltage requirements (e.g., LiPo or Li-ion).
  • Using incompatible chargers may result in improper charging, reduced lifespan, or even safety hazards.
• Charge Rate:
  • Match the charger’s output with the battery’s recommended charge rate (e.g., 1C or 2C).
  • Tip: While higher charge rates reduce downtime, excessive rates can lead to overheating or damage.
• Safety Features:
  • Look for essential features like overcharge protection, temperature monitoring, short-circuit prevention, and automatic shut-off.
  • These features help prevent battery swelling, overheating, or fire risks.
• User-Friendly Interfaces:
  • Importance: A clear and intuitive user interface simplifies the charging process, minimizing errors.
  • Features to Look For: Transparent displays showing charge status, voltage levels, and other metrics.

By choosing the right charger, operators can ensure optimal battery health, extend service life, and maintain consistent drone performance. Tritek’s chargers, for instance, are equipped with multi-protection systems, automatic voltage/current adjustments, and compatibility with a range of battery types, making them reliable choices for diverse applications.

Part 5: Best Practices for Charging and Maintenance

Charging Procedures

follow these steps to ensure safe and efficient drone battery charging:

Step-by-Step Guide:

1. Inspect the Battery: Check for physical damage, swelling, or any irregularities before charging.
2. Choose the Right Charger: Use a charger compatible with your battery’s type, voltage, and capacity.
3. Prepare a Safe Charging Area: Ensure a well-ventilated, fireproof location, away from flammable materials.
4. Set the Correct Parameters: For LiPo batteries, use balance charging and set the appropriate charge rate (e.g., 1C).
5. Monitor Charging: Keep an eye on the charger and battery during the process to detect any signs of overheating or malfunction.
6. Remove Promptly: Disconnect the battery once fully charged to prevent overcharging.

Common Mistakes to Avoid:

• Using a charger not designed for your battery type.
• Charging damaged or swollen batteries.
• Leaving batteries unattended during charging.
• Exposing batteries to extreme temperatures.

Battery Maintenance Tips

Proper maintenance ensures longer battery life and consistent performance:

Storage Guidelines:

• Store batteries at room temperature, in a cool and dry environment.
• Keep batteries at 50-60% charge for long-term storage to prevent degradation.
• Use a fireproof container or LiPo-safe bag for added safety.

Regular Inspections:

• Check for signs of damage, swelling, or corrosion regularly.
• Clean the battery terminals to ensure proper connectivity.

Discharge Cycles:

• Avoid fully discharging LiPo batteries. Instead, recharge them when they reach 20-30% capacity.
• Periodically cycle the battery (discharge and recharge) to maintain its capacity.

Prolonging Lifespan:

Use only recommended charge rates to avoid overheating or reducing charge cycles.

Avoid exposing batteries to prolonged high temperatures or direct sunlight.

Troubleshooting Issues

Learn how to address common battery problems:

Swelling:

• Safely stop using the battery immediately.
• Place it in a fireproof container and follow local regulations for proper disposal.

Overheating:

• Allow the battery to cool down before recharging or using it.
• Check for potential causes like overcharging or high discharge rates.

Reduced Capacity:

• Conduct a few shallow discharge cycles to recalibrate the battery.
• If the issue persists, consider replacing the battery.

Adopting these practices ensures safer operations, maximizes battery lifespan, and minimizes the risk of unexpected failures. Tritek emphasizes proper maintenance with their batteries, offering smart monitoring systems that provide real-time diagnostics and reminders for optimal care.

Part 6: FAQs

Can I use a third-party charger for my drone battery?

It’s best to use a charger compatible with your battery type and manufacturer recommendations to avoid potential damage or safety risks.

Can I carry drone batteries on an airplane?

Yes, but check airline regulations. Generally, batteries under 100Wh are allowed in carry-on luggage, while larger batteries may require approval.

Why does my drone battery lose capacity over time?

Natural degradation occurs with usage and age, especially if the battery is exposed to high temperatures, overcharging, or improper storage.
